Description

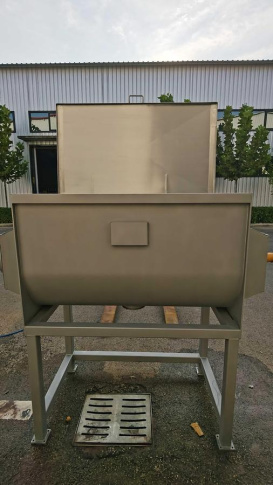

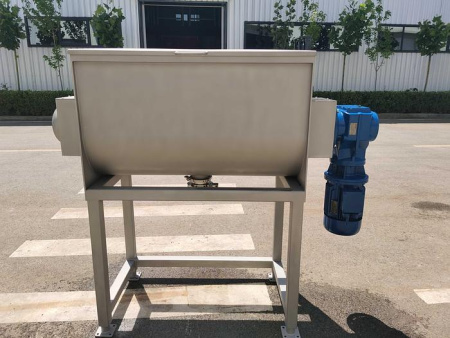

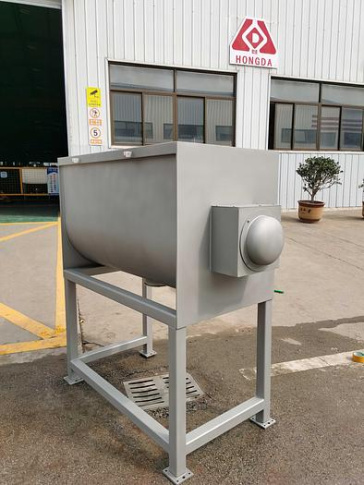

Sanpacsystems Hongda 25 Cubic Feet Ribbon Blender

Hongda 25 Cubic Feet Ribbon blender. Hongda Corp has been manufacturing process equipment, pressure vessels, and tanks for over 38 years in China. Our 300,000 sq. foot facility has over 300 employees and is recognized worldwide for its quality, dependability, and after-market support. Your equipment will be supported by our Ontario, California, warehouse staff, where we maintain spare parts and dispatch our service technicians. Our companys product line includes American Society of Mechanical Engineers (ASME-U and ASME UM) approved pressure vessels ranging in size from 1 to 30000 gallons (for all your registration requirements), Hongda has been authorized by 3A, PED, and ISO9001 and is CE approved.

Key Features

• Sanitary Specifications, All contact surfaces and welds are grounded, polished to RA25 sanitary grade.
• SUS 304 stainless steel material.

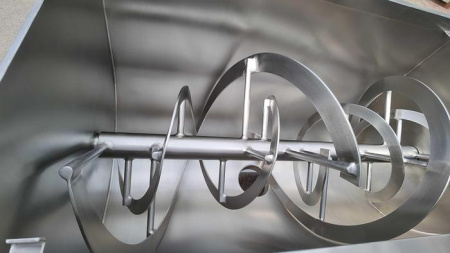

• Solid stainless steel main shaft.

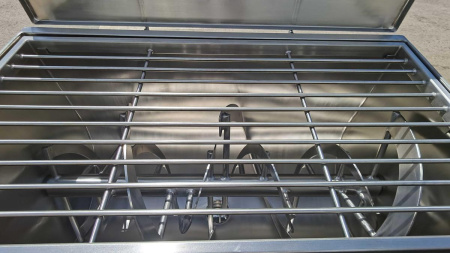

• Stainless steel lid and safety grate.
• 6 Inches centered discharge.
• Air purge and split ring design seal housing.

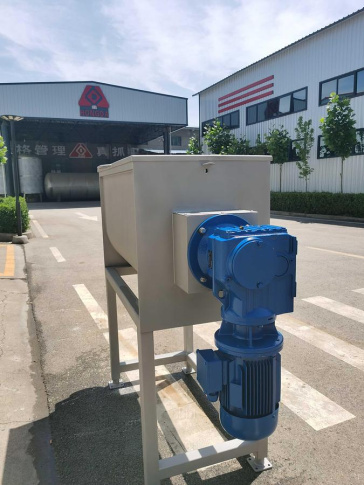

• Heavy Duty 7.5 HP three-phase, 230/460V UL-listed Drive. Current rating: 230V 19.5A; 208V 21.57A
• Controller with VFD to adjust the blending speed. Pre-wired using 230V three-phase power.
• Safety grate interlock.
• Emergency Stop.
• Overcurrent protection.
• Used for powder or/and liquid blending.

Technical Specifications

• Material: Stainless steel 304
• Safety: Safety grates, safety limit switches (prevent operation when grates are raised).
• Advantage: Direct drive, Solid shafts, Air Purge, Split ring seal housing.
• WARRANTY: 2 years
• Package size: 98 x 41 x 73 Inch
• Weight:2315 lbs
• Surface treatment: Inner side: #4 finish, outter: sandablasting

.



If you have any questions or concerns, contact a customer service representative today.
