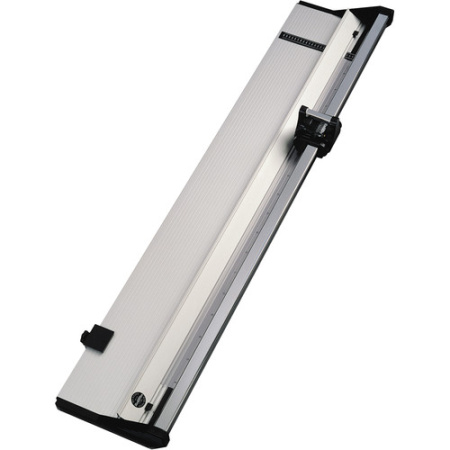

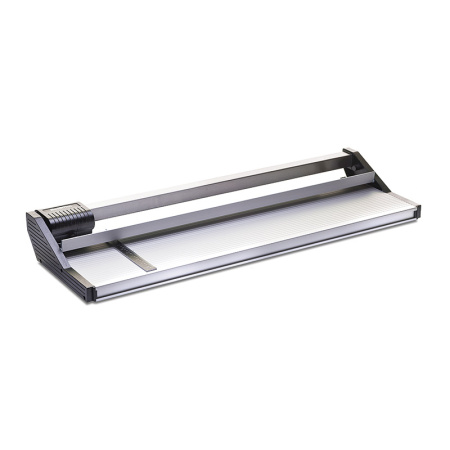

Rotatrim 26” (660.4 mm) Rotatrim Technical Cutter - ROT-60300 (OLD PART# T650)

Description

The perfect tool for heavy-duty jobs, featuring extra-long, extra-dense material for cutting. This top-of-the-line solid metal cutter combines the lightness of touch with industrial strength cutting power. Slice without effort through almost any flexible sheet material up to 4mm thick. These cutters are equally at home with thin films and foils due to the unique self-adjusting triple roller cutting head. Chromed 1-1/2” square steel guide rail and all metal construction eliminates distortion. Self-sharpening Sheffield tungsten steel cutting wheel and counterblade. Two-way cutting option by removing the cover plate. Transparent clamp strip and rubber gripper for firm, positive clamping action. A 10 1/2” rule and a squaring arm are installed onto an all-metal base. Extruded aluminum satin finish baseboard with parallel indents is strong and warp-free.

The Rotatrim Technical is identical in form to the DigiTech+ except that its design adds a triple roller mechanism to provide extreme down force for the cutting of heavy materials. It also features special Sheffield “tool” steel blades designed to offer enhanced durability under extreme operational loads. With high chromium content, these blades are exceptionally slow-wearing, even when cutting the most abrasive materials.

If you’re looking for an “all day, every day-use” extremely heavy-duty rotary trimmer that is capable of cutting the widest array of substrates and materials, from flexible to semi-rigid, this large-format trimmer (up to 100 inch) is the answer. The Technical is perfect for high-volume cutting and trimming of heavy-duty materials:

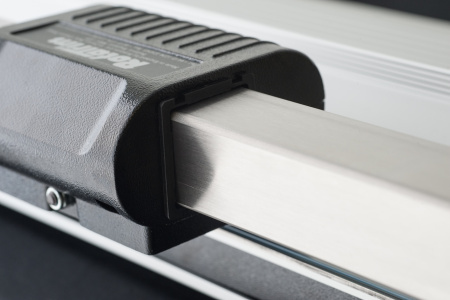

A single 1 1/2 Inch stainless steel guide rail completely eliminates head swivel..

All-metal construction (and extruded aluminum baseboard, end frames, and head) ensures robustness.

An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.

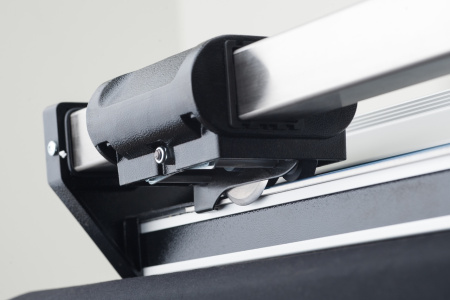

A triple roller mechanism provides extreme down force for the cutting of heavy materials (maximum cut depth of 4mm).

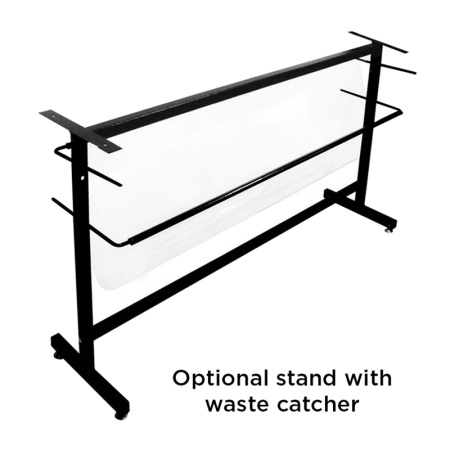

Optional Stand & Waste Catcher Package

This convenient quality steel stand that supports the Rotatrim Technical Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off-cuts.

Helpful Hints

The two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.

Perfect for Cutting Up to 4mm:

• Aluminum (.5mm)
• Banners
• Canvas
• Card
• Cellophane
• Cibachrome
• Cork
• Digital prints
• Encapsulations
• Engraving lam
• Flexographic plates (.067?)
• Floor graphics
• Foamex (1mm)
• Foil
• Inkjet paper
• Laminations
• Leather
• Lithoplate
• Magnetic Vinyl
• Masonite (2mm)
• MDF (2mm) Mount board
• Photo Paper
• Photo Film
• Polyester
• Polystyrene
• Posters
• Self-adhesive film
• Tissue Paper
• Veneers

FEATURES

• Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
• Triple roller mechanism
• ISO9001:2008 quality certified
• 5-year general warranty on all parts
• 100% made in England

SPECIFICATIONS

• Max Cutting Thickness: 0.15 Inch / 4 mm
• Max Cutting Length: Cuts Size 26 Inch / 660.4 mm
• Dimensions (L x W x H):40 W x 13 1/2 D x 7 H Inch

Warranty

All Rotatrim products have a one-year warranty except:

• Rotatrim cutting wheels
• Casters for lifters
• Electrics and batteries

DEMO VIDEOS ( T650 and T2500 Rotatrim Technical Cutter)

Rotatrim T650 Standard Technical Series


Rotatrim T2500 Technical Series
