Description

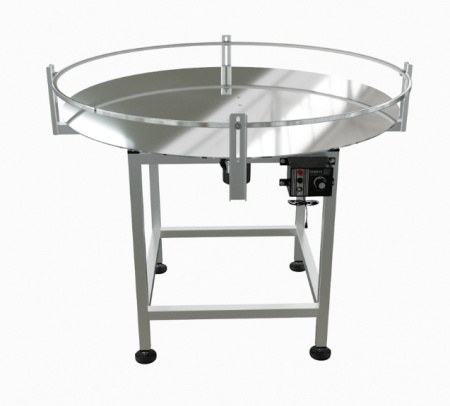

Turntables | Accumulating Accumulating Rotary Table 36" Diameter - 100%

Rotary Tables can be used to unscramble products and feed a conveyor, also as a buffer space to accumulate product until the downstream conveyor is ready for additional product or collection. Accumulating rotary tables are designed to collect filled containers from a filling line to prevent slowdowns by quickly removing the finished product from the conveyors during operation. Can be set for clockwise and counterclockwise rotation.

MAIN FEATURES

• Made in the USA with 100% Ul-certified components (we can support parts and service)
• Stainless steel open frame
• Adjustable leveling pads
• Disk thickness 1/8” (11 gages)
• Counter and clockwise
• Bodine dc drive for rotation speed control

SPECIFICATIONS

• Bodine DC Motor: 3/16 hp, 6 rpm, 350lb/in
• Machine Electrical Requirements: 115 volts / 1 ph / 60 hz
• Rotary Table Standard Size: 36 , 48 , 60 Inch (other sizes upon request)
• Height - Adjustable Height Floor to Top of Turntable Disk: 35 to 39 Inch
• Adjustable Guide Rail Height: 0 to 5 Inch
• Speed: 0 to 8 rpm

OPTIONAL FEATURES

• Tool-less bottle orienting guides
• Infeed table for hand packing applications or to push load containers onto rotation disc
• Locking casters
• Dual guide rails
• 4 Inch stainless steel guide rails
• Transfer plate for smoother container transition (side or straight mount)

WARRANTY

• 12 MONTHS (LIMITED WARRANTY)

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
