Description

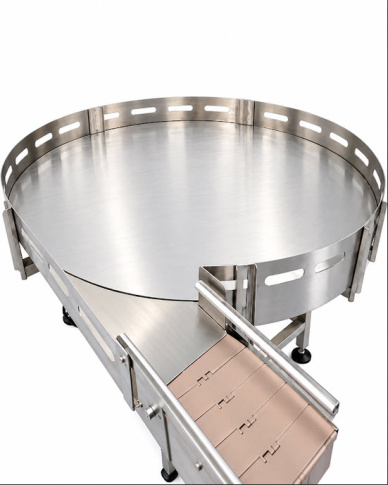

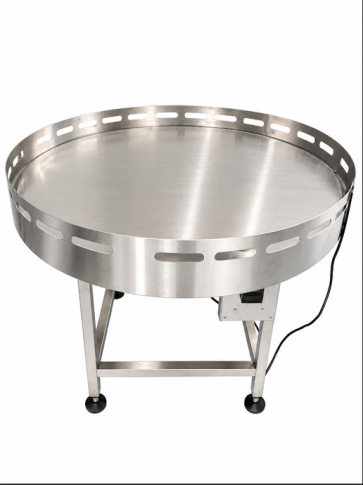

Accumulation Rotary Table 36 inches in Diameter in Stainless Steel

Rotary Tables can be used to unscramble products and feed a conveyor, also as a buffer space to accumulate product until the downstream conveyor is ready for additional product or collection. Accumulating rotary tables are designed to collect filled containers from a filling line to prevent slowdowns by quickly removing the finished product from the conveyors during operation. Can be set for clockwise and counterclockwise rotation.

MOTOR SPECIFICATIONS

• AC Gear motor
• Gear motor type: AC Gear motor
• Gear motor voltage: 120 Volt
• Max. Torque: 500.0 in.-lb.
• Gear motor Shaft Type: Single
• Gear motor Shaft Orientation: Parallel
• Rear Shaft Encoder/Pulse Generator Mounting: No
• Nameplate RPM: 6
• Gear motor Enclosure: Totally enclosed, Non-ventilated
• Gear motor Mounting Position All Angles
• Length Less Shaft 8-7/8"
• Reversible Shaft Output: No
• Overhung Load: 300 lb.
• Input HP 1/11
• Gear Ratio 264:1
• Full Load Amps 1.10
• Insulation Class F
• Thermal Protection: None
• Max. Ambient Temp. 40 Degrees C
• Gear motor rotation: CW/CCW
• Motor Type: Permanent Magnet DC
• Overall Length: 10-1/4"
• Keyway Size 9/50" Square x 1"
• Bearings: Ball and Needle on Case, Ball on Motor
• Lubrication: Grease-filled
• Brushes Externally Replaceable
• Finish Unpainted
• Gear Material: Hardened Steel
• Gear Type: Helical and Spur
• Gear Case: Die Cast Aluminum
• Seals: Lip Type on Input and Output Shaft
• Housing Material: Die Cast Aluminum
• Replacement Brushes: 6YHY6

ACCUMULATION ROTARY TABLE SPECIFICATIONS:

• Tabletop diameter: 36 Inches
• Material: frame made of stainless steel
• Disc: stainless steel 1/8 Inches thickness
• Adjustable height: up to 37 Inches h (from floor to disc); customization available
• Accumulating table maximum weight capacity: 800 lbs per sq ft.
• Stainless steel outer ring 4 inches high or rails
• Electrical requirements: 115 v

ADJUSTABLE SPEED DRIVE SPECIFICATIONS:

• Brand-Teco Westinghouse
• Technical Specs
• Model #: FM50-101-C
• Voltage: 120
• HP: 1
• Amps: 4.2

A variable frequency drive is an electronic device that allows you to start, stop, and control the speed of a three-phase motor. It is also a motor starter as it is equipped with overload protection.

Variable frequency drives now play an important part in major industry. Within the last 10 years, they have been perfected to control and vary the speed of 3-phase electric motors. You may have heard them referred to as adjustable-frequency drives, VFDs, or inverters.



WARRANTY

• 12 MONTHS (LIMITED WARRANTY)
