Description

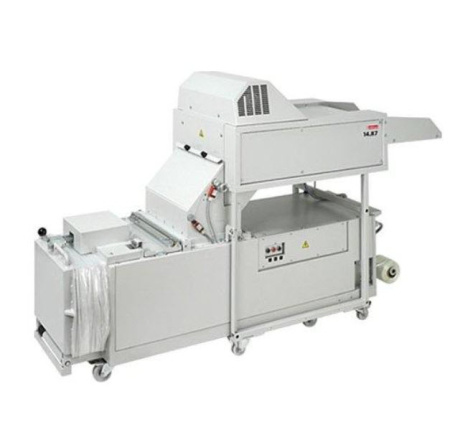

Intimus 14.87 Cross Cut Level P-3 Industrial Shredder + 870 Baler Combination (6 x 50 mm Shred Size) Item # 699924/475904

P-3 | Industrial paper shredder designed for high-performance in centralized applications, featuring an integrated baling press. It efficiently processes up to 120 sheets simultaneously, boasting an impressive throughput. 325 kg/h.

The Intimus 14.87 boasts a large feed table complete with an integrated conveyor belt, guaranteeing a smooth, secure, and efficient loading experience. It incorporates automatic start-stop-restart functionality and an automatic reverse motion control system to manage paper overload seamlessly. With its wide 440 mm input tray, this document shredder enables fast, convenient, and secure loading and effortlessly shreds stacks of paper, including stapled or paper-clipped sheets, crumpled paper, CDs, and credit cards in a single operation.

The shredded material is compressed into compact bales. The compaction process starts automatically as soon as the baler is filled with sufficient material. A ‘bale complete’ indicator interrupts the cutting process, and the bale can be removed via a push-button control. The bale can be tied twice for greater stability.

The reduced device width of 80 cm enables it to fit through most standard doors. There is an option for manual feeding directly into the baler. The Intimus 14.87 industrial model can be optionally equipped with an automatic oiler.

Featuring a robust feeding conveyor belt, a clear and intuitive control panel, and a low noise level of 61 dB(A), it operates at security level P-3 with a shredding speed of 300 mm/s.

Shredding material:

• Paper with staples and paper clips
• Crumpled paper
• CD / DVD / Blu-ray
• Plastic card
• Floppy disk

SHREDDER FEATURES:

• Particle size of 6 x 50 mm meets the P-3 security standard set forth in DIN 66399 (ISO/IEC 21964).
• Versatility in handling various paper materials, including loose, clipped, stapled, bound, or crumpled, as well as small amounts of plastic materials like credit cards, CDs, and floppy disks.
• Efficiently processes 110-120 sheets of 80 g/m² paper with a working width of 440 mm, ensuring swift and effective document processing at approx. 325 kg per hour throughput.
• Dimensions of 80 x 268 x 167 cm (WxDxH) allow for easy passage through most standard doors.
• Enhanced mobility facilitated by castors, accompanied by a robust metal housing.
• The shredded material is compacted into bales to reduce its volume by up to 70%.
• User-friendly operation with easily accessible control buttons and a lockable master switch.
• Induction-hardened solid steel cutting cylinders/shafts guarantee durability and a prolonged operational lifespan.
• Effortless document shredding facilitated by internal conveyor belt, dosage paddles, auto reverse, overload protection, bin full sensor, along with optional emergency stop bar and automatic oiler.

BALER FEATURES:

• Reduces scrap volume by up to 70%
• Bag or strap bales, depending on your needs
• Bales are ejected with the push of a button
• Baler has a separate opening for adding other materials for baling

SHREDDER SPECIFICATIONS:

• Area of application: Industrial
• Cutting size paper (mm x mm): 6 x 50
• Cutting type paper: Cross cut
• Security level ISO/IEC 21964 (DIN 66399): P-3 / T-31 / O-2 / E-23
• Shredding material: Paper with staples and paper clips, Crumpled paper, CD / DVD / Blu-ray, Plastic card, Floppy disk
• Waste disposal solution: Bale press
• Intake width (mm): 440
• Inlet/desk height (mm): 1.200
• Sheet capacity (80g/m²): up to 120
• Throughput: approx. 325 kg/h
• Cutting speed (80g/m²) mm/s: 300
• Continuous Running: yes
• Noise level (idle operation) dB(A): 61
• Nominal motor power (W): 4.000
• Motor protection device with thermal sensor: yes
• Power supply (V / Hz): 400 / 50
• Other voltages available: yes
• Product dimensions W x D x H (cm): 80 x 268 x 167
• Product weight (kg): 914
• Weight shredder (kg): 364
• Weight baler (kg): 550
• Control operation: Buttons
• Visual status indication for: Ready, Bin full, Door open, Material jam, Overheat
• Auto reverse: yes
• Internal conveyor belt: yes
• Dosage paddles: yes
• Overload protection: yes
• Safety features: Emergency stop bar
• Lockable master switch: yes
• Bin full sensor: yes
• Dust extractor: yes
• Expansion of the feed table: yes
• Castors: yes
• Parking brakes: yes
• Material machine housing: Metal
• Certificates / Listings: CE, UKCA
• Bale press: yes
• Press force of baler (kN): 80
• Bale weight (kg): 60 - 80

BALER SPECIFICATIONS:

• Model#: 475904
• Hydraulic Press: 8 Ton
• Power Supply: 220V/60Hz
• Weight: 1,696 Lbs.

DEMO VIDEO

Intimus 14.87




Note:This video shows an older version of the Intimus 14.87. Some knobs and dials have been changed on the new version. In terms of working capacity and mechanics, the version shown in the video is the same as the present model.
