Description

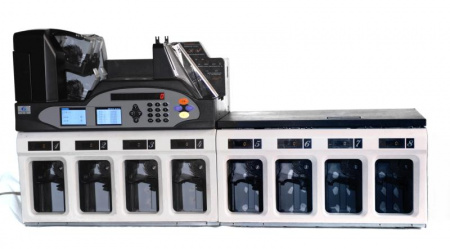

Ribao | DC-10800 8+2 Pockets Banknotes Fitness Counter and Sorter

FEATURES

• Adopted the cutting-edge CIS, DSP technology. Identification and control system use FPG +DSP structure, more CPU in processing.

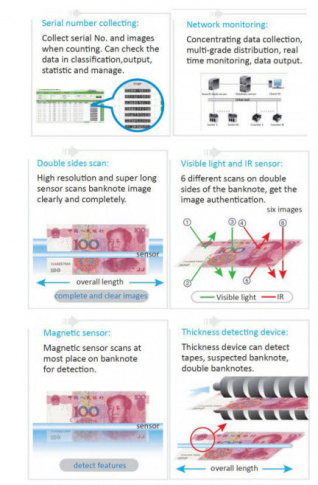

• Auto detect counterfeit banknote by using Light Image, IR Image, Spectrum Image, Magnetic Image, UV, Magnetic Ink, Thread Metal, IR Penetration, Multipoint Thickness Measurement, etc. Error code indicated and alarm sound when find fake banknote.
• Detect incomplete, damaged, holes, fold, pen marks, oil, overlapped, spliced, tape and double on the banknote.

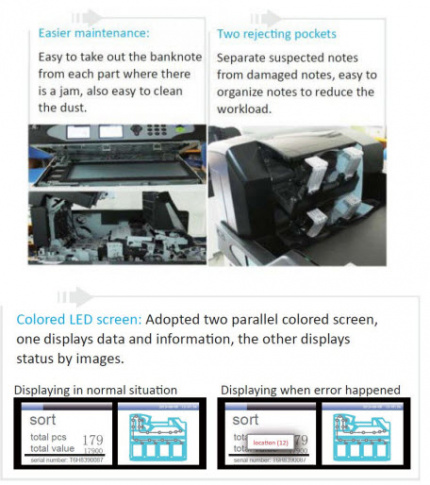

• Separate the suspected notes from damaged notes, easy to organize notes, reduce the workload
• Have many functions, such as counting, version sorting, orientation sorting, sorting banknote for ATM machine, adding, batching, serial number checking and output, connecting LAN etc. and Display the banknote number of every pocket separately.
• Adjustable sensitivity, auto storage, self checking after being switched and displaying the error code, restorable to default settings.
• Super LCD display, attachable to portable-type LED display.
• Software upgrading via internet or U disk.

SPECIFICATIONS

• Available currency: As your requirement
• Counting speed: 720-800 pcs/min
• Number of pockets: 1 Hopper, 8 stackers, 2 rejecting bill pockets
• Hopper capacity: 1200 pcs
• Stacker capacity: 500 pcs
• Rejecting bill capacity: 150 pcs
• Image-scanning-as recognition technology
• Adopted double sides high-speed image scanner
• Gray scale of image: 256 levels
• Optical definition: 200 dpi
• Artificial neural networks
• PC interface: USB 2.0, RS-232 serial port
• Rated Voltage: 220 V ±10% or as required
• Frequency: 50 Hz (±5%)
• Power: 450 W
• Rising temperature: 20 C
• Appearance dimension: 600 × 440 × 600 (mm) / 24 x 17 x 24 (in)
• Weight: 80kgs (176 Lbs)
