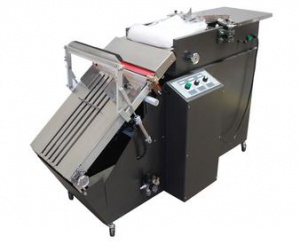

Drop Sealer | Preferred Pack PP-615 Gravity Drop Sealer

The Preferred Pack PP615 Drop Sealer can work with the PP402 Bag Opener in one compact, portable complete packaging solution. That is a separate item page. With the combo an operator simply loads a stack of header bags into the bag magazine on Bag Opener, a self- generating blower forces air into the bag for easy loading. Once filled, the bag is stripped forward and the next bag pops open. The operator simply allows the filled bag to slide down the Drop Sealer to a set of holding pins pre-adjusted for the bag length. A photo eye activates the pneumatically powered seal bar to close, sealing the bag. As the bag is sealed a cutting bar strips away excess material above the seal. The seal bar automatically opens and a jet of air clears away the scrap. The holding pins retract allowing the sealed package to slide off the machine then automatically return to the up position and the machine is ready for the next package.

MODEL PP615 DROP SEALER FEATURES

Will Seal up to 10 mil thickness including folds.

Flat band ribbon produces a 1/8 inch wide seal.

Independent seal temperature and seal time control (Dual Controls)

Instant Hand Wheel Adjustment for changing location of seal bag

Adjustable table depth and angles to accommodate most product sizes

Round Wire Cuts off excess bag

Pneumatic Seal Bar with Air Eject. This Air Jet blows scrap away.

Cycle Speed of 25 CPM or more, depending on size and bag thickness

OPTIONAL ITEMS

Machine widths up to 30 inches

Compression Plate eliminates trapped air

Wider Seal Width SPECIFICATIONS

SEAL WIDTH:	15 Inches
MAX JAW OPENING:	6 Inches
MAX BAG WIDTH:	20 Inches
PRODUCTION RATE:	Up to 25 CPM
VOLTAGE:	110 Volts 10 Amps
SHIPPING WEIGHT:	275 lbs.

Preferred Pack PP-615 Drop Sealer and PP-402 Bag Opene
