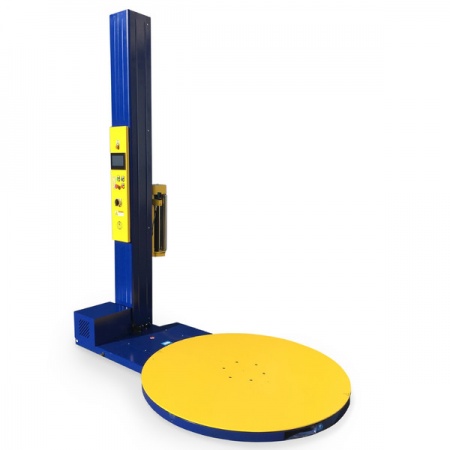

Pallet Wrapper | Ecospir EV Turntable Pallet Wrapping Machine

Turntable pallet wrapping machine, a simple and cheaper solution to meet your pallet wrapping requirements.

• Turntable diameter: 1500 mm
• Maximum weight of the load: 2000 kg
• Regulation of the turntable rotating speed controlled through inverter, with soft start and progressive arrival in the same starting position
• Turntable transmission by chain
• Turntable motor protected with a carter
• Maximal wrapping height: 2200 mm
• Regulation of the film tension through mechanic brake
• Regulation of the film carriage speed, controlled through inverter and with separate parameters for the ascent and the descent
• Film carriage driving motor integrated in the mast (column)
• Film carriage transmission by chain
• Separate setting for the bottom and top reinforcing wraps
• Possibility to set a number wrapping cyles in a continuous sequence
• Pre-setting of 8 different working cycles, each of them with all the parameters personalised by the operator
• Manual or automatic working procedure for each of the pre-set programmes

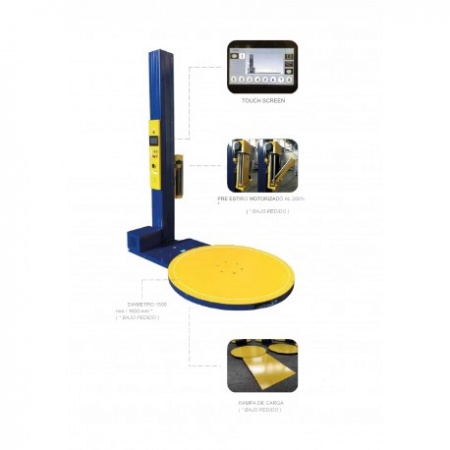

• Operator control panel type “touch screen” with a very easy, simple and intiuitive use, for a rapid setting and regulation of all the different parameters
• Hinge facility (column / basement) for an easy and fast assembling of the unit
• Basament with front predisposal for being lifted and moved with a fork-lift

• Turntable with a 1650 mm diameter
• Extended mast for a wrapping height of 2700 mm
• Film carriage with a 200% fixed ratio (1mt = 3mt) power pre-stretch, with direct transmission through gear and separate regulation of the film tension from the control panel
• Weigh scale system, complete with a visual display and printer for normal and/or adhesive paper
