Vacuum Packaging | Excel DC-530 Double Chamber Vacuum Packaging Machines
Better known as the "workhorses" within the vacuum chamber industry, our double chamber line of equipment is built to handle years of heavy use and abuse. You will not find an aluminum deck on these machines because they are built to last. Consisting of a fully enclosed stainless steel base with a reinforced chamber deck and heavy-gauge lid, these machines are anything but light duty. Understanding the high demands set forth by the industry no corners were cut in the construction of our DC series of chamber machines
Standard Features:
- Stainless Steel Construction
- Flat Chamber for Easy Cleaning
- PD-01 Basic Digital Control Panel
- 10mm Wide Seals
- Bladder Activated Sealing
- High-Density Plastic Filler Plates
- Pump Overload Warning Indicator
- Oil Change Indicator
- Heavy-Duty Casters
- Air Assist
- Hide Away Control Panel for Easy Wash Down
- Busch Vacuum Pump
- Quick Release Seal Bar - No Tools Required
Options:
- PNC-01 Microprocessor Control
- Higher Capacity Vacuum Pump
- Chamber Height
- Soft Air
- Gas Flush System
- Twin Beam Sealing
- Top / Bottom Seal System
- Single Phase Vacuum Pump up to 100m3/h (5HP)
- Mechanical Knife Cut-Off System
- Automatic Lid Transfer
- Operating Voltage
- Custom Sized Machine

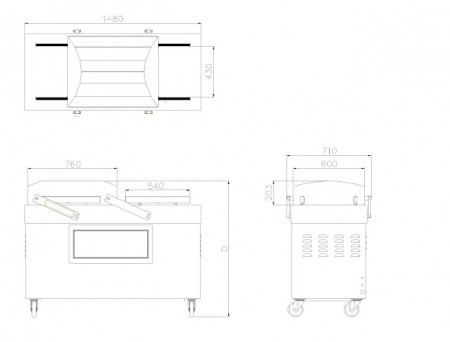

SPECIFICATIONS
- Chamber size :30 x 23.6 Inches (760x600mm)
- Chamber Height :8 Inches (203mm)
- Distance Between Seal Bars : 16.7 Inches (425mm)
- Seal Bar Length : 21.3 Inches (540mm)
- Vacuum Pump Capacity : 40m3/h (2hp/1.3kw)
- Voltage : 220V/3PH/60HZ/9AMP
- Machine Weight : 657 lbs. / 298 kg
- Machine Size - L x W x H : 58 x 25 x 45 Inches (1480 x 640 x 1140mm)
