Vacuum Packaging | Excel DC-860 Double Chamber Vacuum Packaging Machines

Better known as the "workhorses" within the vacuum chamber industry, our double chamber line of equipment is built to handle years of heavy use and abuse. You will not find an aluminum deck on these machines because they are built to last. Consisting of a fully enclosed stainless steel base with a reinforced chamber deck and heavy-gauge lid, these machines are anything but light duty. Understanding the high demands set forth by the industry no corners were cut in the construction of our DC series of chamber machines

Standard Features:

• Stainless Steel Construction
• Flat Chamber for Easy Cleaning
• PNC-01 Microprocessor Control
• 10mm Wide Seals
• Bladder Activated Sealing
• High-Density Plastic Filler Plates
• Pump Overload Warning Indicator
• Oil Change Indicator
• Heavy-Duty Casters
• Air Assist
• Hide Away Control Panel for Easy Wash Down
• Busch Vacuum Pump
• Quick Release Seal Bar - No Tools Required

Options:

• Higher Capacity Vacuum Pump
• Chamber Height
• Soft Air
• Gas Flush System
• Twin Beam Sealing
• Top / Bottom Seal System
• Single Phase Vacuum Pump up to 100m3/h (5HP)
• Mechanical Knife Cut-Off System
• Automatic Lid Transfer
• Operating Voltage
• Custom Sized Machine

SPECIFICATIONS

• Chamber size : 41.3 x 40.6 Inches (1049 x 1031 mm)
• Chamber Height :10 Inches (255 mm)
• Seal Bar Length : 34.5 Inches (876 mm)
• Vacuum Pump Capacity : 63m3/h (3hp/1.8kw)
• Voltage : 220V/3PH/60HZ/11AMP
• Machine Weight : 908 lbs. / 412 kg

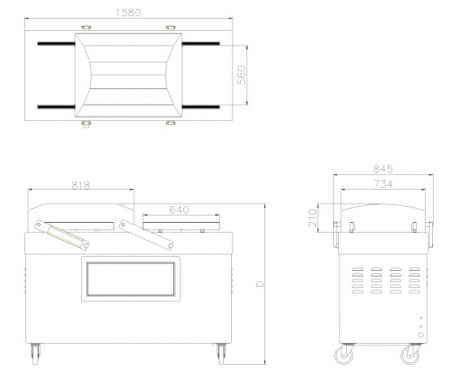

• Machine Size - L x W x H : 62 x 31 x 45 Inches (1580 x 775 x 1145mm)
