Description

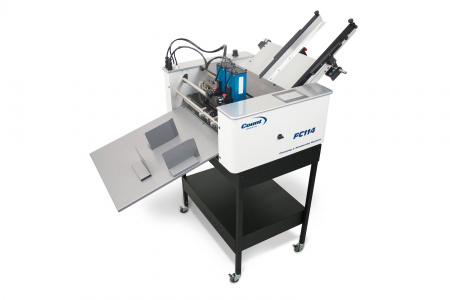

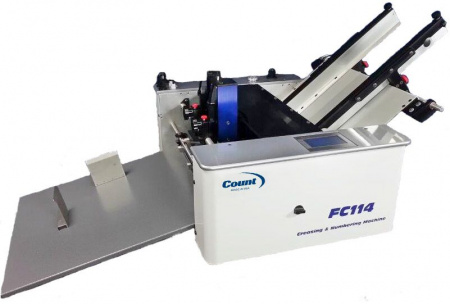

COUNT | FC114 Digital Creasing, Numbering and Perforating Machine

With the investment in a single machine, you can handle high-quality creasing, perforating, and numbering all in one. The COUNT FC114 has a reliable friction paper feed system. It delivers accurate CAM actuated compression creasing with 2 crease widths, pneumatic numbering up to 24 times virtually anywhere on the sheet, plus perforating and optional micro-perforating. It’s a compact, incredibly easy to use, and highly versatile “all in one” solution that includes automatic “one-touch” setups.

Need Parts for the FC114? We have them.
See Below. All Parts are in Stock

Creasing Features:

• The FC114 has a reliable top friction feed system.
• Simple programming allows you to crease, number or perforate individually.

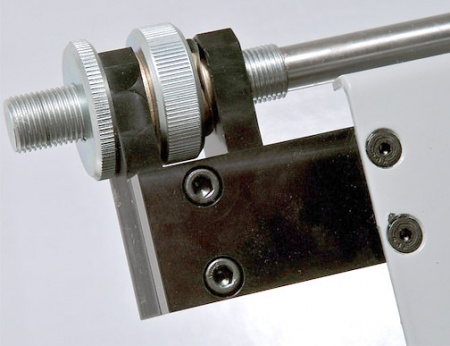

• Complete perforating assembly included, with linear perf capabilities up to 4 perfs per sheet-optional micro-perf and score wheel assemblies are available.

• Two-sided die creasing rod accommodates for heavier stock-simply remove and flip over to change from narrow to wide crease.

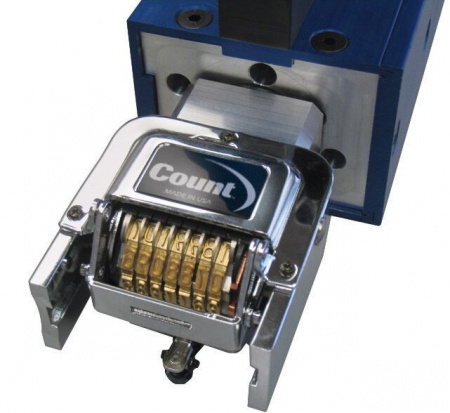

• Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros, and 4 repeats.
• Flexibility to apply for numbers virtually anywhere on a sheet–from the lead edge, place numbers within 1 mm of the previous number.
• Number single sheets, or crash numbers up to a 10-part carbonless form.
• FC114 includes micro-laterally adjustable feed rails and sheet counter (batch and total counting).
• User-friendly touch screen for easy setup and control of the machine.
• Automated distance recognition–allows auto setups for your most common creases and corresponding folds.
• CAM actuated compression creasing.
• Choice of black or red ink, in patented self-inking disposable cartridges–no re-inking required!–for approx. 25,000 impressions per cartridge.
• Program each numbering head individually for multiple numbering.

SPECIFICATIONS

• Paper Feed :Friction
• Max Crease Speed :4,500
• Max Perf/Score Speed : 12,000
• Paper Weight Range : 60 - 350 (gsm)
• Max Sheet Size : 24.0 L x 18.0 W in (61.0 x 45.7 cm)
• Min Sheet Size : 4.5 L x 6.0 W in (11.4 x 15.2 cm)
• Max Crease Locations per Sheet : 12
• Max Perf/Score Locations per sheet : 4
• Paper Fold Options: Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
• Scoring : Optional
• Touch Screen Controls : True
• Product Dimensions : 44.0 L x 44.0 W x 32.0 H IN
• Product Weight : 150 lbs (68 kg)
• Electrical: 110 V, 50 Hz or 220 V, 60 Hz (Check before purchasing)
• Max Numbering Speed : 8,000 (sph)
• Numbering Heads : Pneumatic

Spare/Replacement Part for COUNT FC114 Digital Creasing, Numbering and Perforating Machine
