Description

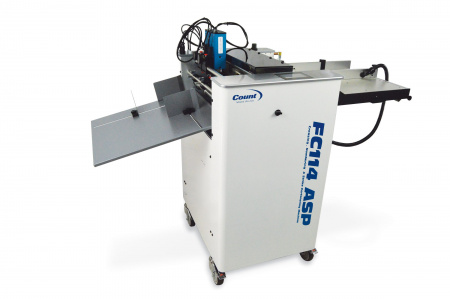

COUNT | FC114ASP Digital Creasing, Numbering and Strike Perforating Machine

With the investment in a single machine, you can handle high quality numbering, creasing, rotary and strike perforating all-in-one. The COUNT FC114ASP has a reliable bottom vacuum-feed system. This machine delivers accurate CAM actuated compression creasing with 2 crease widths, pneumatic numbering up to 24 times virtually anywhere on the sheet, plus perforating and optional micro-perforating. It’s a compact, incredibly easy to use and highly versatile “all in one” solution that includes automatic “one-touch” set-ups.

FEATURES

• The FC114ASP has a reliable bottom vacuum feed system with a register guide.
• Simple programming allows you to number, crease or perforate individually.

• Two-sided die creasing rod accommodates for heavier stock-simply remove and flip over to change from narrow to wide crease.

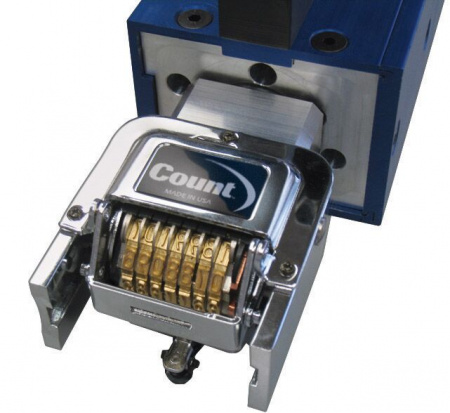

• Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros and 4 repeats.
• Flexibility to apply numbers virtually anywhere on a sheet–from lead edge, place numbers within 1 mm of previous number.
• Number single sheets, or crash number up to a 10-part carbonless form.

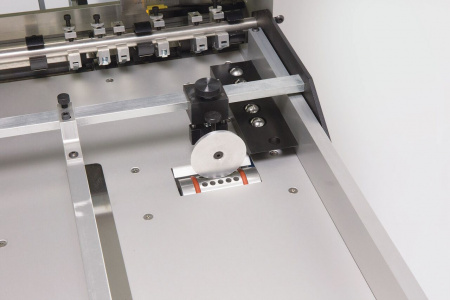

• Complete strike perforating assembly included, with linear perf capabilities up to 2 strike perfs per sheet-optional micro-perf and score wheel assemblies are available.
• User-friendly touch screen for easy set up and control of the machine.
• Automated distance recognition–allows auto setups for your most common creases and corresponding folds.
• CAM actuated compression creasing.
• Choice of black or red ink, in patented self-inking disposable cartridges–no re-inking required!–for approx. 25,000 impressions per cartridge.
• Program each numbering head individually for multiple numbering.

SPECIFICATIONS

• Paper Feed :Vacuum
• Max Crease Speed :4,500
• Max Perf/Score Speed : 12,000
• Paper Weight Range : 60 - 350 (gsm)
• Max Sheet Size : 24.0 L x 18.0 W in (61.0 x 45.7 cm)
• Min Sheet Size : 4.5 L x 6.0 W in (11.4 x 15.2 cm)
• Max Crease Locations per Sheet : 12
• Max Perf/Score Locations per sheet : 4
• Paper Fold Options: Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
• Scoring : Optional
• Touch Screen Controls : True
• Product Dimensions : 63.0 L x 29.0 W x 43.0 H IN
• Product Weight : 222 lbs (101 kg)
• Electrical : 110/220 V, 50/60 Hz (Call before purchasing)
• Max Numbering Speed : 8,000 (sph)
• Numbering Heads : Pneumatic
