Description

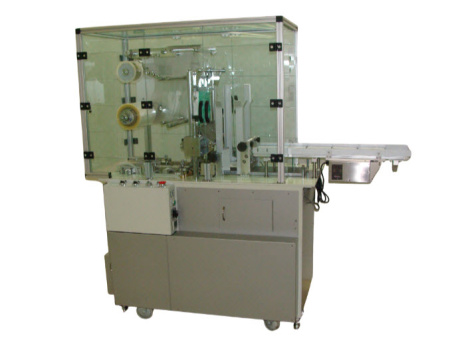

KM-99 Fully Automatic Overwrapping Machine for CDs and DVDs , Cosmetics, Candy, Pharmacy Items, and Stationery Boxes

FEATURES

• Vertical hopper for CD or DVD cases to automatically feed the machine
• Jog switch allows operator to move product forward or backwards for easy setup or easy removal if the package is jammed.
• Auto jam stop: if a package jams in the machine, the jam stop will shut down the machine automatically.
• Easy thread film feed mechanism makes loading film quick and easy
• Adjustable film brake eliminated overfeeding of film
• With the change parts, the machine will be able to run different-sized products all on the same machine.
• Will seal all commercially available heat-sealable BOPP films
• Production speeds of 40-50 PPM
• Variable Speed Drive allows the operator to slow the machine down to match production rates
• Acrylic safety door panels protect the machine operator.
• Easy access control panel allows for fast changeover
• Independent temperature controls for side heat seal plates
• 1 hp heavy duty drive motor
• Emergency stop button shuts down machine
• Heavy duty locking casters with adjustable leveling legs

SPECIFICATIONS

• Electrical: 220 Volt, 1 Phase (110 Volt Also Available)
• Power: 2kw (2,000 watts)
• Machine Dims: 46” L x 30” W x 62” H
• Shipping Dims: 60” L x 37” W x 71” H
• Weight: Net: 320kg (704 lbs Gross: 450kg (990 lbs)
• Air: None required (CT-100 Collection Table requires air)
• Warranty: 1 year on parts
