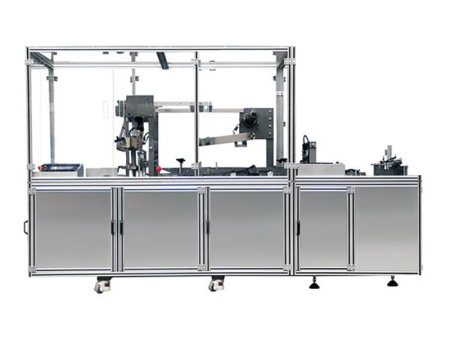

TC-36AF Overwrapping Machine With Auto Feeder - Overwrapper

FEATURES

• DELTA PLC Control System
• DELTA 7-inch color touch screen HMI
• DELTA Inverter for main motor speed control
• DELTA servo system for main drive and film feed
• Automatic feeding and overwrapping for multi-piece or single box
• Pneumatic Product Pusher and Feeder Magazine
• Cam transmission system for synchronized motion
• Six-sided hot pressing and shaping device for sealing beauty
• Digital temperature controller
• AirTAC pneumatic components (cylinder, valve, filter)
• SCHNEIDER contactors and switches
• OMARON relays
• Safety guards

SPECIFICATIONS

• Applicable Material: BOPP overwrapping film
• Product Length: 50-290 mm / 1.97 to 11.42 inch
• Product Width: 35-190 mm / 1.38 to 7.48 inch
• Product Height: 17 to 90 mm / .67 to 3.54 inch
• Machine System: Continuous motion with servo drive and pneumatic assist
• Machine Construction: 304 Stainless Steel with anodized aluminum components
• Electrical: 220 VAC, 60 Hz, 3 phase
• Power Requirement: 7.0 Kw
• Compressed Air: 0.5 Mpa at 8 cbm/hr
• Machine Dimensions: L1970 x D920 x H1700 mm / L78 x W36 x H67 inch
• Machine Weight: 600 Kg / 1325 lbs
• Application Range: Cosmetics, food, tea, clothing, candies, red dates, chocolates, biscuits, e-cigarettes, hardware, tobacco
