Preferred Pack Extra Load Capacity of 5000lbs. 0-15 Rotations Per Minute Low Profile Pallet Wrapper PP 983 LP

The Preferred Pack PP 983 LP is a semi-automatic high-profile pallet stretch wrapping machine with 250% power prestretch and a 5000-pound load capacity. This machine also has a photo eye and "easy thread design" as standard features. The PP 983 LP includes the ramp for use with pallet jacks and can accommodate pallet loads up to 90" high. Optional features include a 72" diameter turntable, a tower extension to 105", a base extension, digital keypad control panel, weight scale packages, a load stabilizer-top pressure plate, and remote auto film start. Pallet Wrapper scales are available for all models.

Standard Features:

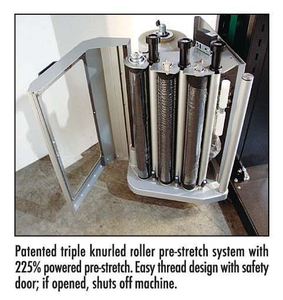

• 250% Pre-Stretch: 3 ft. of film going through pre-stretch rolls comes out 10 ft. of film onto the load. Other pre-stretch gearing is available with a simple sprocket change.
• Photo Eye: Will automatically seek the height of the pallet load
• Reinforcing Wrap: Allows the machine to apply multiple wraps at any desired location
• Home Position: Turntable always returns to original position
• Automatic or manual operation switch
• Adjustable wrapping tension
• Adjustable turntable speed
• Adjustable carriage elevator speed
• Film Break Re-Start: If film breaks during operation, simply press the START button again to continue the program cycle. No need to start from the beginning again.
• Top and Bottom Wrap Counter: Allows operator to select number of wraps on top or bottom of load.
• Film carriage security door with safety interlocks: If door is opened, machine will automatically be shut off.
• Emergency stop switch: When activated will shut off the machine.

PP 983 Specifications:

• Power Requirements 115 Volt, 1 Phase 15 Amp
• Maximum Load Size (LxWxH) :48 x 48 x 85 INCHES
• Maximum Load weight up to 5,000 lb. Dynamic

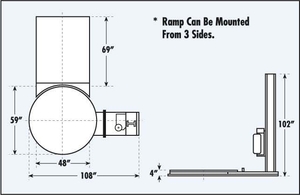

• Machine Dimensions (LxWxH) :96 x 58 x 109 INCHES
• Crated Size (LxWxH) : 120 x 62 x 30 INCHES
• Estimated Shipping weight 1,500 lbs.
• Turntable 58 Inches Diameter
• Turntable Drive Variable speed 0-15 RPM; 1HP DC drive
• Stretch up to 250% Pre-stretch
• Turntable Drive Method

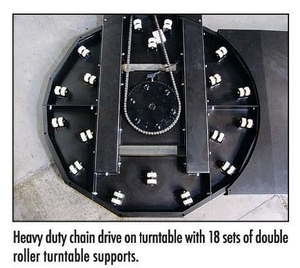

• Heavy duty chain drive
• Turntable Support Heavy Duty Delrin Rollers w/Sealed Bearings (very quiet)
• Carriage Elevator Variable speed

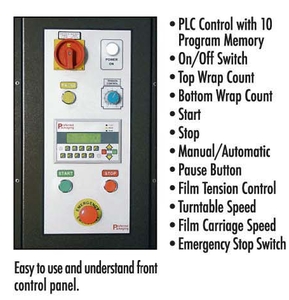

• Controls Omron Relays and Inverters
• Forklift Portable
• Positive Alignment
• Warranty 3 years on all parts from date of delivery
• CE Approved - Exceeds OHSA Safety Standards.

Optional Features:

• 72 Inch Diameter Turntable
• Tower Extension to 105 Inches
• Base Extension
• Load Stabilizer - Top Pressure Plate
• Weight Scale Packages

Common Replacement Parts for Preferred Pack PP-983 Pallet Wrapping Machine

Rubber Roller - (Part# B20100)
1st Rubber Roller - (Part# B20106)
POT in carriage - (Part# E46100)
INVERTER Delt S1 - (Part# E67300)
DVP-16ES PLC - (Part# E90200)
Support Roller - (Part# B10043)
Cable Channel - (Part# B20029)
Photo Eye Reg - (Part# E84100)
Photo Eye Black - (Part# E84100 - Black)
Upper Limit Switch Trigger Place - (Part# B20031)
Limit Switch - (Part# E29000)
9 Pin Connector with cable - (Part# E2400-9)
Micro Switch Turntable - (Part# E28500)
