Description

981 HP-SCALE Stainless Steel High Profile Pallet Shrink Wrapping Machine with Built In SCALE with Load Cells LED Weight Indicator

This Truline TP-981 HP-SCALE comes with BUILT IN SCALE with Load Cells & LED Weight Indicator

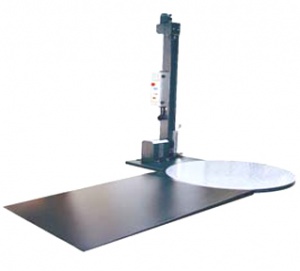

The Truline TP-981 HP Stainless Steel High Profile Pallet Shrink Wrapping Machine will accommodate Pallet Loads up to 85" High. The Ramp shown is not included with this Pallet Shrink Wrapping Machine.
Heavy Duty Chain Drive on turntable with 14 sets of double roller turntable supports. No maintenance or lubrication required.
The Truline 981 Utilizes 20" Stretch Film the mechanical brake stretch provides for increased film yields of up to 125%.

FEATURES

• Easy to use and understand front control panel
• Top Wrap Count
• Bottom Wrap Count
• Pallet Wrap Height
• On/Off Switch
• Emergency Stop Switch
• Start/Stop Switch
• Manual/Automatic Mode
• Manual Carriage Control



	TP-981 HP CLICK HERE	TP-981 LP CLICK HERE	TP-981 HP-SCALE CLICK HERE
Loads With	Fork Lift ONLY	Pallet Jack or Fork Lift	Fork Lift ONLY
Machine Dimesnions (L x W x H)	96" x 59" x 102"	96" x 59" x 102"	96" x 59" x 102"
MAX. Load Size (L x W x H)	48" x 48" x 85"	48" x 48" x 85"	48" x 48" x 85"
MAX Load Weight	3000 Lbs. Dynamic	3000 Lbs. Dynamic	3000 Lbs. Dynamic
Crated Size (L x W x H)	120" x 62" x 30"	120" x 62" x 30"	120" x 62" x 30"
Shipping Weight	1250 Lbs.	1250 Lbs.	1250 Lbs.
Turntable Size	58" Diameter	58" Diameter	58" Diameter
Turntable Drive	Fixed 10 RPM	Fixed 10 RPM	Fixed 10 RPM
Pre-Stretch	Mechanical Break	Mechanical Break	Mechanical Break
Turntable Drive Method	Heavy Duty Chain Drive	Heavy Duty Chain Drive	Heavy Duty Chain Drive
Turntable Support	Heavy Duty Delrin Rollers Sealed	Heavy Duty Delrin Rollers Sealed	Heavy Duty Delrin Rollers Sealed
Bearings	Very Quiet	Very Quiet	Very Quiet
Carriage Elevator	Fixed	Fixed	Fixed
Controls	Omron Relays and Inverters	Omron Relays and Inverters	Omron Relays and Inverters
Forklift	Portable	Portable	Portable
Alignment	Positive	Positive	Positive
Power	110Volt 10 Amps	110Volt 10 Amps	110Volt 10 Amps

Ramp Pictured Above NOT INCLUDED
