Description

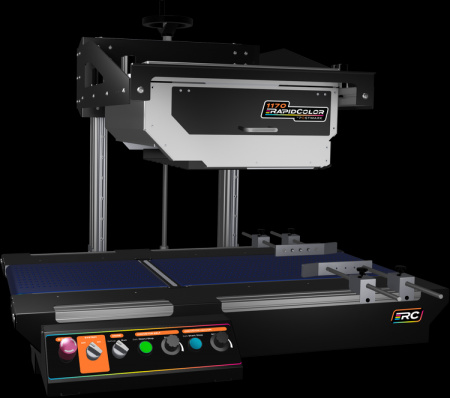

POSTMARK PM-1170CPS RapidColor CORE Print High-Speed Full-Color Printing Solution

CPS: Core Print Solution
PRINTER AND CONVEYOR OF HAND-FED, SHORT TO MEDIUM SIZE RUNS FOR HIGH-SPEED, ON-DEMAND, FULL-COLOR PRINTING.

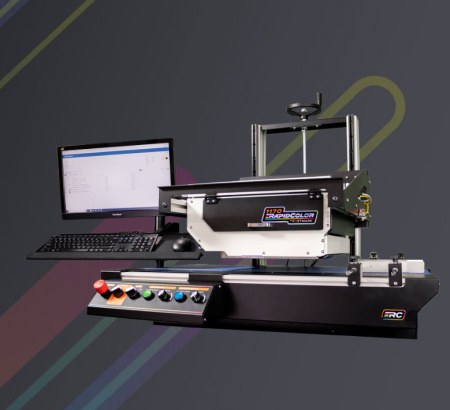

Includes:1170 Printer, Encoder and Cables, Photo Sensor and Cables, Computer with Xitron Software, Monitor/Keyboard Mount and Conveyor (with Bleed Channel, Guide Rail Registration and Mounting Bracket) plus mobile stand base for simple installation into pre-existing set-ups.

Whatever your printing needs, the 1170 RapidColor line has the right solution for you! Enhance pre-existing setups or start new with a complete turnkey solution. Whether it's envelopes, bags, boxes, napkins or more, the line of versatile 1170 RapidColor Print Solutions is ready to provide you with high-speed, high-quality, four-color inkjet printing.

Looking for a print solution to add to your pre-existing equipment? The 1170 Rapid Color CPS offers professional quality printing on a mobile stand with flexible height adjustment to perfectly fit your needs. Whatever you’re printing - envelopes, shopping bags, cardboard boxes, napkins or more - the versatile 1170 Rapid Color CPS is ready to provide you with the high-speed, high-quality, four-color printing you need!

FEATURES

High-speed, on-demand, full-color printing up to 11.7 inches wide
Guide rails for aligned prints every time
Printing on materials u to 10 inches in height
HP FI-1000 Printhead for quality printing
Fade, scratch, and water-resistant ink
Variable Data Printing Fade, scratch, and water-resistant ink
Height adjustment up to 2 ft
Variable data printing with Xitron software
Computer package plus monitor /keyboard munt for convenient workstation setup
Adjustable feet for convenient leveling

SPECIFICATIONS

Printer : 1170 Printer (HP FI-1000)
Printer Accessories : Photosensor, Encoder, and Cables
Software : Xitron Navigator (Preloaded on Computer)
Computer Package : Computer, Monitor (ViewSonic VA2055Sm 20" FHD LED), Keyboard, and Mouse
Computer Specs : Dell OptiPlex 3090, Intel Core i5, 8GB RAM (Xitron Preloaded) + Accessories (see below)
Conveyor : Conveyor with Bleed Channel
Monitor/Keyboard Mount : Yes
72" x 30" Workbench & Mat : No
Feeder : No
Delivery System : No
Sheet Registration : Guide Rail Registration
Adjustment Method : Manual
Height Adjustment Range: 10 in (254 mm)
Max Media Size : 10 H x 34 L Inch (printing)
Dims and Weight Include : Printer/Conveyor
Dimensions L x W x H (in) : 39 x 29 Inch
Shipping Weight : 490 lbs, 223 kg
Warranty : 1-year non-wearable parts and 90-days labor

PRINT HEAD SPECIFICATIONS

Printheads : HP FI-1000 (HP PageWide technology TIJ4 printhead, replaceable as part of BnB)
Print Res (DPI) : 1200 x 1200 and 600 x 1200 (per color)
Print Speed (1200 x 1200 dpi): 18 in/sec, 98 ft/min (457 mm/sec, 30 m/min)
Print Width : 11.7 Inch
Max Substrate Width: 34 Inch (Pro and Core only - 6 Inch on the back side only, remainder out front side)
Full Bleed : Yes
Ink Type: Pigmented Aqueous (fade, scratch, and water resistant)
Ink cartridge type : Individual ink supply
Ink fill : C= 237 ml, M= 233ml, Y = 225ml, K= 498ml (approx)
Print Swath : 297 mm (11.7 in)
Nozzle Count : 59136 (4224 x 14)
Drop Volume : 10 pl K, 8.5 pl CMY

DEMO VIDEO

Warranty: Postmark of Martin Yale Industries (MYI) warrants 1-year parts and 90 days labor, from the date of shipment, all component parts and workmanship of its products to be free of manufacturing defects - Except for consumables. The printhead warranty is 4 liters of ink per print bar per color OR 0.3 liters of ink per die per color, whichever comes first. The cost of labor to install such parts are the responsibility of the installer. Additional extended warranties are available upon request.

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com

COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.

Specifications

Manufacturer Part #:	Postmark 1170 CPS
Origin:	United States of America

SPECIFICATIONS Printer : 1170 Printer (HP FI-1000) Printer Accessories : Photosensor, Encoder, and Cables Software : Xitron Navigator (Preloaded on Computer) Computer Package : Computer, Monitor (ViewSonic VA2055Sm 20" FHD LED), Keyboard, and Mouse Computer Specs : Dell OptiPlex 3090, Intel Core i5, 8GB RAM (Xitron Preloaded) + Accessories (see below) Conveyor : Conveyor with Bleed Channel Monitor/Keyboard Mount : Yes 72" x 30" Workbench & Mat : No Feeder : No Delivery System : No Sheet Registration : Guide Rail Registration Adjustment Method : Manual Height Adjustment Range: 10 in (254 mm) Max Media Size : 10 H x 34 L Inch (printing) Dims and Weight Include : Printer/Conveyor Dimensions L x W x H (in) : 39 x 29 Inch Shipping Weight : 490 lbs, 223 kg Warranty : 1-year non-wearable parts and 90-days labor PRINT HEAD SPECIFICATIONS Printheads : HP FI-1000 (HP PageWide technology TIJ4 printhead, replaceable as part of BnB) Print Res (DPI) : 1200 x 1200 and 600 x 1200 (per color) Print Speed (1200 x 1200 dpi): 18 in/sec, 98 ft/min (457 mm/sec, 30 m/min) Print Width : 11.7 Inch Max Substrate Width: 34 Inch (Pro and Core only - 6 Inch on the back side only, remainder out front side) Full Bleed : Yes Ink Type: Pigmented Aqueous (fade, scratch, and water resistant) Ink cartridge type : Individual ink supply Ink fill : C= 237 ml, M= 233ml, Y = 225ml, K= 498ml (approx) Print Swath : 297 mm (11.7 in) Nozzle Count : 59136 (4224 x 14) Drop Volume : 10 pl K, 8.5 pl CMY
