Description

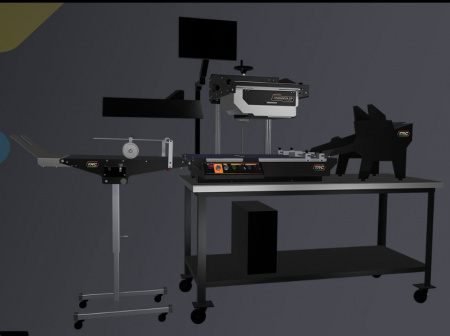

POSTMARK PM-1170PPS RapidColor PRO Print High-Speed Printing Solution

COMPLETE PRINT SOLUTION WITH FEEDER AND DELIVERY TABLE.

Includes: 1170 Printer, Encoder, Cables, Photo Sensor, Cables, Computer w/ Xitron Software, Monitor/Keyboard Mount, Conveyor (w/ Bleed Channel, Guide Rail Registration, Mounting Bracket), Standard 12 Inch Feeder*, Automated Delivery Table*, Table Base w/ Surface Mat

Whatever your printing need, the 1170 RapidColor line has the right solution for you! Enhance pre-existing setups or start new with a complete turnkey solution. Whether it's envelopes, bags, boxes, napkins or more, the line of versatile 1170 RapidColor Print Solutions is ready to provide you with high-speed, high-quality, four-color inkjet printing.

Looking for a high-speed, quality print solution? The 1170 RapidColor Pro is ideal for those looking for a complete professional solution. Whatever you’re printing - envelopes, shopping bags, cardboard boxes, napkins or more - the versatile 1170 RapidColor Print Solutions are ready to provide you with the high-speed, high-quality, four-color printing you need!

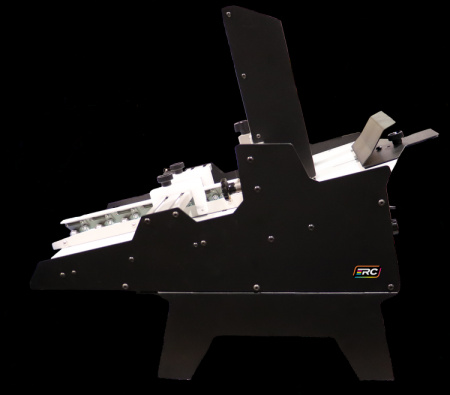

STANDARD 12” FEEDER

Run a variety of materials including envelopes, postcards, coasters and more

Pieces from 3”-13.4” wide and 3”-14” long

Thicknesses up to 1/8” (3.175 mm)

Speeds up to 12,000 pieces per hour (#10 envelopes landscape)

Delivery Systems

Great for shingling items neatly after printing

Automatically starts and stops as materials are detected

Adjustable speed and “fast forward” switch to help gather materials

Adjustable height from 30” to 40”

Adjustable angle of ±15°

SPECIFICATIONS

Printer : 1170 Printer (HP FI-1000)
Printer Accessories : Photosensor, Encoder, and Cables
Software : Xitron Navigator (Preloaded on Computer)
Computer Package : Computer, Monitor (ViewSonic VA2055Sm 20" FHD LED), Keyboard, and Mouse
Computer Specs : Dell OptiPlex 3090, Intel Core i5, 8GB RAM (Xitron Preloaded) + Accessories (see above)
Conveyor : Conveyor with Bleed Channel
Monitor/Keyboard Mount : Yes
72" x 30" Workbench & Mat : Yes
Feeder : 12 Inch Standard Feeder (Optional Napkin, MPF)
Delivery System : Delivery Conveyor (Optional Delivery Tray)
Sheet Registration: Guide Rails, Guide Fingers, Guide Wheels (on 12 Inch Feeder)
Adjustment Method : Manual
Height Adjustment Range: 10 Inch (254 mm)
Max Media Size : 10 H x 34 L Inch (printing) x 12 W Inch (with feeder)
Dims and Weight Include: Printer, Conveyor, Workbench, Delivery Conveyor, 12 Inch Feeder
Dimensions L x W x H (in) : 124 x 35 x 71 Inch (L = 72 Inch Bench + 52 Inch Delivery) Inch (315 x 89 x 180.3 cm)
Weight: Total: 543 + Peripherals, Workbench: 233 lbs, Conveyor: 150 lbs, Printhead: 80 lbs, Delivery Conveyor: 80lbs
Shipping Weight : 765 lbs, 347 kg
Electrical : 110V AC, 50-60Hz
Power Cables : Printer, Conveyor, Computer, Delivery Conveyor, Feeder
Warranty : 1-year non-wearable parts and 90-days labor (printhead separate)

PRINT HEAD SPECIFICATIONS

Printheads : HP FI-1000 (HP PageWide technology TIJ4 printhead, replaceable as part of BnB)
Print Res (DPI) : 1200 x 1200 and 600 x 1200 (per color)
Print Speed (1200 x 1200 dpi): 18 in/sec, 98 ft/min (457 mm/sec, 30 m/min)
Print Width : 11.7 Inch
Max Substrate Width: 34 Inch (Pro and Core only - 6 Inch on the back side only, remainder out front side)
Full Bleed : Yes
Ink Type: Pigmented Aqueous (fade, scratch, and water resistant)
Ink cartridge type : Individual ink supply
Ink fill : C= 237 ml, M= 233ml, Y = 225ml, K= 498ml (approx)
Print Swath : 297 mm (11.7 in)
Nozzle Count : 59136 (4224 x 14)
Drop Volume : 10 pl K, 8.5 pl CMY
Dimensions : 20.25 x 21 x 8.75 Inch
Weight : 72 lbs, 33 kg
Shipping Weight : 88 lbs, 40 kg
Printhead Warranty : 4L ink per print bar per color OR .3L ink per die per color, whichever comes first.
Power Cables: 1-Printer, 1-Conveyor, 1-Computer, 1-Monitor, 1-Delivery Conveyor (plugs into Conveyor), 1 Standard Feeder (plugs into Conveyor), 1-Napkin Feeder (optional)

DEMO VIDEO

Warranty: Postmark of Martin Yale Industries (MYI) warrants 1-year parts and 90 days labor, from the date of shipment, all component parts and workmanship of its products to be free of manufacturing defects - Except for consumables. The printhead warranty is 4 liters of ink per print bar per color OR 0.3 liters of ink per die per color, whichever comes first. The cost of labor to install such parts are the responsibility of the installer. Additional extended warranties are available upon request.
