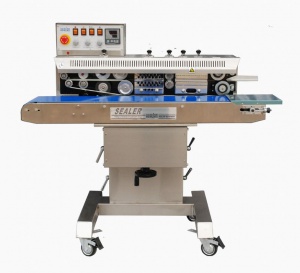

Band Sealers | Preferred Pack PP-1120C Horizontal Band Sealer with Tilting Head and Hot Ink Coding

If you are sealing thermoplastic material of any size, the Preferred Packaging 1120C is a great option. This machine is designed to be fast, effective and portable. This sealer is designed for horizontal sealing. The control panel sits at the top left and is extremely easy to set up and adjust. Simply place your bag on the right side of the sealer and it will pull it through (via a conveyor) and seal the open end of the bag shut. This continuous band sealer can be used with thermoplastic material such as PE, PPE, pouches, gusseted bags & moisture barrier bags. A tilting seal head can be easily adjusted up to 30 degrees to accommodate different packaging and it can be used for packaging liquids. Multiple items on this sealer can be adjusted including the conveyor height and depth in relation to the sealing bar.

FEATURES

• Durable stainless steel construction
• Easy to operate - minimal operator training
• Fast warm up time
• Ideal for medium duty applications
• Tilting seal head which allows the machine to tilt up to 30 degrees
• Suitable for any product including liquids
• Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality
• Motorized rubber conveyor for speed control
• Knurled pressure wheels with variable pressure adjustment
• Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks
• Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)
• Dry ink coding allows for printing at the seal line
• Unit feeds from Right to Left
• Unit ships via freight only. Call for freight rates.
• Spare Parts Kit Includes: PC Board, PTFE Belt, Wheel Belt, Carbon Brush, and Typeset

SPECIFICATIONS

• POWER: 110V / 60Hz
• MOTOR POWER: 100W
• SEALING SPEED: 0-394 in/min
• SEAL WIDTH: 8MM
• TEMPERATURERANGE: 0-300⁰C
• SEALING POWER: 300 X 2
• CONVEYOR SIZE: 43inch x 8inch
• MAX CONVEYOR LOAD: 16.5lbs
• CHARACTER SIZE TWO TYPES AVAILABLE: R-TYPE: PT 18PT – 2 LINES / OPTION: PT 10.5 – 3 LINES
• PRINTING HEATING POWER (W): 40 x 2
• PRINTING OPTIONS: 20 CHARACTERS/LINE
• DIMENSIONS: 43inch x 24inch x 41inch
• WEIGHT HORIZONTAL: 187lbs / 275 (GW)
