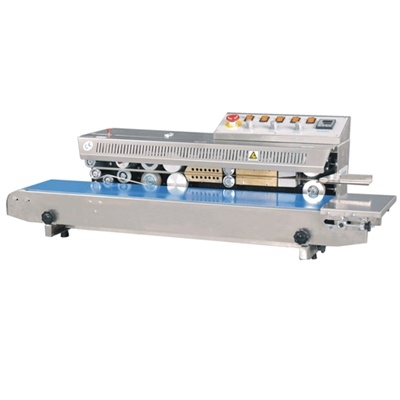

Band Sealers | Preferred Pack PP-1010I Stainless Steel Premium Horizontal Band Sealer with Dry Ink Coding

These machines are suitable to the closure in horizontal bags with maximum height mm. 300 and max weight. 5 kg. The welding system with belts PTFE allows the closure of bags made of polyethylene, polypropylene, cellophane, coated paper, laminated aluminum, etc. The temperature is controlled by an electronic temperature controller and the feed speed is adjustable. The distance between the welding and the edge of the bag is 10 mm. The distance (width) between the welding head and the conveyor belt is adjustable and is also adjustable the height of the conveyor belt relative to the floor. The machine is equipped with rotary solid ink marker and interchangeable characters (20 characters max height 5 mm.), The system works with inked rollers for easy handling and comes complete with photocell to make the marking at the desired point.

FEATURES

• Durable stainless steel construction
• Easy to operate - minimal operator training
• Fast warm up time
• Seals any thermoplastic material including PE, PP, and laminates
• Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality
• Fully adjustable conveyor
• Motorized rubber conveyor with speed control
• Knurled pressure rolls with variable pressure adjustment
• Embossing attachment allows for printing on seal line w/o ink
• One pair each of cooling and heating blocks
• Sealing method - constant / direct heat - 15mm seal width
• Unit feeds right to left
• Equipped with an emergency stop button
• Can easily be converted to a vertical configuration with an optional converting kit
• Spare parts include: PC Board, PTFE sealing belt, wheel belt, tools, and type set

SPECIFICATIONS

• POWER: 110V / 60Hz
• MOTOR POWER: 50W
• SEALING SPEED: 0-472 INCHES/MINUTE
• SEAL WIDTH: 15MM
• TEMPERATURERANGE: 0-300°C
• SEALING POWER: 300 X 2
• CONVEYOR SIZE: 42inch x 8inch
• MAX CONVEYOR LOAD: (SINGLE BAG) 2.2LBS
• CHARACTER SIZE TWO TYPES AVAILABLE: R-TYPE: PT 18PT 2 LINES / OPTION: PT 10.5 3 LINES
• PRINTING HEATING POWER (W): 40 x 2
• PRINTING OPTIONS: 20 CHARACTERS/LINE
• DIMENSIONS: 42 inch x 18 inch x 20 inch
• WEIGHT HORIZONTAL: 119lbs / GW 150
