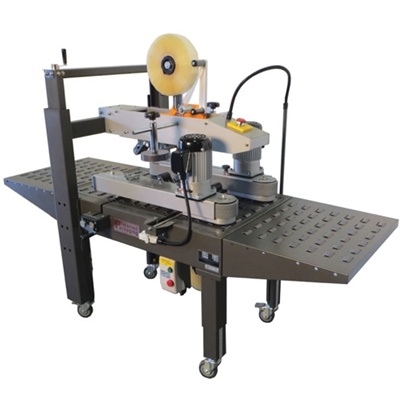

Preferred Pack CT-50-3 SS Stainless Steel Semi-Automatic Carton Sealer with 3 inch tape heads

The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The CT-50 applies a single tape strip to both the top and bottom of the case simultaneously. This two belt drive design is a heavy duty versatile machine designed for dependable performance and easy operation. The CT-50 can be easily adjusted in only seconds to process a different size carton. Excellent for low profile, small, lightweight boxes.

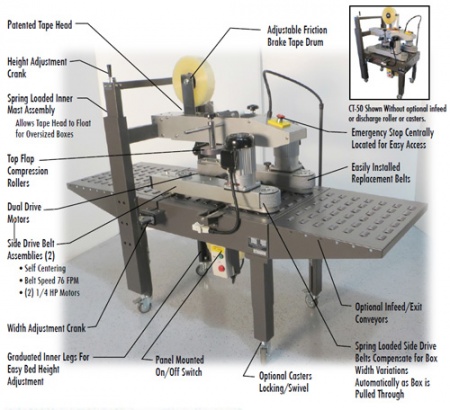

STANDARD FEATURES:

• “Patented” Tape Head with “Easy Thread” Design
• Interchangeable Tape Heads
• Side Pressure Rollers to Close Box Top
• 2 Side Drive Belts -Positive Feed
• Fully Adjustable Legs

OPTIONAL FEATURES:

• Infeed Conveyor
• Exit Conveyor
• Stainless Steel Frame
• Heavy Duty Locking Casters

SPECIFICATIONS

• Carton Size: Length: :6" min. to infinite / Width: 4.5" min. to 18.5" max. / Height: 4" min. to 19.5" max
• Machine Dimensions :36"L x 27"W x 53"H
• Machine Speed : 75ft./min. up to 2000 cartons per hour. Production rate depends on carton size and operator dexterity.
• Power : 110v, single phase, 10 amp
• Weight : 320 lbs. shipping weight 370 lbs.
• Max. Box Weight : 65 lbs.
• Tape Head Specs : 3" (72mm) wide - 1,000 yard or 1,500 yard rolls
