Description

Carton Sealers - Preferred Pack CT-55R-3 Semi-Automatic “Random” Carton Sealer

The operator simply packs the corrugated carton and feeds it into the machine. A photo-eye activates the box centering device, the operator pushes the box against the top tape head switch and it will move upward to seek the box height. 2 top and 2 bottom drive belts turn on and drive the box through the machine. The CT-55R-3 applies a single tape strip to both the top and bottom of the case simultaneously. This 4 belt drive design is a heavy duty versatile machine designed for dependable performance and easy operation. The CT-55R-3 will easily adjust in seconds to process a different size carton. Excellent for all types of boxes.

Automatic Adjustment to Random Box Sizes.

3 Bottom Drive Belts with 3 Top Drive Belts.

Our New “Piranha Tape Head” features an Easy Thread Design with Optimizer Arm.

Machine Comes Complete with AdjustableHeight Legs, Power Cord and 110 Volt Plug.

Automatically centers the box, adjusts for the width and height and applies a single tape strip to the top and bottom of the random box sizes.

STANDARD FEATURES:

• Piranha Tape Head with “Easy Thread” Design
• Interchangeable Tape Heads
• Automatic Adjustment to Random Size Boxes

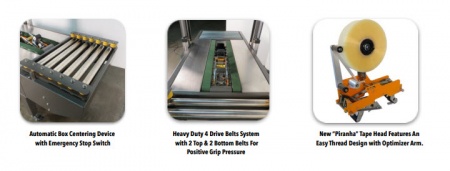

• Box Centering Device
• 3 Bottom Drive Belts
• 3 Top Drive Belts
• Fully Adjustable Legs

SPECIFICATIONS

• 3” (72mm) Tape Heads
• Heavy Duty Locking Casters
• Stainless Steel Frame
• CARTON SIZE: :LENGTH: 6” min. to Infinite Length WIDTH: 7” min. to 20” max HEIGHT: 2” min. to 22.5” max.
• MACHINE SIZE: :75”L x 33”W x 60”H
• MACHINE SPEED: : 75ft./min. up to 20 cartons per minute. Production rate depends on carton size and operator dexterity
• ELECTRICAL : 110 Volt, I Phase, 10 Amp
• WEIGHT : 715 lbs. Shipping Weight: 775 lbs.
• MAX BOX WEIGHT : 75lbs
• TAPE HEAD SPECS : 2” (48mm) Wide - 1,000 yard or 1,500 yard rolls

DEMO VIDEO







If you have any questions or concerns, contact a customer service representative today.
