Tray Sealer | PP-YTM-300-4 Preferred Pack Semi-Automatic Manual Tray Sealer 135 × 135 mm (5.3 x 5.3 Inch)

Quantity:

Price You Pay:

$3,895.00

Estimated Oversize Handling Fee :

$100.00
Yes! This Item Is In Stock!

Maximum tray length × width:

Availability
Online
In Store
Same Day

Description

Tray Sealer | PP-YTM-300-4 Preferred Pack Semi-Automatic Manual Tray Sealer with One Cavity measuring 135 × 135 mm (5.3 x 5.3 Inch) with a Fast Cycle Time of 6 seconds and Production Rate of 8-10 Trays Per Minute


Ideal for:
  • Ready meals
  • Frozen foods
  • Bulk packaging of food items
  • Retail packaging

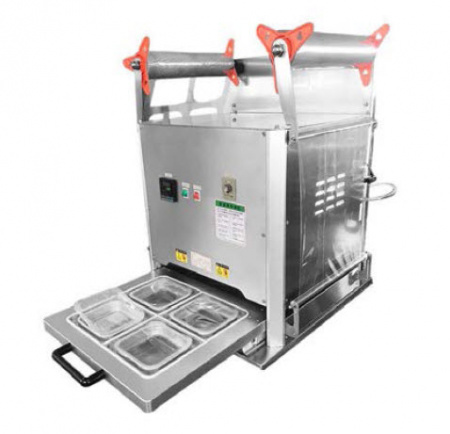

  • The Preferred Pack Model PP-YTM-300-4 is a Semi-Automatic, partially Manually operated “Shuttle Style”, Tray Sealer that will automatically seal Lidding Film to a tray and automatically die-cut around the perimeter of a tray for a nice clean retail appearance. This is a fast, efficient and easy way to seal low to medium quantities of trays at an affordable price. Just look at the specifications and the pricing on the different models and accessories. The YTM-300 has a Fast Cycle Time of 6 seconds and can produce 8-10 Trays Per Minute with the ability to process one tray per cavity in a Tooling Set. Each additional cavity multiplies your Tray Production Rate. So, if you have a one cavity unit, you will produce 8-10 Trays per minute. If you have a two-cavity unit, you can produce 16-20 Trays Per Minute. Your production multiplies accordingly with the number of cavities and hence trays you put into each Tooling Set holding your tray(s). For convenience, the YTM is designed to be used as a tabletop or a bench unit.

    OPERATION (See video below.)
    After you load a tray, push the handle of the Tooling Set with tray(s) in the cavity(s) into the YTM to start a sealing cycle. Once the tray(s) are inside the YTM, Lidding Film automatically advances and is automatically applied to seal a tray. A die-cut is then automatically done around the perimeter of each tray to make a nice clean cut(s) leaving no scrap. Scrap film is automatically wound up on a scrap wheel. Sealing process completed, you then pull the Tool Set out and remove the sealed tray(s) from the cavity(s). To continue production, repeat the above steps, load trays, push the Tool Set into the YTM, the film automatically advances and starts a new cycle.

  • This machine is designed to ensure that each compartment of a tray is separately sealed.
  • Easy changeover of Tooling Sets allows you to run different trays sizes easily.
  • You have flexibility in how you use this sealer as you can set the temperature and sealing time depending on the type of tray and material thickness being used.
  • Heat Sealing
  • Replaceable and additional Tooling Sets for Trays available.
  • Requires Air compressor
  • Packed in wooden cases when shipped



  • logo

    Standard Features Include:


  • #304 Stainless Steel Frame and Aluminum Construction
  • Uses upper tooling to die cut around tray for clean retail appreance
  • Digital temp controls
  • Suitable for and will run PP, PE, PET, APET or CPET Trays
  • Adjustable sealing timer
  • Warm up time of only 5 minutes
  • Fast cycle time of 6 seconds or 8-10 PPM on single tray
  • Automatic film indexing i.e. advancing
  • Includes one set of tooling with machine
  • Semi-automatic and manual operation
  • Consistent leak proof seals
  • Low Maintenance
  • Fast and easy tooling changeover for different tray sizes in 5 minutes
  • Safe-Automatic shut off to prevent injury if safety guard activated


  • logo

    SPECIFICATIONS

    • Model :PP-YTM-300-4
    • Maximum tray height :110 mm (4.3 Inch)
    • Maximum tray length×width : sealing 1 at a time - 135 × 135 mm (5.3 x 5.3 Inch)
    • Cycle time : 6 seconds
    • Voltage : AC220V / AC110V

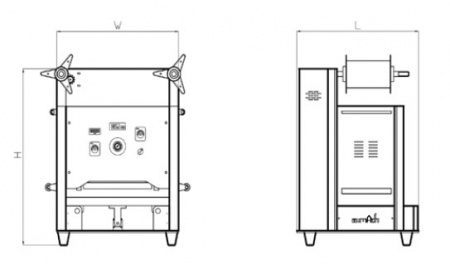

    • Machine dimensions : 550 × 640 × 650 mm (22 x 25 x 26 Inch)
    • Weight : 120 kg (264 lbs)
    • Max Film diameter : 220 mm (8.7 Inch)
    • Air pressure : 0.6-0.8 Mpa (1 CFM @60 PSI)
    • Total power : 1.8 kw (1800 watts)




    Configuration

    • PLC :MITSUBISHI FX2N
    • Pneumatic accessories :Airtac
    • Main body material :304 stainless steel
    • Mold material:6061 aluminum
    • Electrical accessoriesSchneider
    • Thermostat : MH-PT100

    logo

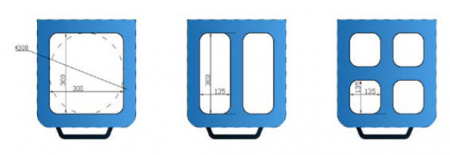

    Other Preferred Pack Model PP-YTM-300 Semi-Automatic Manual Tray Sealer


    For Order PP-YTM-300-1 Max Tray Size 300 × 300 mm (11.8 x 11.8 Inch)

    For Order PP-YTM-300-2 Max Tray Size 300 × 135 mm (11.8 x 5.3 Inch)

    Additional Tooling
    Additional Tooling for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

    OPTION
    Trays for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

    Lidding Film for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

    Date Code Ribbon Printer for PP-YTM-and PP-YTA Series Preferred Pack Tray Sealers



    Trays and Lidding Film quoted upon request.



    Optional Installation: To be performed by factory-trained service engineer. The customer is responsible for the uncrating of machine and placing it in position on floor. The customer is also responsible for bringing the necessary air and electrical requirements to the machine. The service engineer will set up machines, train operators and maintenance personal on all machine functions and routine maintenance procedures. The service engineer will make sure customer is running production and the customer is required to sign off on installation after completion. Installation and training is billed at prevailing service rates of $120.00 per hour for labor ($960.00 per day) and $100.00 per hour for travel time. Air fare, hotel, car rental and stay expenses are additional if required.

    Product Samples: Are required to make sure your equipment is set up and runs properly prior to shipment. 5-10 samples of each tray size and film are required for evaluation and testing.



    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    Manufacturer Part #: PP-YTM-300-4
    Dimensions (LxWxH): 22.00in. x 25.00in. x 26.00in.

    SPECIFICATIONS

    • Model :PP-YTM-300-4
    • Maximum tray height :110 mm (4.3 Inch)
    • Maximum tray length×width : sealing 1 at a time - 135 × 135 mm (5.3 x 5.3 Inch)
    • Cycle time : 6 seconds
    • Voltage : AC220V / AC110V
    • Machine dimensions : 550 × 640 × 650 mm (22 x 25 x 26 Inch)
    • Weight : 120 kg (264 lbs)
    • Max Film diameter : 220 mm (8.7 Inch)
    • Air pressure : 0.6-0.8 Mpa (1 CFM @60 PSI)
    • Total power : 1.8 kw (1800 watts)

    Configuration

    • PLC :MITSUBISHI FX2N
    • Pneumatic accessories :Airtac
    • Main body material :304 stainless steel
    • Mold material:6061 aluminum
    • Electrical accessoriesSchneider
    • Thermostat : MH-PT100
