Description

Tray Sealer | PP-YTM-400-1 Preferred Pack Semi-Automatic Manual Tray Sealer with One Cavity measuring 400 x 400 mm (15.7 x 15.7 Inch) with a Fast Cycle Time of 6 seconds and Production Rate of 8-10 Trays Per Minute

Ideal for:

Ready meals

Frozen foods

Bulk packaging of food items

Retail packaging

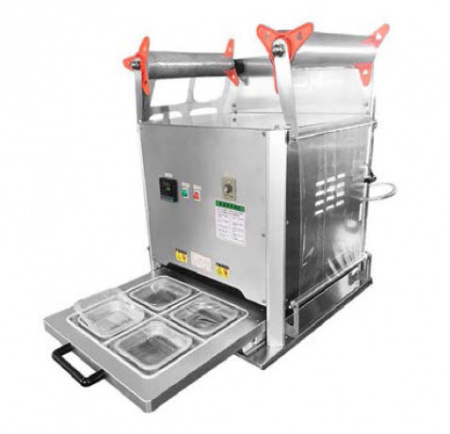

The Preferred Pack Model PP-YTM-400-1 is a Semi-Automatic, partially Manually operated “Shuttle Style”, Tray Sealer that will automatically seal Lidding Film to a tray and automatically die-cut around the perimeter of a tray for a nice clean retail appearance. This is a fast, efficient and easy way to seal low to medium quantities of trays at an affordable price. Just look at the specifications and the pricing on the different models and accessories. The YTM-400 has a Fast Cycle Time of 6 seconds and can produce 8-10 Trays Per Minute with the ability to process one tray per cavity in a Tooling Set. Each additional cavity multiplies your Tray Production Rate. So, if you have a one cavity unit, you will produce 8-10 Trays per minute. If you have a two-cavity unit, you can produce 16-20 Trays Per Minute. Your production multiplies accordingly with the number of cavities and hence trays you put into each Tooling Set holding your tray(s). For convenience, the YTM is designed to be used as a tabletop or a bench unit.

OPERATION (See video below.)
After you load a tray, push the handle of the Tooling Set with tray(s) in the cavity(s) into the YTM to start a sealing cycle. Once the tray(s) are inside the YTM, Lidding Film automatically advances and is automatically applied to seal a tray. A die-cut is then automatically done around the perimeter of each tray to make a nice clean cut(s) leaving no scrap. Scrap film is automatically wound up on a scrap wheel. Sealing process completed, you then pull the Tool Set out and remove the sealed tray(s) from the cavity(s). To continue production, repeat the above steps, load trays, push the Tool Set into the YTM, the film automatically advances and starts a new cycle.

This machine is designed to ensure that each compartment of a tray is separately sealed.

Easy changeover of Tooling Sets allows you to run different trays sizes easily.

You have flexibility in how you use this sealer as you can set the temperature and sealing time depending on the type of tray and material thickness being used.

Heat Sealing

Replaceable and additional Tooling Sets for Trays available.

Requires Air compressor

Packed in wooden cases when shipped

Standard Features Include:

#304 Stainless Steel Frame and Aluminum Construction

Uses upper tooling to die cut around tray for clean retail appreance

Digital temp controls

Suitable for and will run PP, PE, PET, APET or CPET Trays

Adjustable sealing timer

Warm up time of only 5 minutes

Fast cycle time of 6 seconds or 8-10 PPM on single tray

Automatic film indexing i.e. advancing

Includes one set of tooling with machine

Semi-automatic and manual operation

Consistent leak proof seals

Low Maintenance

Fast and easy tooling changeover for different tray sizes in 5 minutes

Safe-Automatic shut off to prevent injury if safety guard activated

SPECIFICATIONS

• Model :PP-YTM-400-1
• Maximum tray height :110 mm (4.3 Inch)
• Maximum tray length×width : sealing 1 at a time - 400 x 400 mm (15.7 x 15.7 Inch)
• Cycle time : 6 seconds
• Voltage : AC220V / AC110V

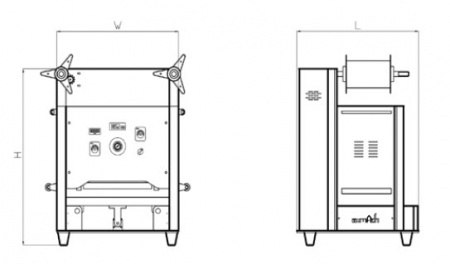

• Machine dimensions : 550 × 640 × 650 mm (22 x 25 x 26 Inch)
• Weight : 120 kg (264 lbs)
• Max Film diameter : 220 mm (8.7 Inch)
• Air pressure : 0.6-0.8 Mpa (1 CFM @60 PSI)
• Total power : 1.8 kw (1800 watts)

Configuration

• PLC :MITSUBISHI FX2N
• Pneumatic accessories :Airtac
• Main body material :304 stainless steel
• Mold material:6061 aluminum
• Electrical accessoriesSchneider
• Thermostat : MH-PT100

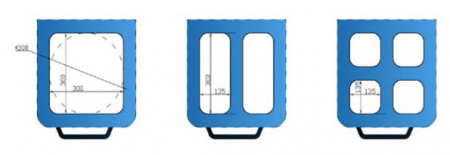

Other Preferred Pack Model PP-YTM-400 Semi-Automatic Manual Tray Sealer

For Order PP-YTM-400-2 Max Tray Size 400×185 (15.7 x 7.28 Inch)

For Order PP-YTM-400-4 Max Tray Size 185 × 185 mm (7.28 x 7.28 Inch)

Additional Tooling
Additional Tooling for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

OPTION
Trays for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

Lidding Film for PP-YTM-300 and PP-YTM-400 Series Preferred Pack Semi-Automatic Tray Sealers

Date Code Ribbon Printer for PP-YTM-and PP-YTA Series Preferred Pack Tray Sealers

Trays and Lidding Film quoted upon request.

Optional Installation: To be performed by factory trained service engineer. Customer is responsible for uncrating of machine and placing it in position on floor. Customer is also responsible for bringing necessary air and electrical requirements to machine. Service engineer will set up machine, train operators and maintenance personal on all machine functions and routine maintenance procedures. Service engineer will make sure customer is running production and customer is required to sign off on installation after completion. Installation and training is billed at prevailing service rates of $120.00 per hour for labor ($960.00 per day) and $100.00 per hour for travel time. Air fare, hotel, car rental and stay expenses are additional if required.

Product Samples: Are required to make sure your equipment is set up and runs properly prior to shipment. 5-10 samples of each tray size and film are required for evaluation and testing.
