Description

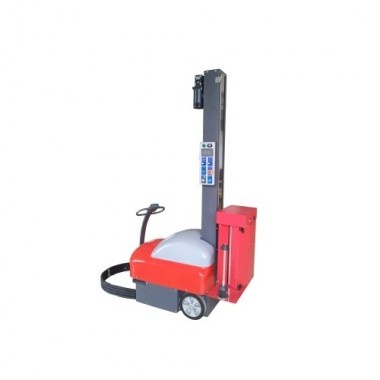

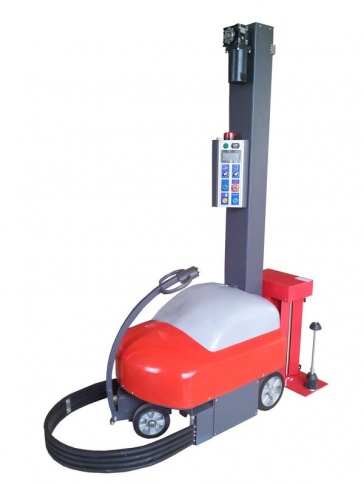

Preferred Pack PP-4510R Robot Pallet Stretch Wrapper

The PP-4510R Robot Pallet Stretch Wrapper is a versatile mobile robot for wrapping palletized loads of any shape, weight and dimension with stretch film in very short amount of time. The PP-4510R robot stretch wrapper is ideal for chemical and electronic industry , building materials and home appliances .

Features

• Wraps standard, oversized or non-square pallets

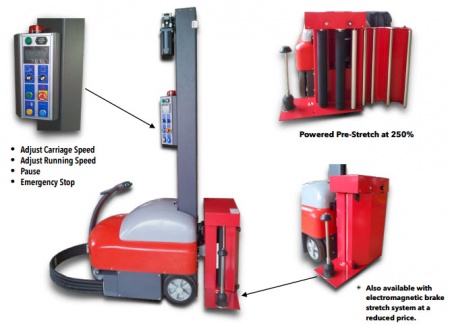

• Up to 250% pre-stretch which increases utilization and efficiency while decreasing material costs.
• Easy to program electronic controls that are highly customizable to your needs.
• Wrap pallets up to 84 inches high.
• Unit is self-propelled allowing your workforce to be more productive.
• Unit will wrap 250+ pallets per charge.
• Rotation speed up to 250 ft per minute.
• Easy way to wrap standard or oversized and nonsquare pallets
• Minimum pallet size 24 inches x 24 inches / 100Kg (220lbs)
• Power Supply: 220V 50HZ 1PH, 24vdc battery. 10 Amp
• Economically priced. Machine can pay for itself in as little as 9 months.

Product Details

• All function parameters on display
• Bottom pallet wrapping rounds from 0-10
• Top pallet wrapping rounds from 0-10
• Photocell sensing externally adjustable
• Spool carriage up/downward speed adjustable from 1,3 a 5, 4 M/MIN
• 4 separate wrapping cycles
• Double cycle (upward/downward)
• Single cycle (only upward or only downward)
• Fixed height of reinforcing wrapping rounds
• Manually adjustable wrap style

Specifications

• Control System: PLC control
• Power supply: AC220V/50-60HZ 10A
• Battery: 100AH(12V) 2 Pcs
• Battery charging time: 8-10 H
• Rated Duty Cycle: 8 H
• Drive motor power: 0.4KW (DC motor with governor)
• Lifting motor power: 0.2KW (DC motor with governor)
• Film extension motor power: 0.35KW (DC motor with governor)
• Minimum wrapping size: 600*600mm
• Maximum traveling speed: 62min/min
• Maximum Film spool diameter: 250mm
• Internal diameter: 75mm
• Film spool height: 500mm
• Machine weight: 320KG
• Maximum pallet height: 2200mm
