Steam Shrink Tunnel | Preferred Pack PP-2000M 80 Inch Long Chamber - Hi Speed Steam Tunnel

Quantity:

Price You Pay:

$11,500.00

Temporary Shipping Surcharge :

$500.00
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

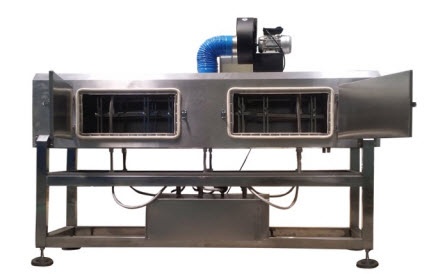

PP-2000M 80 Inch Long Chamber - Hi Speed Steam Tunnel



It is ideal for high speed applications that demand precise label registration and shape conformance. It is also an excellent option for packages involving contents that are flammable or under pressure.


The PP-2000M is 80" long system that precisely focuses steam onto specific points of the shrink-sleeved packages. The tunnel has symmetrical steam distribution tubes on each side, and each pair of tubes is externally adjustable for steam volume, flow and rotary nozzle position. Adjustments can be made "in real time," without wasting time and energy waiting for the tunnel to cool down.



Tunnel Specifications

  • Tunnel Length 80 Inchs (2032 mm)
  • Steam Tubes 6 tubes in 3 sections
  • Max Tunnel Height 13.7 Inchs (348 mm)
  • Max Tunnel Width 5.75 Inchs (146 mm)
  • Power 220V 3 Phase
  • Weight 500 lbs (230 kg)
  • Steam Consumption 53 lbs (24 kg/hr)


DEMO VIDEO










Preferred Pack PP-2000M 80" Long Chamber - Hi Speed Steam Tunnel




Preferred PackPP 2000M 2 Steam Tunnel


PP 2000M at 100+ PPM Air O Filler


If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: PP-2000M

Tunnel Specifications

  • Tunnel Length 80 Inchs (2032 mm)
  • Steam Tubes 6 tubes in 3 sections
  • Max Tunnel Height 13.7 Inchs (348 mm)
  • Max Tunnel Width 5.75 Inchs (146 mm)
  • Power 220V 3 Phase
  • Weight 500 lbs (230 kg)
  • Steam Consumption 53 lbs (24 kg/hr)
