Description

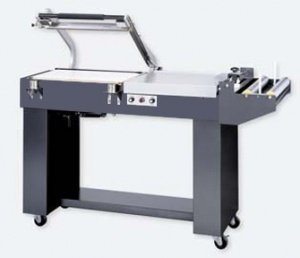

SHRINKWRAP MACHINE | Preferred Pack PP-2040A-V Semi-Automatic L’Sealers Air Operated-Vertical seal head-Moves straight up and down

Semi-Automatic L’ Sealer with magnet clamping, powered takeaway conveyor, cylinder arm return, “Micro Knife” seal system standard, stainless steel compensator assembly, automatic cycle timing, pin perf, Stainless steel film clamps, casters.

Preferred Pack manufactures a complete line of Semi-Automatic L-Bar Sealers, available in a range of sealing capacities to meet any package size. Designed for medium volume production, these machines are capable of sealing up to 20 packages per minute. Three models are available, with seal ranges from 16 x 22 up to 30 x 40 Inch, use the L-Bar Sealer to seal bags or add a shrink tunnel to create a complete packaging system, able to produce a variety of sizes of shrink wrap packages.

Model's PP1622 & PP2028 are available either with a Micro Knife seal system or nichrome wire sealer, the PP3040 models are available as a nichrome wire sealer only. The Micro Knife band ribbon reduces down time virtually eliminating broken seal wires. They are teflon coated produces fast, clean seals every time. A stainless steel compensator assembly controls “Micro Knife” temperature.

All three models come standard with the sealing bar being closed manually with automatic opening controled with the magnetic hold down cycle. To increase packaging speed, the pnuematic air powered seal bars models offer a push button control to automatically close the seal bar or the unit can be set with a timed cycle speed for hands free operation.

FEATURES

• Air Operated-Vertical seal head-Moves straight up and down
• Dual magnetic arm hold down applies seal pressure
• Powered discharge conveyor automatically transfers product into shrink tunnel
• Heavy duty steel frame construction with baked enamel finish
• Cradle style film rack for easy loading
• Multiple Pin Perf hole punch
• Heavy duty seal head return cylinder
• Independent seal and Conveyor timer
• Adjustable crank handle to raise and lower height of discharge conveyor
• Adjustable film roll guides
• Adjustable product loading tray

SPECIFICATIONS

• Seal Dimensions (L x W): 20 x 40 Inch
• Max Film Width: 25 Inch
• Machine Dimensions (L x W x H): 83 x 32 x 43 Inch
• Shipping Weight: 650 lbs.
• Power: 220Volt, Single Phase, 30 Amp
• Air - 50 PSI required for PP2028MKA model only
