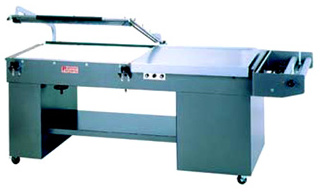

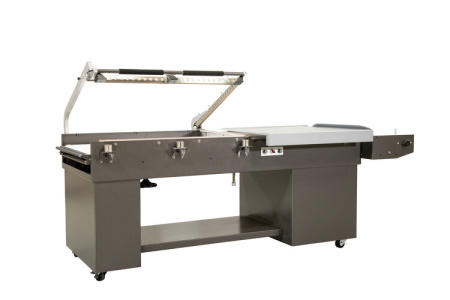

SHRINKWRAP MACHINE | Preferred Pack PP-3040W Semi-Automatic L’Sealers Wire Only

Semi-Automatic L’ Sealer with magnet clamping, powered takeaway conveyor, cylinder arm return, “Micro Knife” seal system standard, stainless steel compensator assembly, automatic cycle timing, pin perf, Stainless steel film clamps, casters.

Preferred Pack manufactures a complete line of Semi-Automatic L-bar sealers, available in a range of sealing capacities to meet any package size. Designed for medium-volume production, these machines are capable of sealing up to 20 packages per minute. Three models are available, with seal ranges from 16 x 22 up to 30 x 40 Inch, use the L-Bar Sealer to seal bags or add a shrink tunnel to create a complete packaging system, able to produce a variety of sizes of shrink wrap packages.

Model's PP1622 & PP2028 are available either with a Micro Knife seal system or nichrome wire sealer, the PP3040 models are available as a nichrome wire sealer only. The Micro Knife band ribbon reduces down time virtually eliminating broken seal wires. They are Teflon-coated and produce fast, clean seals every time. A stainless steel compensator assembly controls the “Micro Knife” temperature.

All three models come standard with the sealing bar being closed manually with the automatic opening controlled with the magnetic hold-down cycle. To increase packaging speed, the pneumatic air-powered seal bars models offer a push-button control to automatically close the seal bar or the unit can be set with a timed cycle speed for hands-free operation.

FEATURES

• Wire Only
• “Triple Magnetic Hold Down” Operator simply lowers seal bar and magnets automatically holds seal bar down during seal cycle to seal and cut film freeing operator to get next package ready
• “Power Belted Discharge Conveyor” when seal cycle is complete conveyor automatically transfers package from L’ Sealer into shrink tunnel increasing cycle speeds.
• Crank handle adjusts depth of discharge conveyor for taller packages
• Stainless Steel Compensator Assembly - Controls wire temperature without overheating wire that causes film and Teflon tapes to burn
• Heavy Duty Composite Laminate Strips under seal wire improve seal integrity and increase wire life
• Independent front and side sealing wires
• Heavy Duty welded steel frame construction with powder coated finish
• Cradle style film rack will hold up to 35 Inch wide film
• Dual Pin perf hole punch
• Dual seal head return cylinders
• Stainless Steel film clamps
• Independent seal and conveyor timer
• Heavy duty locking casters
• Uses .036 Ni-Chrome sealing wire
• Heavy duty loading tray.

SPECIFICATIONS

• Seal Dimensions (L x W): 30 x 40 Inch
• Max Film Width: 35 Inch
• Machine Dimensions (L x W x H): 83 x 32 x 43 Inch
• Shipping Weight: 650 lbs.
• Power: 220Volt, Single Phase, 30 Amp
• Air - 50 PSI required for PP2028MKA model only
