Description

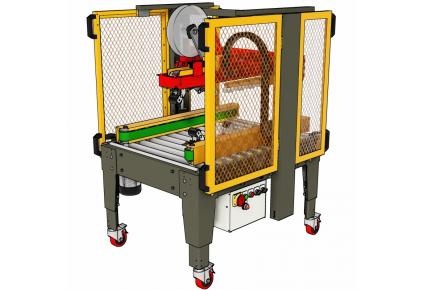

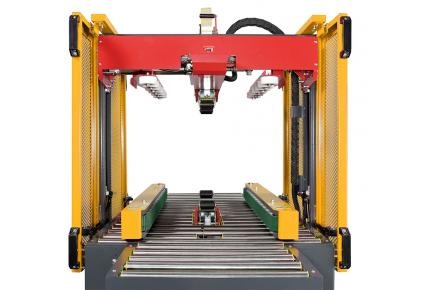

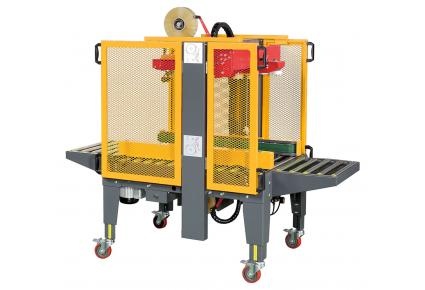

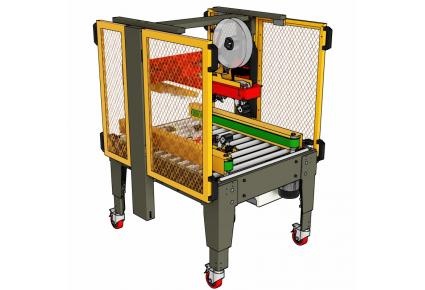

Carton Sealers | Preferred Pack PP-555AU-3 Random, Semi-Automatic with 2 Side Drive Belts

Overview

• Operation flexibility with regular and memory modes
• Suitable for many different box sizes,
• Designed for heavy loads, up to 50kg (110lb).
• Robust design, Easy to operate, Easy maintenance
• Made in Taiwan, Quality assurance.

FEATURES

• PLC
• Regular mode (random case sizes)
• Memory mode (uniform case sizes)
• Search height sensor

• Both side compression rollers
• Top mast with cushion to avoid case jammed
• Roller table

SPECIFICATIONS

• Power :1 Phase, 110/220V, 50/60Hz
• Tape Head :1 Phase, 110/220V, 50/60Hz
• OPP : 2"/ 3"( Please advise when ordering)
• Min.Sealing Size (LxWxH) : 2"OPP:> 300 x 120 x 150 (mm) > 11.8 x 4.7 x 5.9 (in)
  3"OPP: > 300 x 145 x 150 (mm) > 11.8 x 5.7 x 5.9 (in)
• Max.Sealing Size (LxWxH) : 2"OPP: ? x 500 x 500 (mm) ? x 19.7 x 19.7 (in)
  3"OPP: ? x 500 x500 (mm) ? x 19.7 x 19.7 (in)
• Tape overlap : 2'' OPP: 60±5 (mm) 2.4±0.2 (in) 3'' OPP: 40±5 (mm) 1.6±0.2 (in)
• Working table height : 550~810 (mm) 21.7~31.9 (in)
• Max. loading weight : 30 (kg) 66 (lb)
• Capacity : 8 boxes/min. For box length 300mm (Belt speed 20 M/min)
• Net Weight : 230 (kg) 507 (lb)

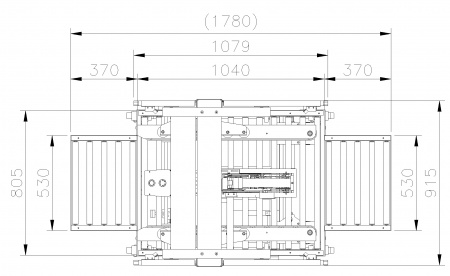

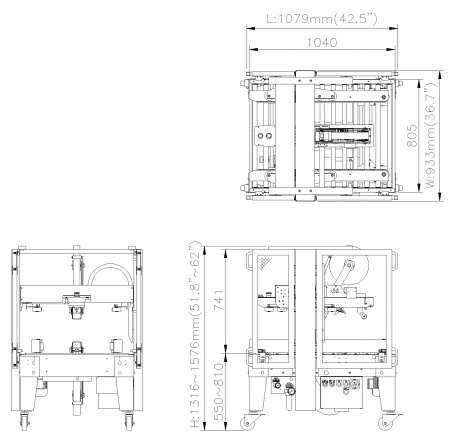

• Machine Size (LxWxH) : 1319 x 930 x 1316~1576 (mm) 52 x 36.6 x 51.8 x 62 (in)

OPTION

• 60 sec. auto-stop
• 3 phase, 220/380/415/440V
• Detection for no tape, sealing failure,and tape not cut off

• Safety fences
• Extension Roller Table
• Tape overlap 70±5mm
• Tape overlap 95±5mm
• Customize sealing size
• Outside diameter of OPP Tape 340mm (13.5")
• Roller table

• Combine with case erector, or case strapper

• Stainless steel structure SUS #304
