Preferred Pack PP-983 HP Pallet Wrapping Machine with 250% Power Pre-Stretch


Price You Pay:


Estimated Oversize Handling Fee :

Yes! This Item Is In Stock!
In Store
Same Day




Preferred Pack PP- 983HP Pallet Wrapping Machine - Stretch Wrapping Machine with 250% Power Pre-Stretch for Increased Film Yields.

The Preferred Pack PP-983 HP is a semi-automatic high-profile pallet stretch wrapping machine with 250% power prestretch and a 4000-pound load capacity. This machine also has a photo eye and "easy thread design" as standard features. (The PP-983 LP, Low Profile Model, is the same as the PP-983 HP but includes a ramp.)

Standard Features:

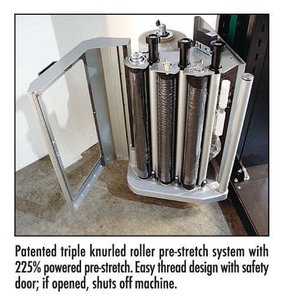

  • 250% Pre-Stretch: 3 ft. of film going through pre-stretch rolls comes out 10 ft. of film onto load. Another pre-stretch gearing is available with a simple sprocket change.
  • Photo Eye: Will automatically seek the height of pallet load
  • Reinforcing Wrap: Allows the machine to apply multiple wraps at any desired location
  • Home Position: Turntable always returns to original position
  • Automatic or manual operation switch
  • Adjustable wrapping tension
  • Adjustable turntable speed
  • Adjustable carriage elevator speed
  • Film Break Re-Start: If the film breaks during operation, simply press the START button again to continue the program cycle. No need to start from the beginning again.
  • Top and Bottom Wrap Counter: The operator can select the number of wraps on top or bottom of the load.
  • Film carriage security door with safety interlocks: If the door is opened, the machine will automatically be shut off.
  • Emergency stop switch: When activated, will shut off the machine.

    PP 983 Specifications:
  • Power Requirements 115 Volt, 1 Phase 15 Amp
  • Maximum Load Size 48 L x 48 W x 85 H
  • Maximum Load weight: 4,000 lb. Dynamic

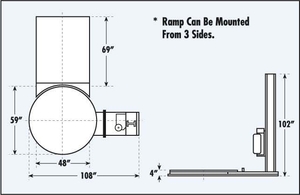

  • Machine Dimensions 96 L x 58 W x 109 H Inches
  • Crated Size 120 L x 62 W x 30 H inches
  • Estimated Shipping weight: 1,500 lbs.
  • Turntable 59 inches diameter
  • Turntable Drive Variable speed 0-15 RPM; 1 HP DC drive
  • 30-40 Loads Per Hour
  • Stretch 250% Pre-stretch
  • Turntable Drive Method

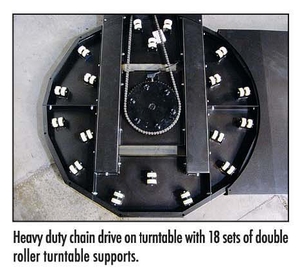

  • Heavy duty chain drive
  • Turntable Support Heavy Duty Delrin Rollers w/Sealed Bearings (very quiet)
  • Carriage Elevator Variable speed

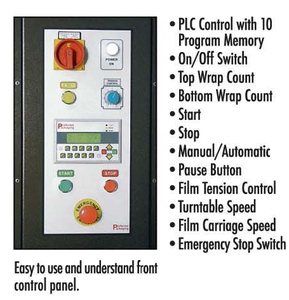

  • Controls Omron Relays and Inverters
  • Forklift Portable
  • Positive Alignment
  • Warranty 3 years on all components
  • CE Approved - Exceeds OHSA Safety Standards.

    Optional Features:
  • 72" Diameter Turntable
  • Tower Extension to 105"
  • Base Extension
  • Load Stabilizer - Top Pressure Plate
  • Weight Scale Packages

    • 5,000 capacity turntable 983 only
    • 105 inch Wrap height
    • 72 inch Diameter turntable
    • Extra Ramp
    • Pneumatic Top Pressure Plate for PP 983 Only. * Air required
    • Base Extensions-24 INCHES
    • PP-983 5,000 lbs weight Scale Packages using load cells
    • Photo Eye-PP981
    • Insta cut - Automatic film severance for PP-983 only
    • Automatic film cut off and attachment uses remote start lanyard

  • Specifications

    Manufacturer Part #: PP-983 HP
    Dimensions (LxWxH): 96.00in. x 58.00in. x 109.00in.
