Description

CHECK REPLACEMENT TAB ABOVE TO ORDER PARTS AND SUPPLIES. MOST COMMON REPLACEMENT PARTS SHOWN BELOW.

PLEASE CALL FOR A SHIPPING QUOTE.

Due to the size and weight of a Shrinkwrap Machine and the unique delivery circumstances involved, each shipment and delivery is custom. To make entering your order for a Shrinkwrap Machine easier, we show FREE Shipping on the site and in the Shopping Cart. After you submit your order, we'll contact you for information to calculate a precise shipping cost. We set up our Shopping Cart to gather information; you are NOT charged when you go through it. Just to let you know, we will not charge you for the Shrinkwrap Machine or Shipping without your agreement.

Preferred Pack PP1622-MK Combo L'Bar Sealer and Shrink Tunnel System on One Frame

Compact, Portable, and Affordable

PP1622MK-Combo L'-Sealer and Shrink Tunnel are built on the same frame. It is the first fully adjustable Combination L-Sealer with attached Shrink Tunnel, including the latest Micro Knife Technology. No more seal wires to replace! The L-Sealer is 16 x 22 inches and mounted on linear bearings, easily moves forward or backward to center the product into the Tunnel, and the Discharge Conveyor on the L-Sealer also adjusts up and down. The Shrink Tunnel is 18W x 28L x 8H inches and features a fully recirculating air chamber with live roller rod conveyor, digital temperature control, adjustable air velocity, and a convenient crank handle to adjust the tunnel up and down to match sealer conveyor height. The unibody frame makes this unit easy to move around. Includes one 8ft power cord.

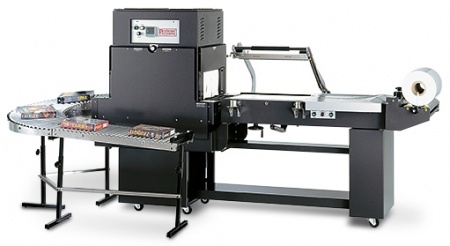

Picture shows Optional 180-degree Curved Conveyor. Also available with 36-inch Diameter Lazy Susan Product Accumulator.

FEATURES

• Standard Features of the L'Sealer
• Micro-Knife Band Ribbon (Optional, has 1 year warranty)
• Power Belted Discharge Conveyor
• Dual Magnet Clamping
• Pin Perf. Hole Punch
• Variable Dwell/Seal Time
• Stainless Steel Compensators
• Seal Size 16" W x 22" L
• Seal Head Return Cylinder
• Stainless Steel Film Clamps
• Locking Casters
• Linear bearings allow forward or backward movement
• Easy-load film cradle with brake
• Available Options:
• Micro Knife Band Ribbon (1 year warranty)
• Air operated push button seal head with automatic cycle timing
• Powered film unwind
• Adjustable inverting head
• Stainless steel frame

Standard Features of the Shrink Tunnel

• Fully re-circulating air chamber
• Live or dead roller rod conveyor
• Digital temperature control
• Adjustable air velocity control
• State-of-the-art AC Variable Speed Drive
• Chromed conveyor rollers and shafts (no rust)
• Automatic tunnel cool down with shut off
• Sealed bearings on drive and idler shafts
• Chamber size 18" W x 8" H x 28" L
• Quietest tunnel on the market
• Heats up to 300° F in less than 10 minutes
• Thermal overload protection on all motors
• Locking casters with leveling screws
• Anti-jam safety features on conveyor
• Easily adjustable crank handle allows for tunnel height adjustment
• Available Options: Tunnel height of 12" opening available (Ask us about the PP1808-28 SS)

Combo Specifications:

• Seal Dimensions (L x W): 16" x 22"
• Max Film Width: 20"
• Tunnel Opening (L x W x H): 28" x 18" x 8"
• Machine Dimensions (L x W x H): 103" x 32" x 62"
• Shipping Weight: 950 lbs.
• One Power Source:
• 220Volt, Single Phase, 45 Amp

Common Replacement Parts for the Preferred Pack PP-1622MK Shrink-wrap Machine

Customers who order one of the five (5) Replacement Parts listed and linked below usually order one or more of the others. It is always recommended that the operator change out the Transite Channels at the same as the Band Ribbon Micro Knife.
This is because by the time the Band Ribbon requires changing, the Transite Channels are worn out as well and it will be problematic to insert a new band ribbon.

Transite Channel Set 3 mm (3440-70/71) for Preferred Packaging PP1622MK

Preferred Pack PP-1622MK Part 3440-72 Teflon-coated Micro-Knife Band Ribbon (3mm x 43 Inches)

Seal Pad Sponge Set (3450-15/20-1622) for Preferred Packaging PP1622MK

Teflon Tape (6083-10-1/2) (10mil x 10 Yd)| One-half 1/2-inch x 10mil x 10 Yard Rolls for Shrink Wrap Machine - 776125

Teflon Tape (6083-10-3/4) (10mil x 10 Yd)| Three-Forth 3/4-inch x 10mil x 10 Yard Rolls for Shrink Wrap Machine
