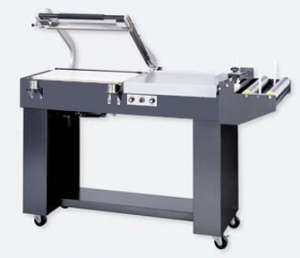

Preferred Pack PP2028-SS Stainless Steel Shrink-wrap L-Sealer Seal System

The PP2028-MK is our hottest-selling L-sealer Shrink Wrapping Machine! The Micro-Knife Seal System uses a Teflon-coated ½ Micro-Knife to produce a clean, straight seal every time. The PP2028-MK has the PP2028 Standard Series features: Semi- automatic L-Sealer with Magnet Clamping, Powered Takeaway Conveyor, Cylinder Arm Return, Teflon-coated Micro-Knife Seal System, Stainless Steel Compensator Assembly, Automatic Cycle Timing, Pin Wheel Perforator, Film Clamps, and Casters.

FEATURES

• Stainless Steel Compensator Assembly: Allows operator to adjust the Micro-Knife temperature. Precise control of heat means consistent seals every cycle.

• Power Belted Product Discharge: Conveyor, automatically transfers product into Shrink Tunnel.

• Dual Magnetic Arm Hold Down: Ensures positive even seal pressure to assure strong seals every time.

• Dual Seal Head Return Cylinders: Provides smooth seal head action. No bouncing.

• Stainless Steel Film Clamps: Assures both sheets of film are flat on the Seal Pad releasing all tension from the seal ensuring a strong seal every time.

• Digital Temperature Controls: For Hot Knife Seal Systems assures precise settings.

• Pin Wheel Hole Punch: Places multiple rows of holes to allow air evacuation from package. Saves the expense of purchasing pre-perforated film .

• Quick Film Changeover: Cradle Style Film Rack with Roll Brake.



SPECIFICATIONS

• Seal Area: 20 W x 28 L Inches.
• Power: 220 volts - 20 amps - single phase
• Machine Dimensions : 83 x 32 x 43 (L x W x H) Inches
• Net Weight: 650 lbs.
• Shipping Dimensions: 72 x 36 x 48 (L x W x H) Inches
• Shipping Weight ; 650 lbs. On Pallet it is 800 lbs. Ships by Freight Carrier.
• Max. Film Width : 25 Inches

AVAILABLE OPTIONS

• Push Button Air Operated Seal Head with Automatic Cycle Timing
• Push Button Air Operated Vertical Seal Head- Accepts Tall Packages
• Powered Film Unwind
• Adjustable Inverting Head
• Teflon Diaper Seal Wire Cover for PVC or Polyethylene Film
• Portable Film Scrap Take Up Wheel
• Left to Right Product Flow
• SHIPPING AND HANDLING ARE ADDITIONAL. CALL FOR SHIPPING QUOTE

Common Replacement Parts for the Preferred Pack PP-2028MK Shrink-wrap Machine

Customers who order one of the five (5) Replacement Parts listed and linked below usually order one or more of the others. It is always recommended that the operator change out the Transite Channels at the same as the Band Ribbon Micro Knife.
This is because by the time the Band Ribbon requires changing, the Transite Channels are worn out as well and it will be problematic to insert a new band ribbon.

Transite Channel Set 3 mm (3450-90/91) for Preferred Packaging PP2028MK

Micro Knife Sealing Band Ribbon 3mm (3450-75-3mm) for Preferred Packaging PP77ST and PP2028MK

Seal Pad Sponge Set (3450-15/20-2028) for Preferred Packaging PP2028MK

Teflon Tape (6083-10-1/2) (10mil x 10 Yd)| One-half 1/2-inch x 10mil x 10 Yard Rolls for Shrink Wrap Machine - 776125

Teflon Tape (6083-10-3/4) (10mil x 10 Yd)| Three-Forth 3/4-inch x 10mil x 10 Yard Rolls for Shrink Wrap Machine
