Description

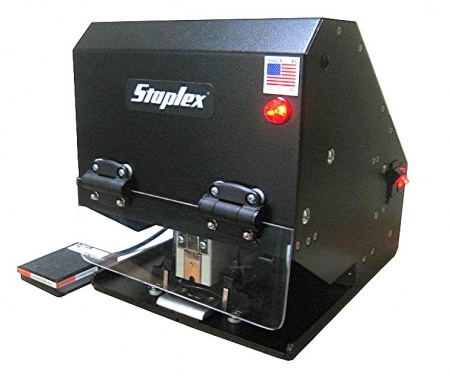

Staplex SU-100N 4 Inch Reach 120 Sheet Ultra Heavy Capacity Electric Stapler (SU-100)

Staplex Model SU-100N Ultra Heavy Capacity Electric Stapler makes heavy-duty table-top binding affordable to everyone! 500% faster than any other way to staple or bind! The SU-100N is the newest version of the reliable SU-100 from Staplex. Saves time, money and effort! Solid-state electronics, direct-drive solenoid, durable cast aluminum housing, and all steel staple mechanism are designed for rugged use- day after day, year after year!

Model SU-100N eliminates fatigued hands caused by conventional manual staplers!
Great for all heavy capacity stapling- in office, print shop and reprographics areas, packaging, and shipping department. Staple paper, corrugated, plastic, cardboard, cloth, or virtually anything!

Use Model SU-100N for reports, documents, computers, and laser printouts, bookies form pads, coupon and checkbooks, legal, tax and accounting documents and much, much more! Wide opening, dual adjustable backstops, and electronic footswitch assure fast, accurate, neat staple positioning. Put a Staplex SU-100N to work for you today! Satisfaction guaranteed!

Staplex Model SU-100N Ultra is generally recommended for stapling 20+ sheets of 20 lb. paper. Model SU-100N requires that the proper size staple be used for each stapling job based on the number of sheets of paper being stapled as noted below. In other words, you cannot use the HO-5/8 5/8" staple to staple 25 sheets as of 20 lb. paper because the staple leg length would be too long for that job. The right leg of staple should n\ be a minimum of 1.25' (3.2 cm) from the right edge of the material to activate safety micro switch attached to the adjustable locking backstop on the right side of the stapling head. Optional additional left side contact safety microswitch available on a special order ( to allow positioning right leg of the staple closer than 1.25" from the right edge of the material.)

Staple up to 120 sheets of 20-lb. (75 g/m2) paper or equivalent at the tap of electronic footswitch!

Re-loads in seconds with 4 sizes of staples, 3/8", 1/2, and 5/8"

"Hi-Low" switch to adjust stapling impact delivers the right stapling power every job

Portable, no mounting, sets on desk, table, bench

Direct-drive solenoid for a tight, positive clinch

Dual adjustable locking backstop to 4 inches (10.2 cm) depth for super neat stapling!

Jam-proof all steel staple mechanism

Staple paper, corrugated, plastic, cardboard, cloth, and more!

Made in U.S.A.

Uses Staplex Type HO-1/4, HO-3/8, HO-1/2, and HO-5/8 High-Speed Staples. (See below for capacities.)

Completely portable. No mounting required.

Models:

Model SU-100: Ultra Heavy Capacity Electric Stapler 110-125 volts, 50-60 Hz AC
Model SU-100A: same as above for 220-330 volts, 50-60 Hz AC

Staplex High Speed Staples

for Model SU-100 (1,000 per box):

Type HO-1/4 Inch High Speed Staples (up to 20 sheets)

Type HO-3/8 Inch High Speed Staples (20 to 50 sheets)

Type HO-1/2 Inch High Speed Staples (50 to 80 sheets)

Type HO-5/8 Inch High Speed Staples (80 to 100 sheets)

Type HO-11/16 Inch High Speed Staples (Up to 120 sheets)

Notes: Right leg of staple should be minimum of 1.25 Inch (3.2 cm) from right edge of material to activate safety microswitch attached to the adjustable locking backstop on the right side of the stapling head.

Optional left side contact safety microswitch available on special order (to allow positioning right leg of staple closer than 1.25" from the right edge of material.)

Weight : 22 lbs. (10 kg)
Dimensions : inches: 10 wide, 10 deep, 10 high (26.7 cm x 26 cm x 25.4 cm).
