Description

Widmer E-3 Electric Seal Embosser. Seal Diameters: 1-5/8, 1-3/4 or 2 inches. Text Seal included. Custom Seals are available and additional.

The Widmer E-3 Electric Embosser is instantaneous, accurate and economical! The Widmer E-3 is perfect for single sheet and two-part carbonized forms, as well as certificates, diplomas, and legal papers.

The Widmer E-3 is a single hand operation, no buttons to push. It features a trigger mechanism that can be set to stamp at the same depth consistently and accurately, with guide shelves that allow for exact document positioning every time. Stamping pressure can be electronically adjusted so that dies do not cut through the document.

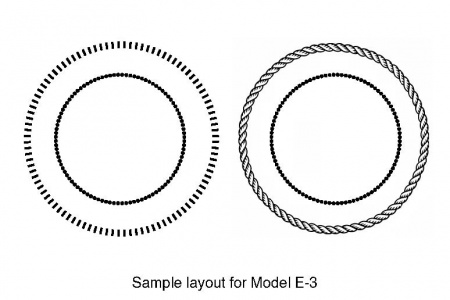

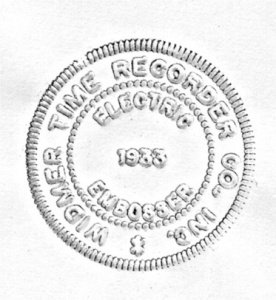

Embossing Seals are custom engraved for standard license ring text and intricate center ring artwork.

Seal imprint starts 1/8 inch from the edge of the document, or up to a maximum of 2 1/2" from the edge of the document to the centerline of the seal..

To operate, simply plug into an ordinary AC lighting circuit andi insert paper into throat to emboss your paper.

Available Options

Foot Pedal Stamping

Push Button Stamping

Security Lock

Guide Shelf (Shown in picture above.)

Visual Counter

Also available for 220 voltage.

Specifications

7 1/4" H x 4 3/4" W x 10" D

18.4 cm H x 12cm W x 15.4 D

Shipping Weight: 17 lbs, 6.3 kg.

Two-tone light & dark grey finish


Options Available on all Models T,D,N,776,776-E,O,R,S,C,E,TV

Engraving:
a. One straight line, max. of 25 characters
b. Each additional line up to 4 lines total
c. Straight line borders
d. Signatures (see S-3 for required information)
e. Background for signatures (dots, broken lines or waves)
f. Foreign month wheel

removable die-upper and/or lower position (RSU or RSL)

removable die-upper and/or lower position 776 (right side only)

six-sided word cylinder feature

six-sided word cylinder feature for 776

reverse print for locating imprint on bottom of document (except 776)

reverse print for locating imprint on bottom of document, Model 776

extension trigger for print locations less than 1-3/16￢?? from edge of paper

remote control stamping 110/60 Hz

fixed guide platform for correct position of forms

adjustable guide shelf (except 776, 776-E)

adjustable guide shelf for 776, 776-E

electric security lock

visual counter

voltage and/or cycle other than 110V/60 Hz (except QD-2000)

voltage and/or cycle other thatn 110V/60 Hz, Model QD-2000

push button or foot treadle stamping

ribbons 1000 tri-color (QD-2000, S-3 & CC-3)

ribbons 1000 tri-color (T,M,D,N,O,OSL & R Models)

ribbons 1016 (776 Model) single or double

ribbons tri-color for Model TV-776

blank RSL or RSU dies

blank T dies

blank O dies

blank R dies

blank S dies

die holder for S-3

blank MMU

lighted digital time display-LED

ribbon cassette for WTV T-4U, T-4U & WTV-175 time stamp

operator adjustable trigger for Models T,D,N,776,O,R,S, & C
