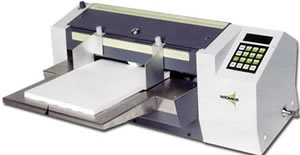

Widmer RS-B-C (RS-BPC) Paper Counter and Paper Counting Machine

Are you counting paper? Do you need a counting machine for paper? The Widmer RS-BPC is an accurate paper counter and paper counting machine!. The RS-BPC can count documents of widths up to 16 inches and virtually unlimited lengths. With modifications - documents smaller than 2-7/8 inches in length and width can also be counted. Call or E-mail us if your documents are smaller than those dimensions.

The RS-B was designed to be an all-in-one document and check signer/endorser loaded with helpful features that get your job done quickly and efficiently. We have found that it also can be used as an accurate paper counter and paper counting machine. The specially modified RS-BPC when used as a paper counter it can give you reliable and accurate counts and also batch! Because the print functions are not being used a broader range of paper sizes can be processed through the machine.

The RS-B unit is equipped with a stacker for processing hundreds of documents unattended. The RS-B can accommodate documents from 2.875" to 15" wide and 2.875 to 16" long. Up to 9 pre-programmed jobs can be stored for different types documents via the touch control panel.

Security access and unauthorized use is controlled by assigning users unique pin codes from the touch control panel and there is a manual key lock over-ride for complete lockout.

This base model does not include any dies. Users can purchase custom dies to meet their needs.

A signature form will be sent upon purchase to be submitted to the manufacturer. This form will be used to create a customized signature or endorsing plate.

Specifications

Dimensions: 9" x 24-1/2" x 12"

20" extension tray

Weight: 55 lbs.

Shipping Weight: 65 lbs.

In shipment box: 29 x 17 x 15 inches Weighs 65 lbs | Out of the box: H 9 W: 24.5 and Length 12 Inches (Front to Back and with extension tray added: 20 inches)

Maximum Speed: 12,000/hr. or 200/minute (with 3-1/2" check)

Maximum Paper Size: 15-1/2" x 16"

Minimum Paper size: 2-7/8" x 2-7/8"

Power: 120V / 60Hz

Hopper Capacity: 200 Single Ply Optimum/300 Single Ply Maximum

Roller Life: 750,000 Impression (estimated)

Drum Selection: Imprint, Signature, Date.

Extras for RS Series

Single signature and saddle

Extra signature

Border or background

4 lines of text and saddle

Each additional line of text

Logo

Saddle, blank S& O

Saddle, blank D-Date or N-Number

Saddle, blank MN-Number

Saddle, blank DMN-Date and Number

Drum, S & O

Drum, wheels date (D)

Drum, manual set wheel number (MN)

Drum, manual set wheel date and wheel number (DMN)

Ink roller black (Standard)

Ink roller, Red or blue

Ink roller, tri-color

Saddle with base lock type segments date or number

Saddle with base lock type segments date and number

Double document detector

Shipping Information: Shipping Dimensions: 29 W. x 17 D. x 15 H. Inches. Shipping Weight: 65 lbs.

For Replacement Rollers Click on the Accessories Tab Above.
For Other RS Models Click on the Related Items Tab Above.
