Description

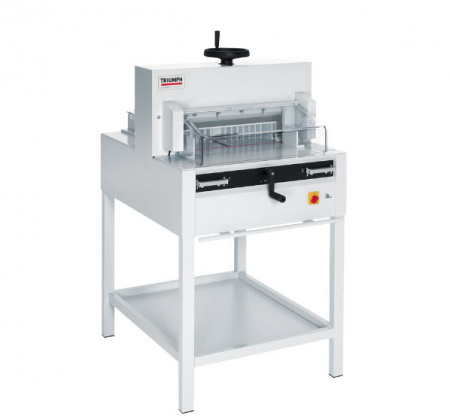

MBM Triumph 4815 18 5/8 Inch Semi Auto Matic Programmable Electric Paper Cutter (CU0418)

FEATURES

• Cutting Width: 18 5/8 Inch (473 mm)
• Cutting Height: 3 Inch (76 mm)
• Length Behind Blade: 18 Inch (457 mm)
• Narrow Cut: 1 Inch (25 mm)
• Clamp Type: Spindle

Product Details

• Blade Material: German steel
• Horsepower: 1 1/2
• Electrical Requirements: 115 V. 60 Hz.
• Dimensions (D x W x H): 41 1/2 x 30 x 55 1/2 Inch (1054 x 762 x 1410 mm)(53 W (1346 mm) with side tables)
• Shipping Weight: 531 lbs. (241 Kg) (552 lbs (250 Kg) with side tables)

DEMO VIDEO

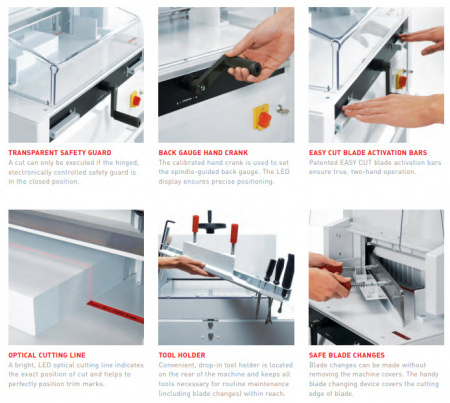

Safety Features

• Patented easy cut electronic blade activation bars for true two-hand operation
• Transparent, electronically controlled front safety guard
• Safety cover on rear table
• Main switch and safety lock with key
• 24 volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade return from every position
• Disc brake for instant blade stop

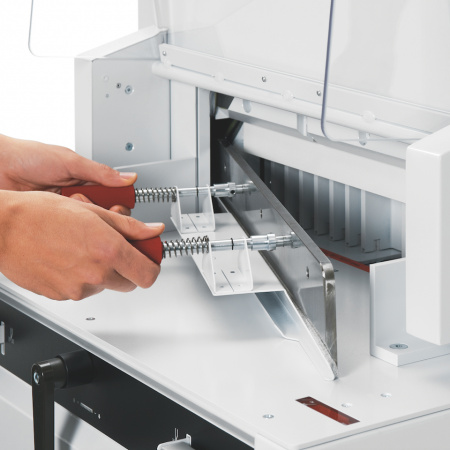

• Blade changing device covers cutting edge of blade
• Blade depth adjustment from outside of machine
• Blade and cutting stick can be changed without removing covers

Characteristics

• Powerful, semi-automatic cutter with electric blade drive, manual spindle clamp, and EASY CUT blade activation
• Ergonomic, 37" working height
• Electric blade drive

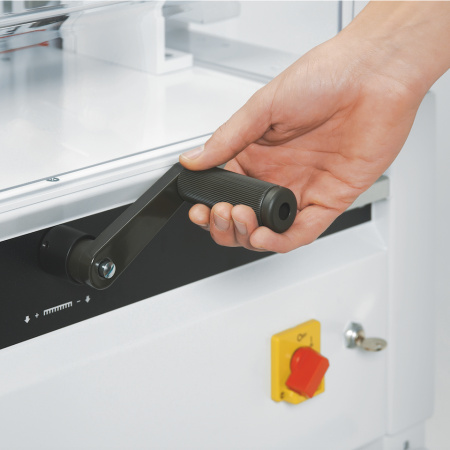

• Spindle-guided back gauge with calibrated crank
• Front table digital display (cm or inches) for precise back gauge positioning

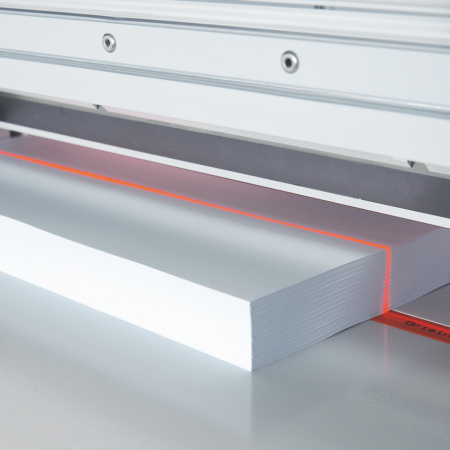

• Bright, LED optical cutting line
• Adjustable back gauge with narrow separations and plastic gliders
• Manual spindle clamp is guided on both sides to apply even pressure along entire cutting width
• Dual side guides on front and rear tables
• High quality, German steel blade
• Solid steel blade carrier and adjustable blade guides
• All-metal construction
• Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
• Optional side tables increase work surface
• UL and C UL approved

• 1-year limited warranty, excluding wearables
