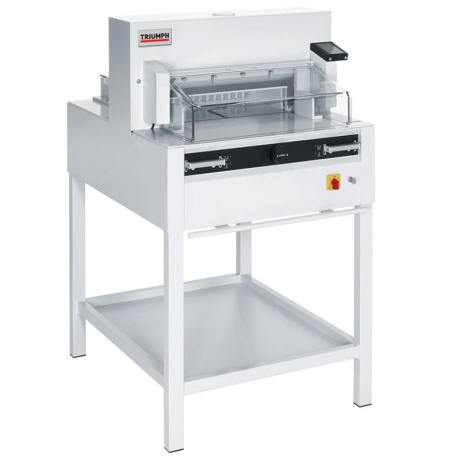

MBM Triumph 4855 18 7/10 Inch Automatic Programmable Paper Cutter - CU0419

The MBM Triumph 4855 programmable paper cutter offers advanced, precise, high-volume cutting functionality. Equipped with an automatic clamp and power back gauge, it ensures fast and accurate cuts for various paper sizes. The user-friendly digital touchpad allows for easy programming and control, streamlining operations and enhancing efficiency. Perfect for offices, print shops, and commercial environments, the Triumph 4855 paper cutter provides consistent, high-quality results with minimal effort. Built for durability and reliability, this cutter is ideal for businesses seeking a powerful solution for large-scale paper cutting with precision and ease.

PLEASE CALL FOR A SHIPPING QUOTE.

Due to the size and weight of a Cutter and the unique delivery circumstances involved, each shipment and delivery is custom. To make entering your order for a Cutter easier, we show FREE Shipping on the site and in the Shopping Cart. After you submit your order, we'll contact you for information to calculate a precise shipping cost. We set up our Shopping Cart to gather information; you are NOT charged when you go through it. Just to let you know, we will not charge you for the Cutter or Shipping without your agreement.

Features

• Electric Paper Cutter
• Cutting Width: 18.7 Inch
• Cutting Height: 3.14 Inch
• Length Behind Blade: 18 Inch
• Narrow Cut: 1.37 Inch
• Clamp Type: Automatic

Product Details

• Item #: CU0419
• Blade Material: German steel
• Horsepower: 2
• Electrical Requirements: 115 V. 60 Hz., 20-amp dedicated line
• Dimensions (D x W x H): 39 x 30 x 51 Inch (53 W with side tables)
• Shipping Weight: 482 lbs. (501.5 with side tables)

Safety Features

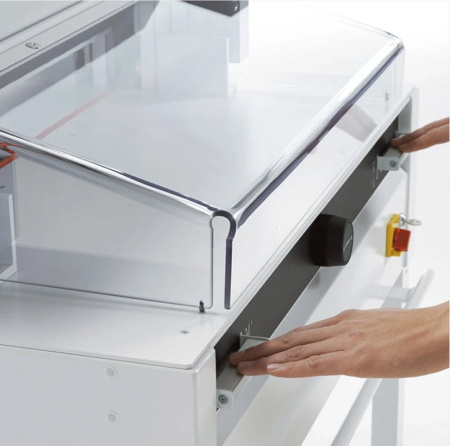

• Patented EASY CUT electronic blade activation bars for true two-hand operation

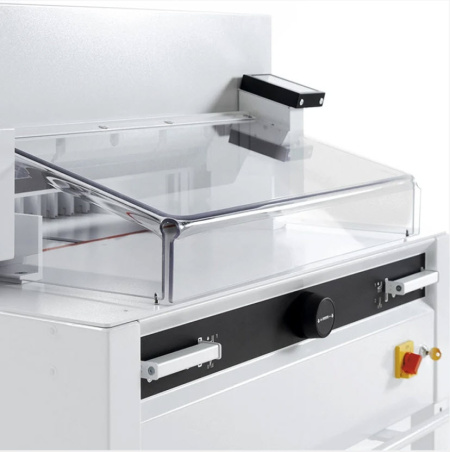

• Transparent, electronically controlled front safety guard
• Safety cover on rear table
• Main switch and safety lock with key
• 24 volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade return from every position
• Disc brake for instant blade stop
• Blade changing device covers cutting edge of blade
• Blade depth adjustment from outside of machine
• Blade and cutting stick can be changed without removing covers

Characteristics

• Programmable cutter with automatic clamp, power back gauge, and digital touchpad
• Electric blade and clamp drive

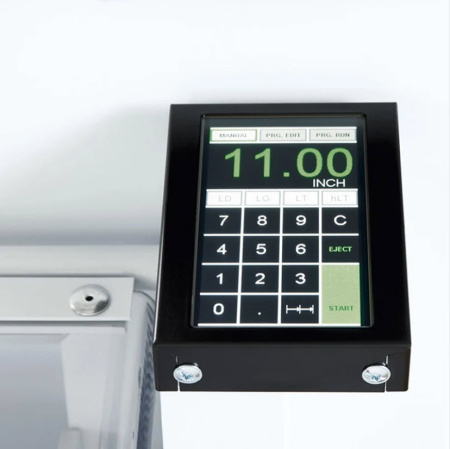

• Electric back gauge drive with touchpad for easy programming
• Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
• Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
• Pre-programmed for standard paper sizes
• Memory key for repeat cuts
• Automatic SET function for reference measurement and EJECT function for pushing out paper
• Self-diagnostic system with error indication on display
• Electronic hand wheel with variable speed control for manual back gauge setting
• Bright, LED optical cutting line
• Adjustable, spindle-guided back gauge with narrow separations and plastic gliders
• Dual side guides on front and rear tables
• High quality, German steel blade

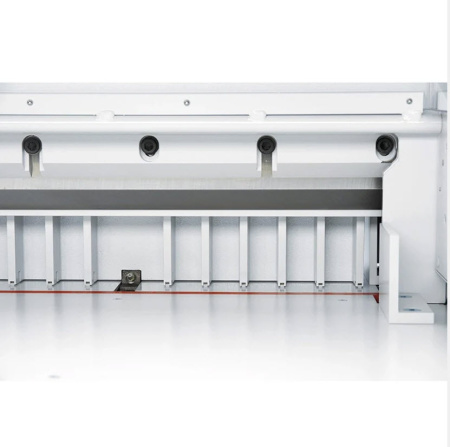

• Solid steel blade carrier and adjustable blade guides
• All-metal construction

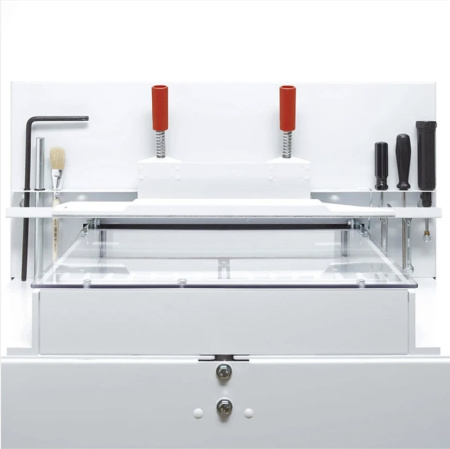

• Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
• Optional side tables increase work surface
• UL and C UL approved

Warranty

• 1-year limited warranty, excluding wearables
