Description

MBM Triumph 5255 20 3/8 Inch Programmable Cutter Package (CU0490P)

Programmable Cutter with 600 Sheet Capacity, 20.37 Inches Cutting Length and 1.37 Inches Narrow Cut with Cutting Stick, Cutting Knives, and Side Tables

The MBM Triumph 5255 Electric Paper Cutter is a programmable machine that provides you with precision and accuracy at best. The machines unique feature is its LED display that is required for the back-gauge positioning also has the capacity to store 99 programs with 99 steps in each of them. The 5255 Electric paper cutter is a semi-automatic machine with an electric blade drive which saves times and cuts a bulk easily. The machine has a cutting width and height of 20 3/8” and 3” respectively. The cutter is equipped with variety of features that aid in measurement like control module, electric blade, clamp, back gauge, electronic hand wheel and an automatic clamp. Moreover, the machine has several safety features that makes the operations safe like two hand operation, safety guards, disc brake, safety lock etc. There is also a tool holder on rear side for convenience.

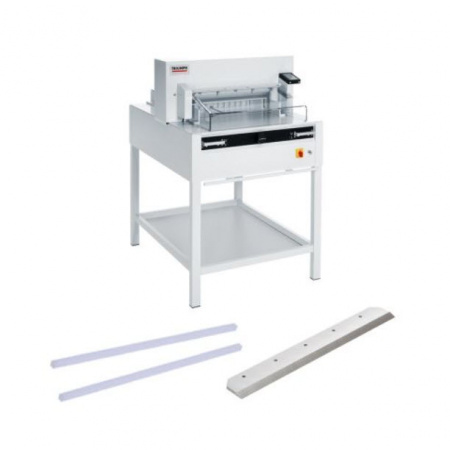

Package Includes

• A Cutter (CU0490)
• Side Tables (CU0495)
• High quality Cutting Knife (AC0658) made purely from steel
• Sticks (AC0676)

Dimensions

• Cutting height: 3 Inches
• Length behind the blade: 20 3/8 Inches
• Narrow cut: 1 3/8 Inches
• Cutting width: 20 3/8 Inches

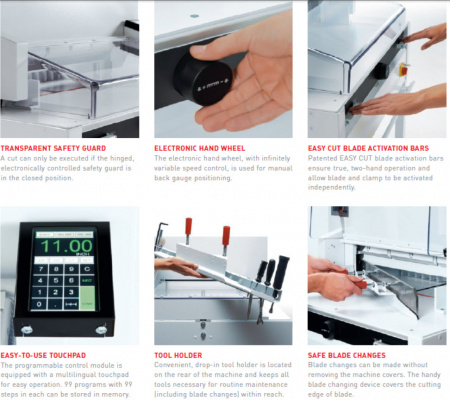

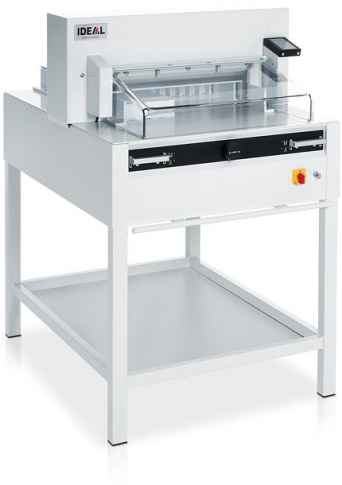

MBM Triumph 5255 Electric Paper Cutter

• Automatic programmable machine with narrow cut 1 3/8 Inches
• Cutting width and height of 20 3/8 and 3 Inches respectively

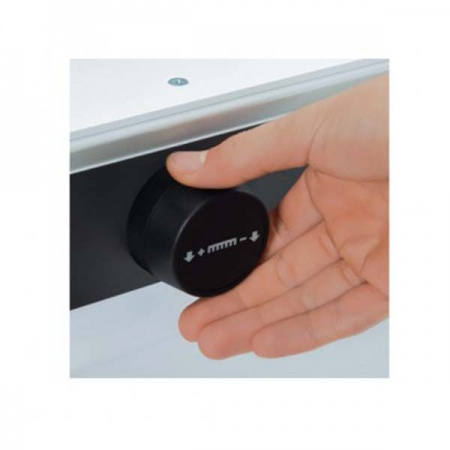

• Equipped with electronic hand wheel for manual back gauge positioning

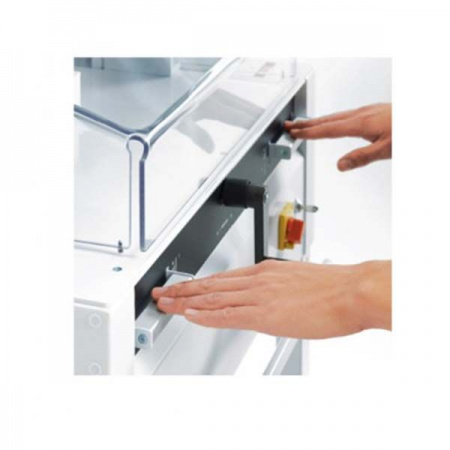

• Patented EASY CUT ensures safety with two hand operations
• To analyze exact trim marks are indicated with bright LED optical line

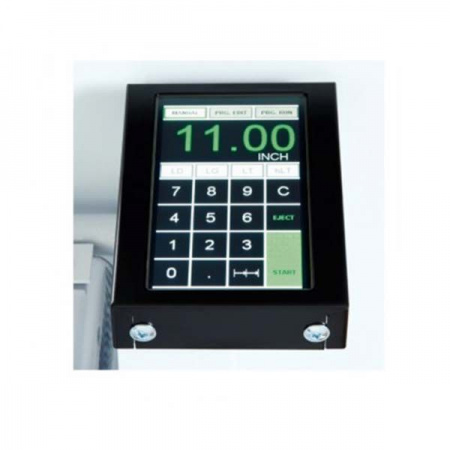

• Easy to operate keypad with 99 program storage with 99 steps each
• Assembled with a tool holder on the rear side to keep tools within reach
• Dual side guides on front and rear tables
• Dimensions of the product is 44 x 33 7/8 x 51 Inches
• Comes with 1-year limited warranty excluding wearables
• Manufactured in Germany

SPECIFICATIONS

• Dimensions (H”xW”xD”) : 51 x 34 (56.5 w/ side tables) x 44
• Length Behind Blade (Inches) : 20.37
• Narrow Cut (Inches) : 1.37
• Cutting Width (inches) : 20.37
• Sheet Capacity : 600
• Operation : Automatic Programmable
• Type of cutter : Programmable Cutter
• Cutting Height (Inches) : 3
• Blade Drive : Electric
• Paper Clamp : Automatic
• Back Gauge Setting : Electronic Hand Wheel
• Warranty : 1 year
• Country of Origin : Germany
• Power Supply (Volts) : 115v, 60Hz, 20 amp dedicated line req.
• User Type : Commercial
• Optional Accessories : Side Tables
• Applications : Print Shops, Copy Centers
• Cutting Material : Paper
• LED Laser Cut Line : No
• Safety Feature : Comprehensive SCS Safety Package
