MBM VRCUT READY TRIUMPH 5260 20 3/8 Inch Automatic Programmable w/light beam safety curtain (CU0489V)

Quantity:

Price You Pay:

$16,989.00
Yes! This Item Is In Stock!
This Item Ships For Free
Availability
Online
In Store
Same Day

Description

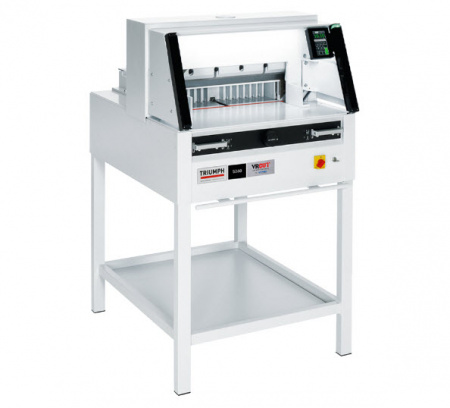

MBM VRCUT READY TRIUMPH 5260 20 3/8 Inch Automatic Programmable w/light beam safety curtain (CU0489V)


FREE FREIGHT DOCK TO DOCK

February 15 - March 31, 2021



Programmable cutter with automatic clamp, power back gauge, digital touchpad, and IR safety light beams on front table.

FEATURES

  • Cutting Width: 20 3/8 Inch (518 mm)
  • Cutting Height: 3 Inch (76 mm)
  • Length Behind Blade: 20 3/8 Inch (518 mm)
  • Narrow Cut: 1 3/8 Inch (35 mm)
  • Clamp Type: Automatic

logo

Product Details

  • Blade Material: German steel
  • Horsepower: 2
  • Electrical Requirements: 115 V. 60 Hz., 20-amp dedicated line
  • Dimensions (D x W x H): 44 x 33 7/8 x 51 Inch (1118 x 860 x 1295 mm)(56 1/2 W (1435 mm) with side tables)
  • Shipping Weight: 657 lbs. (298 Kg) (677 with side tables)

DEMO VIDEO

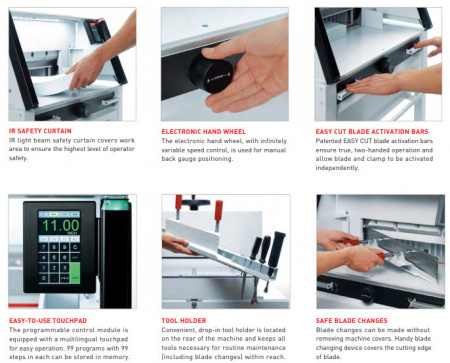

Safety Features

  • IR light beam safety curtain on the front table
  • Safety cover on rear table
  • Main switch and safety lock with key
  • 24-volt controls (low voltage)
  • Patented IDEAL safety drive
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Blade changing device covers cutting edge of the blade
  • Blade depth adjustment from outside of the machine
  • Blade and cutting stick can be changed without removing covers

Characteristics

  • Programmable cutter with automatic clamp
  • Power back gauge

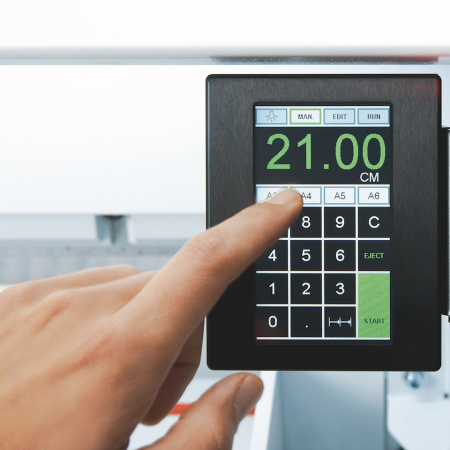

  • Digital Touchpad

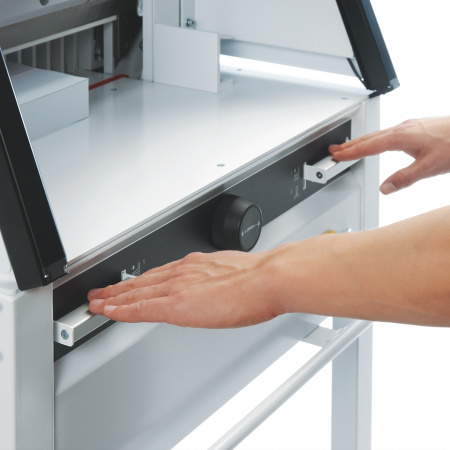

  • Patented easy cut electronic blade activation bars for true two-hand operation
  • Ergonomic, 3 Inch working height
  • Electric blade and clamp drive
  • Electric back gauge drive with touchpad for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes. Memory key for repeat cuts
  • Automatic set function for reference measurement and eject function for pushing out paper
  • Self-diagnostic system with error indication on the display

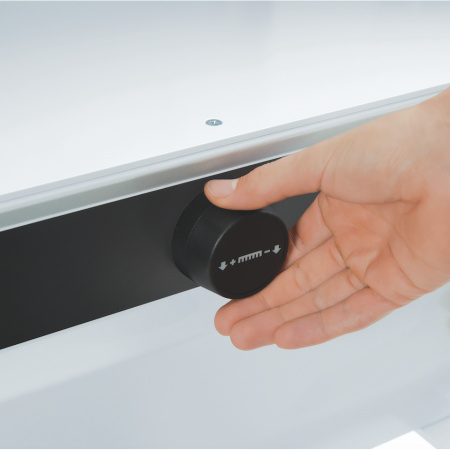

  • Electronic back gauge control with variable speed control for manual back gauge setting
  • Bright, LED optical cutting line
  • 3-step, LED front table illumination
  • Adjustable, spindle guided back gauge with narrow separations and plastic gliders
  • Dual side guides on front and rear tables
  • Solid steel blade carrier and adjustable blade guides
  • All-metal construction
  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
  • Optional side tables increase the work surface
  • UL and C UL approved

Warranty

  • 1-year limited warranty, excluding wearables




If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: CU0489V

  • Cutting Width: 20 3/8 Inch (518 mm)
  • Cutting Height: 3 Inch (76 mm)
  • Length Behind Blade: 20 3/8 Inch (518 mm)
  • Narrow Cut: 1 3/8 Inch (35 mm)
  • Clamp Type: Automatic
