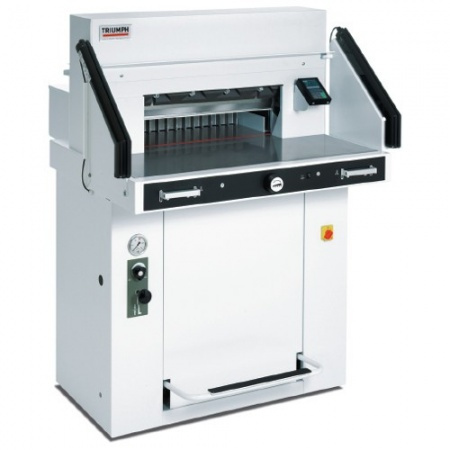

MBM Triumph 5560 21 5/8 Inch Programmable Hydraulic Trimmer (CU0493V)

Product Description

This Triumph 5560 is a 21-5/8" inch programmable paper cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad, and IR safety light beams on front table. The Triumph 5560 has a programmable control module for the power backgauge with multi-lingual touch pad, and 99 programs with 99 steps in each program can be stored. The convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance(including blade changes) within reach. Its Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently. Plus, the German high speed steel blade with swing cut movement provides the highest level of cutting accuracy. Increase your work productivity and output with this Triumph 5560 21-5/8" Programmable Hydraulic Paper Cutter.

Main Features:

• Cutting Width: 21 5/8 inch (558 mm)
• Cutting Height: 3 3/4 inch (101 mm) (3 5/8 with false clamp)
• Narrow Cut: 1 1/4 inch (38 mm) (2 3/8 with false clamp)
• Cutting Length Behind Blade: 22 7/16 inch (559 mm)
• Clamp Type: Adjustable Hydraulic

Product Details

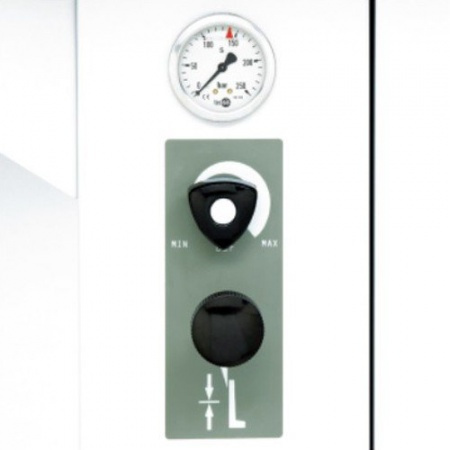

• Adjustable Hydraulic Clamp. Clamping pressure is fully adjustable between 1,900 and 3,800 psi.

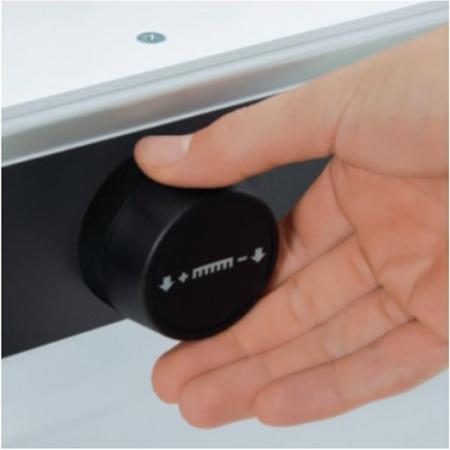

• Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.

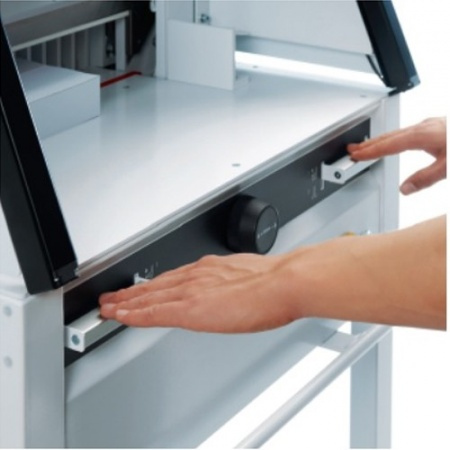

• Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

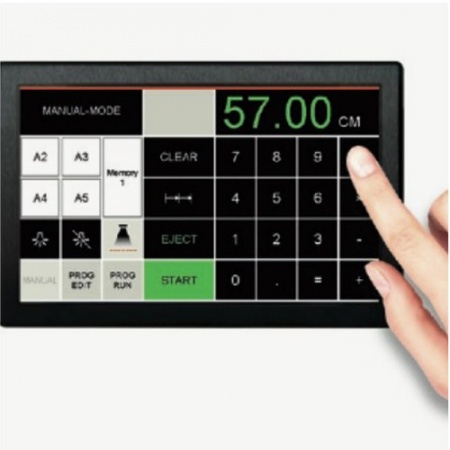

• Large 7-inch Touch Pad Extremely convenient: Programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.

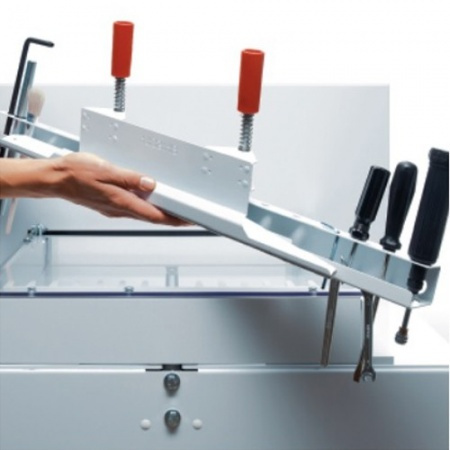

• Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
• Swing Cut Blade. The German high speed steel blade with swing cut movement provides the highest level of cutting accuracy.
• Options: Side Tables (CU0440), Cutting Knives (AC0684), Cutting Sticks (AC0678)

SPECIFICATIONS

• Type of machine: Programmable Hydraulic
• Cutting Width: 21 5/8 inch (558 mm)
• Cutting Height: 3 3/4 inch (101 mm) (3 5/8 with false clamp)
• Narrow Cut: 1 1/4 inch (38 mm) (2 3/8 with false clamp)
• Cutting Length Behind Blade: 22 7/16 inch (559 mm)
• Motor Output, Horsepower: 2
• Power Supply: 115V, 60Hz
• Dimensions (D x W x H): 55" x 42" x 54" inch (1397 x 1067 x 1372 mm) (64 W with side tables)
• Shipping Weight: 970 lbs (438 Kg) (1,008 lbs with side tables)
• Warranty: 1-year limited warranty, excluding wearables

DEMO VIDEO

Safety Features

• Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation

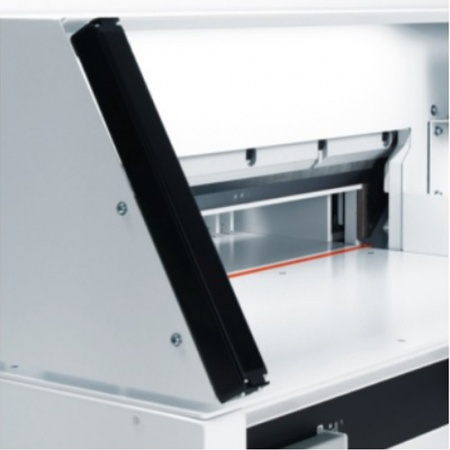

• IR light beam safety curtain on the front table
• Safety cover on rear table
• Main switch and safety lock with key
• 24-volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade and clamp return from every position
• Disc brake for instant blade stop
• Blade changing device covers cutting edge of the blade
• Blade depth adjustment from outside of the machine
• Blade and cutting stick can be changed without removing covers

Characteristics

• Programmable cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad
• Electric back gauge drive with touchpad for easy programming
• Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
• Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
• Pre-programmed for standard paper sizes
• Memory key for repeat cuts
• Automatic set function for reference measurement and eject function for pushing out paper
• Self-diagnostic system with error indication on display
• Electronic back gauge control with variable speed control for manual back gauge setting
• 5560 LT model equipped with front and rear air tables (available by special order only)
• Foot pedal for pre-clamping
• Clamp pressure is fully adjustable between 1,900 and 3,800 psi
• False clamp plate. Bright, LED optical cutting line
• Stainless steel work surface
• High quality, German HSS blade
• Precision swing cut blade movement
• Aluminum blade carrier and clamp bar
• Adjustable blade guides
• All-metal construction
• Mounted on casters
• Includes an easy-access tool holder and paper blocking tool
• Optional side tables increase the work surface
• UL and C UL approved

• 1-year limited warranty, excluding wearables
