MBM VRCUT READY TRIUMPH 7260 28-inch Automatic Programmable Hydraulic Paper Cutter Package - CU0494VP
Description
MBM VRCUT READY TRIUMPH 7260 28-inch Automatic Programmable Hydraulic Paper Cutter Package - CU0494VP
PLEASE CALL FOR A SHIPPING QUOTE.
Due to the size and weight of a Cutter and the unique delivery circumstances involved, each shipment and delivery is custom. To make entering your order for a Cutter easier, we show FREE Shipping on the site and in the Shopping Cart. After you submit your order, we'll contact you for information to calculate a precise shipping cost. We set up our Shopping Cart to gather information; you are NOT charged when you go through it. Just to let you know, we will not charge you for the Cutter or Shipping without your agreement.This MBM Triumph Hydraulic Paper Cutter Package Includes:
- MBM Triumph Hydraulic Paper Cutter
- Side tables (CU0441)
- Cutting knife (AC0657)
- Cutting sticks (AC0671)
Product Description

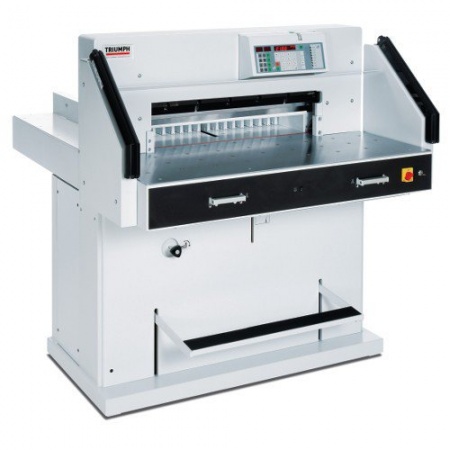

This Triumph 7260 is a 28-inch programmable paper cutter with hydraulic clamp, power back gauge, 7-inch touch pad control module, and IR safety light beams on front table. The Triumph 7260 has a programmable control module for the power back gauge with multi-lingual touch pad, and 99 programs with 99 steps in each program can be stored. The convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach. Its Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently. Plus, blade changes can be made without removing the machine covers. Increase your work productivity and output with this Triumph 7260 28" Automatic Programmable Hydraulic Paper Cutter.
Main Features:
- Type of machine: Programmable Hydraulic
- Cutting Width: 28 inch (711 mm)
- Cutting Height: 3 inch (76 mm) (3 1/2 with false clamp)
- Narrow Cut: 3/4 inch (25 mm) (2 3/8 with false clamp)
Product Details

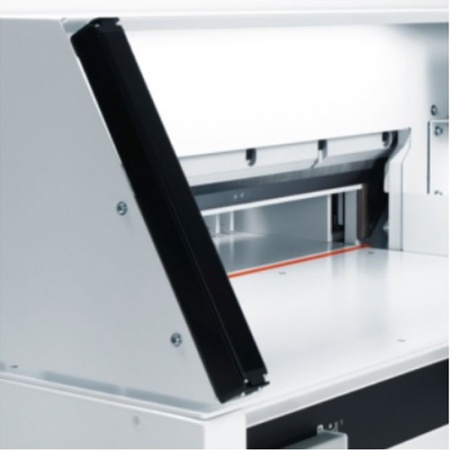

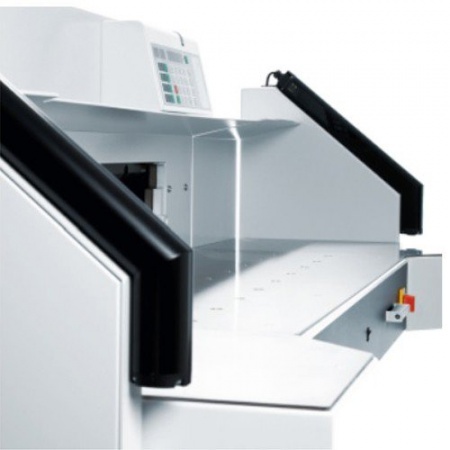

- IR Safety Curtain. The IR light beam safety curtain covers the work area to ensure the highest level of operator safety.

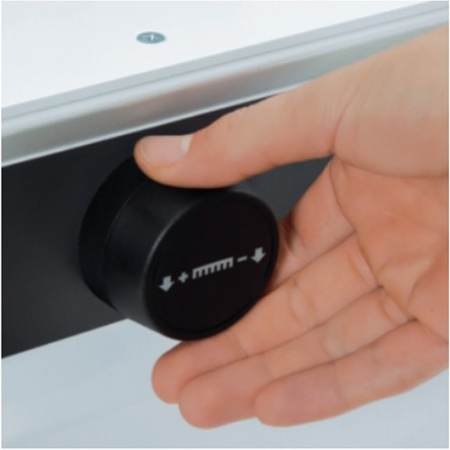

- Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.

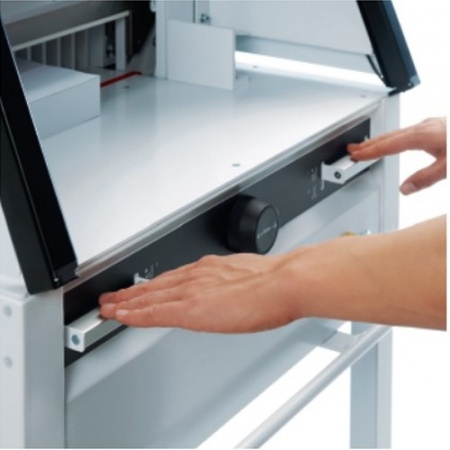

- Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

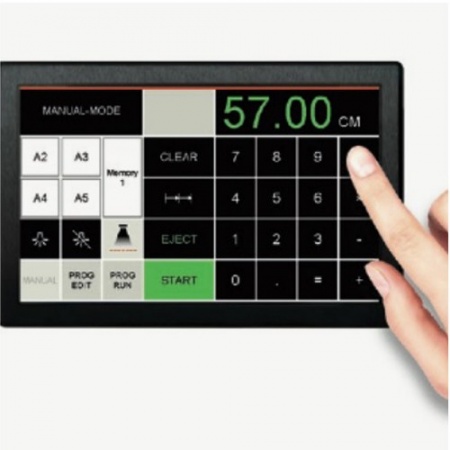

- Programmable Back Gauge The control module for the power back gauge can store 99 programs with up to 99 steps in each.

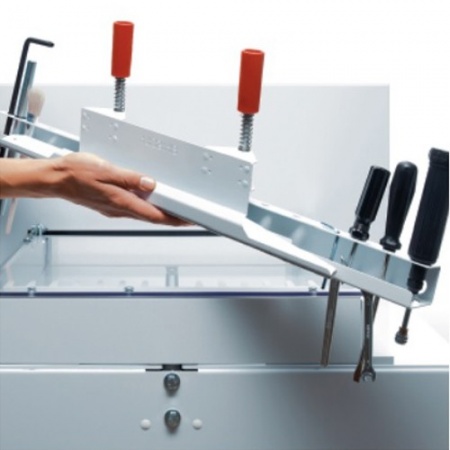

- Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
- Safe Blade Changes. Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of the blade.
- Options: Side Tables (CU0441), Cutting Knives (AC0657), Cutting Sticks (AC0671)
SPECIFICATIONS
- Type of machine: Programmable Hydraulic
- Cutting Width: 28 inch (711 mm)
- Cutting Height: 3 inch (76 mm) (3 1/2 with false clamp)
- Narrow Cut: 3/4 inch (25 mm) (2 3/8 with false clamp)
- Cutting Length Behind Blade: 28 inch (711 mm)
- Motor Output, Horsepower: 2
- Power Supply:220V, 3 phase
- Dimensions (D x W x H) : 60 1/2 x 51 3/8 x 52 1/2 inch (1537 x 1320 x 1333 mm) (63 D, 82 1/2 W with side tables)
- Shipping Weight: 1,534 lbs. (696 Kg) (1,622 lbs. with side tables)
- Warranty: 1-year limited warranty, excluding wearables
DEMO VIDEO
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | CU0494VP |
| Dimensions (LxWxH): | 61.00in. x 52.00in. x 53.00in. |
SPECIFICATIONS
| |
