Keencut SteelTrak 98 Inch (2489 mm) Vertical Substrate Cutter - ST250 (Old Part # 60383)
Description
Keencut SteelTrak 98 Inch (2489 mm) cut length capacity Vertical Substrate Cutter - ST250 (Old Part # 60383) includes 3 Cutting Tools (utility blade, acrylic blade, composite twin-wheel)

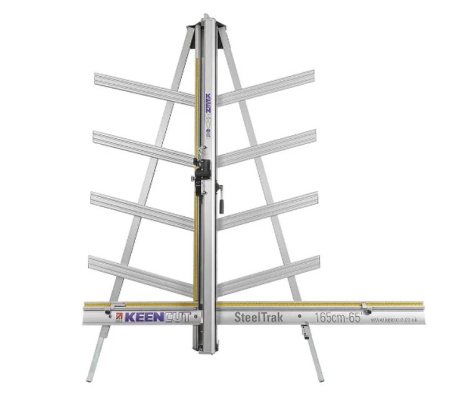

The Keencut SteeTraK sheet material cutter is a heavy-duty, ultra-strong cutter designed and purpose-built for Signmakers. This free-standing or wall-mountable device will allow you to cut glass, 4mm aluminum composite board (DiBond), and 13mm foamboard in one pass, leaving a remarkably smooth and square finish. SteelTrak includes three cutting tools - a Box of 100 medium-duty utility blades, an STC2C composite steel and aluminum twin wheel cutting tool, a Spare Sightline strip, and a Wall Mount Kit.
The Keencut SteelTrack vertical substrate cutter is designed specifically with the sign, print shop, and graphics industry in mind. Capable of cutting even the thickest of materials - up to 5mm Dibond, PVC, Glass, Acrylic, and much more, the Keencut SteelTrak cutter is perfect for businesses with heavy-duty cutting needs. Equipped with a 3-blade cutting head to easily cut a wide range of materials all on the same line, plenty of cutting options, material securing mechanisms, and more all backed by a 5-year general warranty, the Keencut SteelTrack vertical cutter is easily one of the most reliable and versatile cutters available today.
The Keencut SteelTrak makes it easy for sign makers to meet the challenge of working with ever more complex sheet materials in the modern sign industry. Cut without noise or airborne debris with the SteelTrak.
A heavier-duty alternative to the Keencut Excalibur, the SteelTrak cuts thicker, tougher materials due to its strength, versatility, safety, and ease of use. With minimal maintenance required, the SteekTrak is built to last in the toughest working conditions.
DEMO VIDEO
Product Details
- Heavy-duty construction to withstand tough use in a production environment
- Quick payback through reduced waste and cutting time
- All tools fitted and instantly selectable
- Guaranteed for 5 years
- Materials Cut:
- Rigid Materials
- Aluminum composite panel e.g Dibond 4mm (1/8 Inch)
- Steel composite panel e.g. Multishield 3mm (3/32 Inch)
- V-grooves Dibond 3mm (3/32 Inch) with optional SteelTrak v-groover
- MDF 3mm (3/32 Inch)
- Cast acrylic / Plexiglas (scoring only)? 3mm (3/32 Inch)
- Glass 6mm (1/4 Inch) with optional glass cutting kit (Product code: STGLC)
- Semi-rigid Materials
- PVC foamboard 13mm (1/2 Inch)
- Corrugated/fluted plastic 13mm (1/2 Inch)
- Corrugated cardboard 13mm (1/2 Inch)
- Foam centred board 13mm (1/2 Inch)
- Mountboard 6mm (1/4 Inch)
- Aluminium sheet 1mm (1/25 Inch) with optional cutting head ( Product code: STALC)
Features
Perfect cut every time

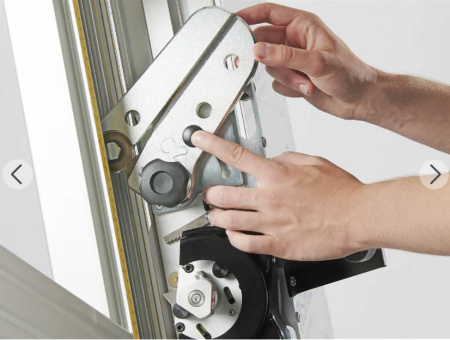

To ensure precision accuracy, the SteelTrak’s unique pressure-sensitive clamp can be first applied lightly to allow for fine adjustments, before the pressure is increased for a firm hold. The clamp is designed to protect delicate boards and printed surfaces. The sightline strip helps you achieve exact alignment and all the blades cut along the same line.Cut steel and aluminum composite safely and accurately

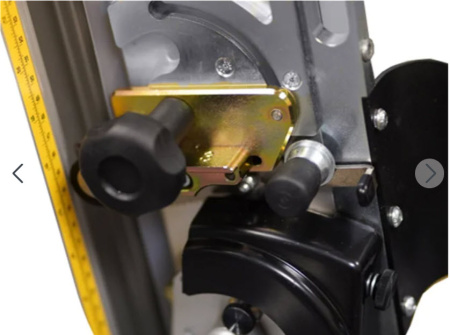

The newly developed SteelTrak C2 composite cutting head will cut steel composite panels, e.g. Multishield, and aluminum composite panels, e.g. DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimize waste. There is no need for extra edge finishing, so productivity is increased, and safety is guaranteed.Note: The SteelTrak is now supplied with the new SteelTrak C2 composite cutting head as standard. Existing SteelTrak users can purchase an upgrade from their Keencut dealer.
Saves time and money

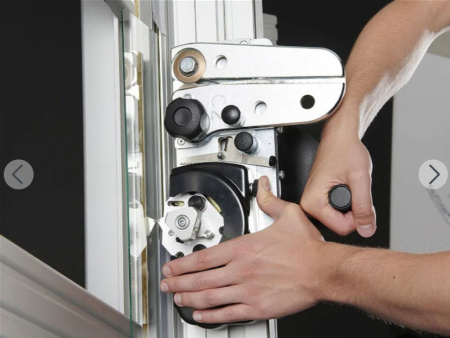

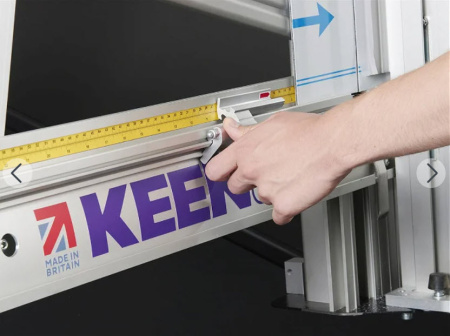

In a high-production environment, repeatable accurate cutting reduces waste and increases productivity. A pair of left and right-hand production stops and a precise squaring arm allow users to quickly cut boards to a specific measurement. Scoring and cutting blades are permanently mounted for instant use and cut along the same line. With the SteelTrak, there is no need for additional tools or finishing products.Cut and finish large sheet materials in one pass
For those who need to cut larger sheet materials, the ST250 is the perfect choice. It will cut and finish 2.4m x 1.2m (8 x 4 Inch) sheet materials in one pass. Both the ST210 and the ST250 are fitted with an extendable arm to allow easy reach to the top of the machine.Space saving and silent

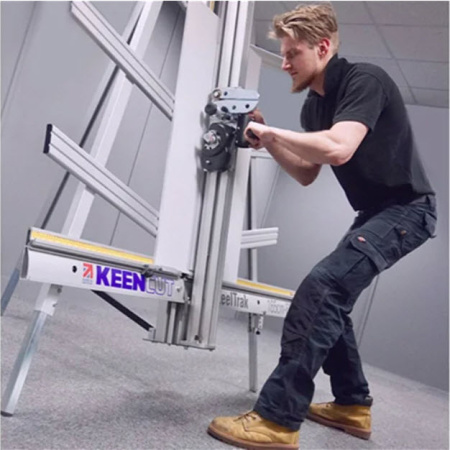

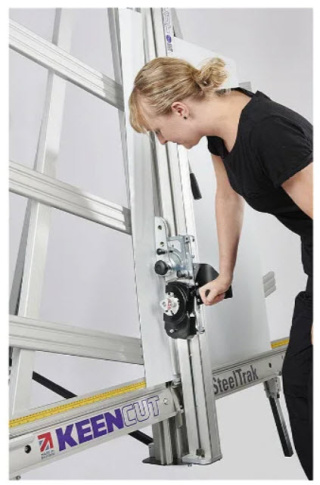

The upright structure and wall mounting feature save workshop space. The design uses your body weight to minimize the effort needed to cut tough materials. There is no noise and no need for electric power and the upright design and the low friction bearing system combined together reduce user fatigue.Sign trays and much more
With the addition of the optional V-groove tool, the SteelTrak creates perfect sign trays, self-standing displays, boxes, and exhibition stands. The V-groove tool fits directly onto the SteelTrak cutting head and is ready for action in seconds.Five-year guarantee

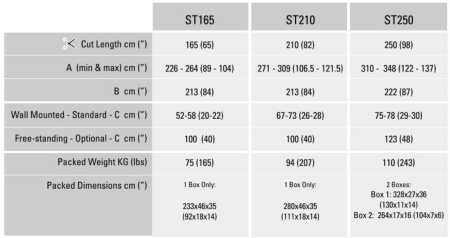

By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the SteelTrak will provide reliable long-lasting, and accurate service. All Keencut products are offered with a comprehensive five-year guarantee.Item Specifications

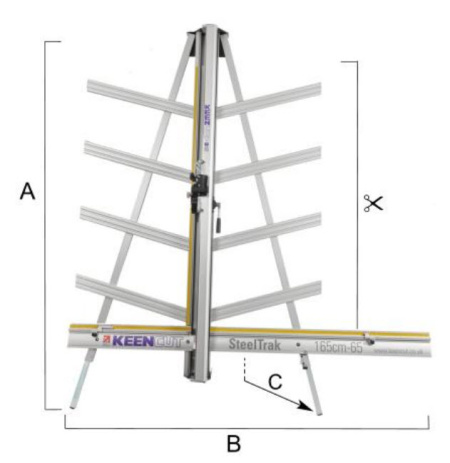

- Cut Length cm ("): 250 cm (98 Inch)
- A cm ("): 326 cm (128 Inch)
- B cm ("): 222 cm (87 Inch)
- Wall Mounted – Standard – C: 75-78 cm (29 – 30 Inch)
- Free Standing – Optional – C: 123 cm (48 Inch)
- Packed Weight: 110 kg (243 lbs.)
- Packed Dimensions cm ("): Box 1: 328 x 27 x 36cm (130 x 11 x 14 Inch) / Box 2: 264 x 17 x 16cm (104 x 7 x 6 Inch)
- Old Part Number: 60383
- New Part Number: ST250
