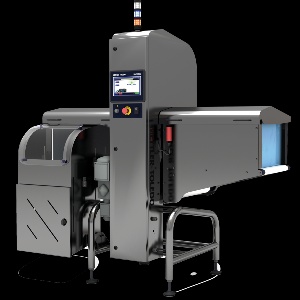

X33 Advanced X-Ray Inspection Equipment (FDA)



The X33 Series x-ray system offers outstanding contamination detection for packaged product applications, ensuring food safety, whilst the operating power is reduced up to 45%.

Developed as a result of a collaboration between Mettler-Toledo Safeline X-ray and its customers, the X33 technology is part of the X-Series of x-ray inspection systems.


To enable food manufacturers with limited factory floor space to comply with food safety standards and reduce energy consumption, Mettler-Toledo Safeline X-ray has designed the X33 Series, which is available in two lengths, 1800mm and 800mm. The X33 Series is engineered to help manufacturers simplify the installation on production lines while minimising footprint.


Combined with exceptional contamination detection sensitivity the X33 Series features innovative energy-saving generator, allowing manufacturers to reduce the operating power by up to 45%, reducing carbon footprint and lowering manufacturing costs. Thanks to enhanced detector technology, the X33 system uses a 20 watt x-ray generator rather than the 100 watt generator used in traditional x-ray machines, lowering energy consumption and reducing total cost of ownership (TCO). This overall reduced power consumption eliminates the need for a complex cooling system, minimising the system footprint, increasing installation flexibility for manufacturers with limited factory floor space.


Capable of inspecting packaged food products for contaminants, such as glass, metal fragments, calcified bone, mineral stone and high-density plastic, the machine also simultaneously performs gross mass measurement of packaged products, minimising wasteful product giveaway and enhancing efficiency. The x-ray system is ideally suited to the inspection of small and medium sized packaged products and gives food manufacturers the market-leading product inspection technology needed to guarantee superior product safety. The system has a single vertical x-ray beam and is available in 300mm or 400mm detector widths to suit a wide range of applications.


The X33 series is available in two lengths – 800mm and 1,800mm. The 800mm system was designed in response to demand from food manufacturers with limited factory floor space. The X33 series’ 800mm comes without pre-installed guards, minimising the machine’s footprint during integration. After installation, guards can be easily constructed around the detector apertures and over existing conveyors without increasing the system’s size. The 1,800mm version incorporates a reject device, as well as guards covering the in-and out-feed conveyors, which are designed to protect operatives from the x-rays generated and ensure compliance with global safety legislations.



Reduced Power Consumption
  • Utilising high sensitivity detector technology and a 20W x-ray generator, using five times less x-ray power than other x-ray systems.
    • Applications and Throughputs
  • Ideally suited for the inspection of small and medium sized packaged products, including products packaged in foil or metallised film.
    • Hygienic Design
  • Class-leading hygienic design following GMP, NFS and EHEDG principles with IP65 as standard and the option to upgrade to IP69.


    • Features and Benefits



    High Throughputs
  • Typically inspects up to 300 products per minute (depending on product dimensions, higher throughputs may be possible)


    • Optional System Size
  • The X33 Series is available in two lengths 1,800mm or 800mm, enabling manufacturers with limited factory floor space to comply with rigorous industry standards and reduce energy consumption.


    • User Friendly Interface
  • The software is sophisticated, yet simple to use; it is icon driven and features a touch and scroll interface.


    • Hygienic Design
  • Class-leading hygienic design following GMP, NFS and EHEDG principles, featuring a quick release conveyor belt.


    • Reject Bin with Large Vision Window
  • Easy setup of rejection timing and functionality inspection can be performed without stopping the production line, meaning reduced set up time is required, resulting in maximum uptime.


    • SPECIFICATIONS

    • Casing Material: 304 stainless steel
    • Conveyor Speed: Typical line speeds 10-60 m/min
    • Lane Configurations: 1 lane
    • System Lengths: 1,800mm or 800mm options
    • Cooling Method: Passive fan assisted internal cooling
    • Screen Display: 10.1” TFT (16:9 aspect ratio)
    • Operating Temperature: 5 - 40°C
    • Power Supply: 230Vac, 1 phase, 50Hz, 6A
    • Pneumatic Supply: 6 Bar(g) clean air supply required
    • X-ray Detector: 300 or 400
    • X-ray Generator: 20W, 84kV, 0.25mA Glass or optional Beryllium
    • X-ray Beams: Single
    • X-ray Emissions: < 1uSv/hr
    • Reject Type: Pusher and Airblast
    • System Conveyor: FDA and EU food use approved TPU conveyor belt



    If you have any questions or concerns, contact a customer service representative today.
    Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


    Specifications

    SPECIFICATIONS

    • Casing Material: 304 stainless steel
    • Conveyor Speed: Typical line speeds 10-60 m/min
    • Lane Configurations: 1 lane
    • System Lengths: 1,800mm or 800mm options
    • Cooling Method: Passive fan assisted internal cooling
    • Screen Display: 10.1” TFT (16:9 aspect ratio)
    • Operating Temperature: 5 - 40°C
    • Power Supply: 230Vac, 1 phase, 50Hz, 6A
    • Pneumatic Supply: 6 Bar(g) clean air supply required
    • X-ray Detector: 300 or 400
    • X-ray Generator: 20W, 84kV, 0.25mA Glass or optional Beryllium
    • X-ray Beams: Single
    • X-ray Emissions: < 1uSv/hr
    • Reject Type: Pusher and Airblast
    • System Conveyor: FDA and EU food use approved TPU conveyor belt
