Description

X-Ray Inspection Equipment | MEKI C Food X-Ray Inspection

X-ray inspection enables food producers to detect multiple hazardous foreign bodies and quality defects (such as missing pieces or broken products) from their food production. X-ray inspection can prevent costly product recalls and reduce the number of reclamations, making sure that only the safest and high-quality products reach consumers.

When establishing product safety and control plan (HACCP or HARCP) and for obtaining third-party food safety certifications, such as BRC, SQF, and IFS, food producers need to implement in-line inspection systems to fulfill the safety requirements.

SMOOTH PRODUCTION FLOW AND SUPERIOR DETECTION PERFORMANCE
Certain food industries and packages are more demanding when it comes to the quality of the production. For example, food products packaged in a cup can be problematic when inspected by using conventional X-ray inspection systems with protective lead curtains that could disturb the product flow and cause products to move or fall. Keeping this in mind, we have designed new curtain-free X-ray system, MEKI™ C.

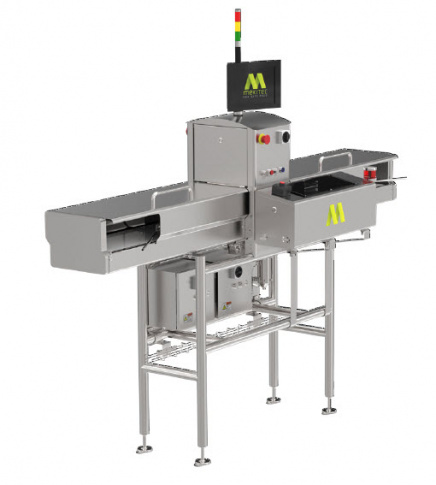

Curtainless MEKI™ C system offers food producers an easy-to-clean, convenient and carefree product inspection with less wearing parts and easier system maintenance. The system ensures a smooth product flow, and emphasizes cup-friendly product transfers, guides, and rejection, making the inspection a seamless part of the production process.

MEKI™ C is equipped with integrated product rejection and reject confirmation, sensors, as well as automatic system reporting. All in one complete package to ensure that the food producers get the best value from their Critical Control Point.

FEATURES

• X-Ray Power: 100W
• Detection Area: 9.5 W x 4.1 H Inch (406 x 203 mm)
• Conveyor Speed: 192 ft/min
• Operating System: Windows 10
• HMI: 12 Inch Color TFT LCD Screen
• Material: Stainless Steel, brushed

SPECIFICATIONS

• Detection area (W x H) : 9.5” x 4.3” (240mm x 110mm)*
• Conveyor speed : min. 0.3 ft/s (0.1 m/s) max. 3.2 ft/s (1.0 m/s)
• X-ray power : 30-60 kV, 0.2–2.5 mA, max 100 W
• X-ray leakage : less than 1 ?Sv/h
• Detector : Linear scanner, resolution 0.4 mm
• Software : Mekitec X-Ray Inspection System SW
• Operating system : Windows 10
• Connectivity : USB, Ethernet
• HMI : 12” Color TFT LCD Screen
• Operation temperature : 0–35° C ambient
• Cooling : Optional air conditioner
• IP : rating IP54
• Relative humidity : 30-85%, non-condensing
• System power supply : 110/240 VAC, 50–60 Hz
• Dimensions (W x D x H) : 100” x 28” x 79” (2560 x 715 x 2000 mm)
• Weight : 507 lbs (230 kg)
• Material : Stainless steel, brushed
• Reject Integrated : air reject with bin and standard reject confirmation
• Options : Hand sensors** and full reject confirmation
• System conveyor : EU and FDA food use approved conveyor belt
• Radiation protection : EN 61010-02-091, FDA CFR 21 part 1020, 40
• Safety switches : Safety circuit CAT 3, Performance Level PL d

DEMO VIDEO
