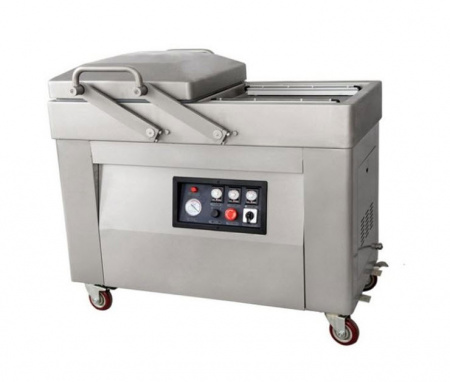

Vacuum Packaging | PP-510HVC-S2B Double (Two) Chambers Vacuum Packaging Machine with 2 Seal Bars in Each Chamber

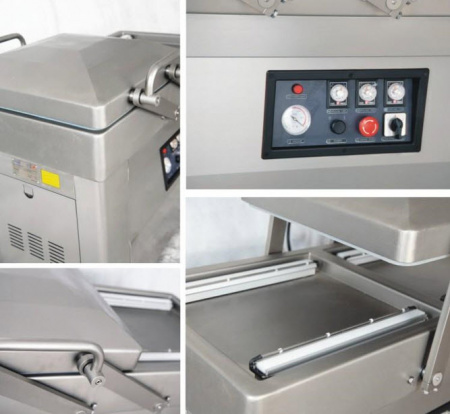

Model PP-510HVC-S2B Double Chamber Vacuum Packaging Machine. The PP-510HVC-S2B has been specifically designed for economical single-operator efficiency. This unit has 2 spacious chambers and 2 sealing bars in each chamber to accommodate higher volumes and larger products. You can load and prep one chamber while the other chamber is being sealed. The operator simply places the product on one side of the chamber to load then swivels the chamber to the other side and once the chamber closes it automatically starts to pull the vacuum and then seal the bag, while this process is taking place the operator can load the other side of the chamber then swivel the hood to the other side to start the vacuum and seal cycle over again.

FEATURES

• #304 Stainless Steel Construction
• Seal area 20 L x 17 W x 6 H Inch
• Flat Chamber for Easy Cleaning
• Water Resistant Control Panel
• Sealing begins as soon as the lid is closed
• 20 Programs with Oil Indicator
• 10 mm Wide Seals
• Bladder Activated Sealing
• Tilted surface prevents water pooling
• Heavy Duty Casters
• Overload Warning Indicator
• Oil Change Indicator
• Busch 3 HP Vacuum Pump
• Optional Feature: Upgrade to 5 HP Bush Vacuuum Pump
• Optional Feature: Automatic lid closing function-Increase cycle speeds and saves on labor time.
• Optional Feature: Gas Flush
• Warranty: 1 Year on Parts, 2 Years on Bush Pumps

SPECIFICATIONS

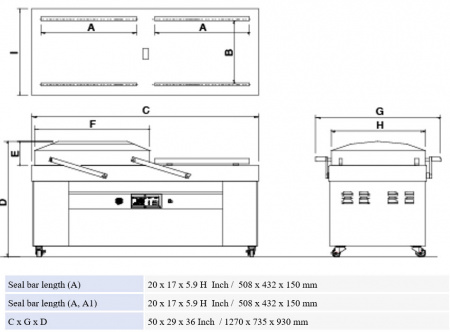

• Chamber size (F): 24 Inch/610 mm(F)
• Chamber size (H): 21.6 Inch/550 mm (H)
• Chamber depth (E): 5.9 Inch/150 mm
• Distance between seal bars (B): 21 Inch(685 mm)
• Seal bar length (A): 20 x 17 x 5.9 H Inch (508 x 432 x 150 mm)
• Seal bar length (A, A1): 20 x 17 x 5.9 H Inch (508 x 432 x 150 mm)
• Vacuum pump capacity : 100m3/h (3hp4kw)
• Voltage: 220V/1ph/60Hz/15amp
• C x G x D : 1270 x 735 x 930 mm (50 x 29 x 37 Inch)
• Machine weight : 506 lbs. /230 kg
• Machine size - L x W x H: 50 x 29 x 37 Inch (1270 x 735 x 930 mm)

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
