Description

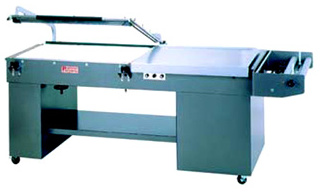

SHRINKWRAP MACHINE | Preferred Pack PP-3040WA-V-P.I. Semi-Automatic L’Sealers Wire- Air Operated-Vertical seal head with 12 Inch opening

Semi-Automatic L’ Sealer with magnet clamping, powered takeaway conveyor, cylinder arm return, “Micro Knife” seal system standard, stainless steel compensator assembly, automatic cycle timing, pin perf, Stainless steel film clamps, casters.

Preferred Pack manufactures a complete line of Semi-Automatic L-Bar Sealers, available in a range of sealing capacities to meet any package size. Designed for medium volume production, these machines are capable of sealing up to 20 packages per minute. Three models are available, with seal ranges from 16 x 22 up to 30 x 40 Inch, use the L-Bar Sealer to seal bags or add a shrink tunnel to create a complete packaging system, able to produce a variety of sizes of shrink wrap packages.

Model's PP1622 & PP2028 are available either with a Micro Knife seal system or nichrome wire sealer, the PP3040 models are available as a nichrome wire sealer only. The Micro Knife band ribbon reduces down time virtually eliminating broken seal wires. They are teflon coated produces fast, clean seals every time. A stainless steel compensator assembly controls “Micro Knife” temperature.

All three models come standard with the sealing bar being closed manually with automatic opening controled with the magnetic hold down cycle. To increase packaging speed, the pnuematic air powered seal bars models offer a push button control to automatically close the seal bar or the unit can be set with a timed cycle speed for hands free operation.

FEATURES

• Dual push button pneumatic powered seal head for operator safety;
• Vertical seal head movement for easy product loading;
• Manual or Automatic cycle mode;
• Automatic cycle switch, allows operator to select cycle repeat time for seal head to automatically cycle increasing cycle speeds;
• Independent seal, dwell and cycle timing intervals;
• Powered discharge conveyor to automatically transfer product into shrink tunnel;
• Stainless Steel film clamps apply pressure to film to ensure strong seals every time;
• Heavy duty steel frame construction with powder coated finish;
• Wire seal system with laminate strips under wire;
• 3 sets of Pin perf hole punch wheels for air evacuation;
• Independent seal and dwell timer;
• Stainless Steel compensator assembly;
• Seal head safety switches if activated head returns to up position;
• Powered film unwind – automatically drives film roll when pulled
by operator;
• Adjustable film inverting head, turns film 90 degrees allowing packages to be feed directly into machine in-line speeding up package flow;
• Air operated seal head with “Vertical” seal head movement up to 20” tall;
• Heavy duty locking casters;
• Heavy duty seal head return cylinder;
• Air regulator with built-in lubricator.

SPECIFICATIONS

• Machine Dimensions (L x W x H): 101 L x 41 W x 44 H Inch
• Shipping Weight:950 lbs.
• Power: 220 Volt, 1 Phase, 30 Amps
• Air3 CFM at 60 PSI
• Warranty2 year on parts
