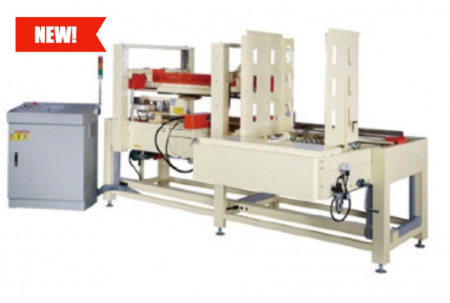

Carton Sealers | Excel PP-548ERS Horizontal Case Erector and Bottom Sealer
Description
Carton Sealers | Excel PP-548ERS Horizontal Case Erector and Bottom Sealer
FEATURES
- Min/Max Case Size: L 12-25 x W8-24 x H7-24 Inch
- HMI Touch screen control panel
- Forms, folds & seals 8-1 0 cases per minute
- Automatic and manual modes
- Equipped with detection for no tape, tape sealing failure & tape cutting failure
- Indexing conveyor moves boxes through the carton erector to completion
- 60-65 piece magazine hopper
- Can run 2 or 3 Inch tape.
- Quick product changeover in less than 1 0 minutes with "no tools required"
- Mitsubishi PLC controls all machine functions
- Belt speed of 20M/Minute or 64ft per minute
- Safety fencing (Aluminum frame with acrylic windows)
- Emergency stop switch
SPECIFICATIONS
- Electrical : 220 volt 3 Phase, 8 amp
- Air : 80 PSI at 7 CFM
- Hopper Capacity : 50/60 cases (200 Lb test)
- Working Height : 24 to 25.5 Inch
- Weight : 2,450 lbs
- Dimensions (LxWxH) : 124 X 71 X 70 Inch
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | PP-548ERS |
| Dimensions (LxWxH): | 124.00in. x 71.00in. x 70.00in. |
SPECIFICATIONS
| |
