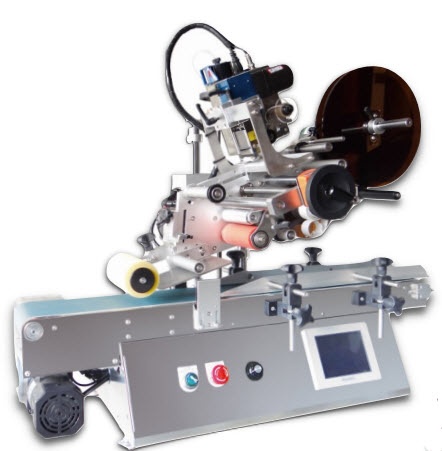

Labeling Machines | Preferred Pack PP-510XL-8 Tabletop Top Labeling Machine

A tabletop top label machine designed to apply labels onto the top of products.

LABEL TYPE Bag

Designed to apply pressure sensitive labels onto the top of products.

• 304 stainless steel & anodized aluminum
• Delta PLC Touchscreen HMI control system
• Height-adjustable applicator
• Precise stepper motor label positioning
• 83 program memory
• Product counter
• Missing label feature
• Uses Pressure Sensitive Label Rolls
• Casters

PORTABLE DESIGN
The PP-510XL-8 can be moved easily, so you can set up exactly where you like. It can be positioned on a tabletop or bench, or moved in-line for automatic or semi-automatic applications convenience not found with heavier, more elaborate labeling machines.

SIMPLE TO USE
With our advanced sensors, the PP-510 delivers optimal efficiency. Hand wheels provide simple adjustments, enable quick set-up and easy changeover. The numbered metering system allows operator to set machine in the exact position required for the label being set up - no guess-work required.

EASY TO MAINTAIN
The PP-510XL is made of 304 Stainless Steel and Anodized Aluminum, and carefully treated to guard against the effects of harsher environments. Additionally, its simplistic design enables quick fixes and easy adjustments. Given this durability and easy maintenance, the PP-510XL affords you a solid choice in labeling machine longevity.

SPECIFICATIONS

• Dimensions L-W- H: 43.3 x 20 x 35 Inch (1100mm x 508mm x 889mm)
• Maximum Label Size: 8 x 11.8 Inch (240mm x 300mm)
• Maximum Container Height: 4.75 Inch (Flat 120mm) (without pressure rollers)
• Conveyor Width: 11.4 Inch
• Voltage: 110 VAC 50 HZ 1 Phase
• Power in KW: 400
• Drive: 2 Phase Stepper Motor
• NET WEIGHT Approx 132 lbs (60 kgs)

Flexibility

• The PP-510 is standard Delta Touchscreen with 10 program memory can be effortlessly adjusted for various labeling applications. And, with the manual position setting, your labels are placed accurately on the product, each and every time.
• It's easy to upgrade the PP-510 to activate hot-stamp ribbon. This integrated feature simplifies label customization and allows the hotstamp ribbon to work in sync with the labeler to ensure accurate code placement.
• Thanks to the user-friendly Delta HMI operating interface, changing to different labeling applications for various product sizes and types can be done simply and quickly.

Productivity

• A production preset function means the machine automatically stops once the predetermined quantity of products has been labeled.
• The label count feature lets you precisely track progress at any point during the production run.
• The container/production run counter lets you see the exact production number for the day.
• The PP-510 features a Delta PLC and Touchscreen control system that maintains default settings and memory even after the machine sits idle for a long period of time. Up to ten settings can be stored for future use, so you don’t have to waste time re-entering the necessary information.

Accuracy

• The PP-510's stepper motor essentially counts the steps necessary to reach the next label, ensuring fast, accurate label delivery.
• The PP-510's controls are fully synchronized, ensuring that all components run at the same speed.

Practicality

• The PP-510 can be easily and conveniently moved to other production areas, allowing for changes in production or products.
• The PP-510 is easy to work on and to adjust, putting everything you need at your fingertips with the removal of just a few screws.
• All of our labelers are made of 304 stainless steel and anodized aluminum. This extremely durable metal is specially treated to guard against rusting and other effects from harsher environments.

Compliance

• All of our labelers are manufactured in compliance with Good Manufacturing Practices (GMP) standards.
