Description

NELEO 50 Semi-Automatic Spiral Wrapping Machines

Semiautomatic machine for horizontal packaging with stretchfilm
The Neleo Range of semi-automatic spiral wrapping machines boasts some of the industry's most impressive features. With low power consumption and incredible wrapping speeds, these machines are perfect for all types of industries.

• Compact Design to be easily placed in your current packing operation, increasing efficiency.
• Safer, faster, and more efficient alternative to lay flat tubing and shrink-wrapping film.
• Ideal for use across all industries including; Logistics, Construction, Timber & Automotive.
• A large range of optional accessories is also available such as; Automatic Film Cutter, Infeed & Outfeed Rollers, and Braked Castors.

Spiral wrapping machines are an excellent development in the packaging world and the benefits of using the Neleo range are continually increasing. These versatile and compact machines are the perfect addition to any packing line, allowing you to wrap and protect your goods in a very efficient and effective way.

The Neleo machines, also known as “orbital wrappers” from Plasticband, use a semi-automatic operation and allow the user to fully control the wrapping process. This means that if more film needs to be applied to certain areas of the product, such as the ends, this can be done by simply adjusting the wrapping speed or just moving the product slower through the machine.

Key Benefits of the NELEO Spiral Wrapping Machine Range

• Efficient, effective, and economical ways to protect long and awkwardly shaped products.
• Relatively low power consumption with 240V Plug, minimal setup required.
• Reduce the range of packaging material you use as the film can be applied to random shape products.
• Uses Omegatech Superpower 330 spiral wrapping film, a fully recyclable, high-strength film that provides optimum security
• Printed film for increased brand awareness or a Paper & Film combination can easily be applied.
• Bubble wrap can also be loosely placed on the product and then wrapped tight as the product passes through the machine, offering more impact resistance.
• Also, 160 With Bubble DispenserVery neat application of film and offers excellent presentation.
• Many accessories are available that integrate seamlessly with the machine to make the machine and packing line even more versatile and efficient.
• A very intuitive control panel, film tension, and speed adjustment make the machines very user-friendly for operators of all nationalities.

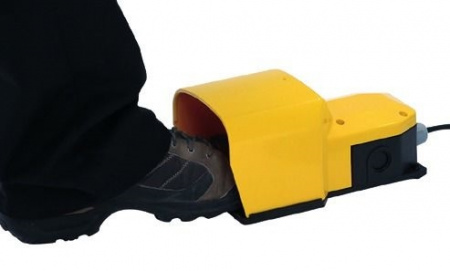

• Footswitch-operated machines with extra safety features added to reduce the risk of injury or damage.
• The high-strength film provides excellent protection and security for the products.
• Compact design with a reduced footprint for easy installation into your current packing operation.
• The double film head carries two rolls of film, creating unrivaled wrapping times without having to increase the speed of the ring to an unsafe speed. This also reduces machine downtime due to fewer roll changes.
• All these orbital wrapping machines are made in Europe by Plasticband and are all CE-marked.

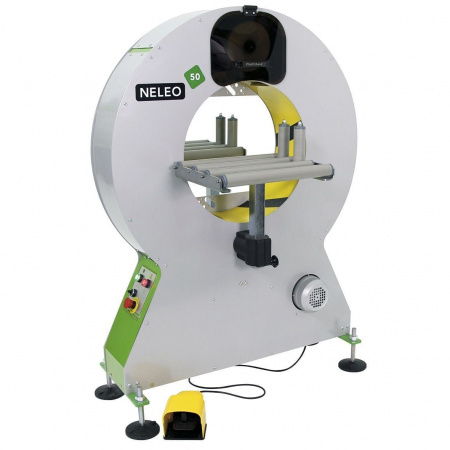

The Neleo 50 is the perfect machine for industries wrapping narrow and long packages.

With a wrapping diameter of 500mm, this machine is simple, fast, and easy to use and will revolutionize the way products are wrapped.

The Neleo 50 is designed to wrap:

• Moldings
• Aluminum and UPVC Profiles
• Blinds
• Shelves
• Kit Furniture.

Optional Extras Include:
Compressed Air Double cutting System, Roller Conveyors, Vertical Side Conveyors, Short Products Bridge

Technical specifications:

• Product to wrap sizes:

• Maximum/minimum length: no limit / 250mm or 150 mm with short product bridge.
• Width and height: Check with the graphic.

• Electrical equipment:

• Power: 230V I.
• Engine: 0,4 kW
• Manoeuvre: 24V c.c.
• Power consumption: 0,26 kW
• Ring rotation speed: from 5 to 150 rpm.
• Speed inverter: Omron.
• PLC: Omron.
• Pneumatic pressure: 6 bars (for configuration with the cutting system).
• Compressed air consumption: 3 liters/cycle (for configuration with the cutting system).

• Stretchfilm or paper* reel specifications:

• Width: 100 mm.
• Thickness: 17, 20, 23, or 30 microns.
• External / Internal Ø: 200 / 38 mm.
• Colour: Transparent/opaque.(*) Only for configuration without cutting system.

• Installed machine sizes: Check the attached drawing.
• Packed machine sizes: 1,20 x 0,80 x 1,65 m - 150 Kg.
• Packed film reels sizes: 1,00 x 1,20 x 1,97 m - 915 Kg.
