Description

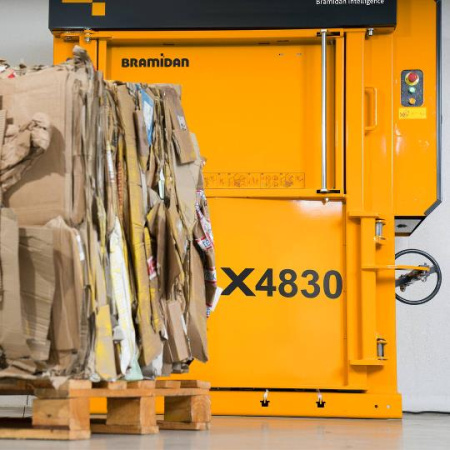

Bramidan Baler X4830 Vertical Baler

Due to the compact design, the X4830 baler can fit in areas with limited space. It also allows for very easy installation.

To Find the Correct Baler Strapping and Wire for a Baler, See the Compatible Baling Strapping and Wire Chart Below. To order click on the ACCESSORIES TAB above.

FEATURES

• For many different recyclables
• Low overall height
• High press force
• Very low noise level
• High speed and high efficiency
• Powder Coating provides durable finish in many colors

NOTE:- It is Powder Coating, Not Paint. Bramidan Yellow at no extra cost. Other colors can be ordered at an additional cost.

Durable machine with superior press force
Strong cross cylinders provide a superior press force that allows for quick compaction of large volumes of heavy-duty waste.

Fits in tight spaces
The low overall height of just under 79 inches permits the baler to fit in tight spaces that have height restrictions. Easily install the X4830 anywhere you'd like.

Bramidan Balers

Bramidan Baler B4
Bramidan Baler B5W
Bramidan Baler X10 1ph HD X-Series
Bramidan Baler X10 3ph HD X-Series
Bramidan Baler PC24 HD
Bramidan Baler B20
Bramidan Baler X25 HD
Bramidan Baler X25 HD Galvanized
Bramidan Baler X4830
Bramidan Baler X30 HD
Bramidan Baler X30 HD Galvanized
Bramidan Baler B6030
Bramidan Baler X6030 LP
Bramidan Baler B7242 SD
Bramidan Drum Press DP16
Bramidan Baler X50 HD

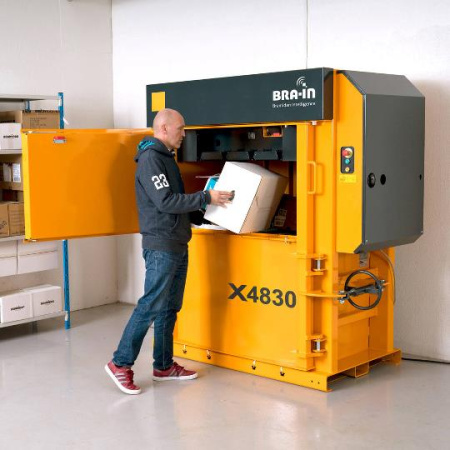

How does the X4830 baler work?

Time-saving and easy waste handling

1. Fill your plastic or cardboard waste into the baler.
2. A full-light indicator tells you when the chamber is full.

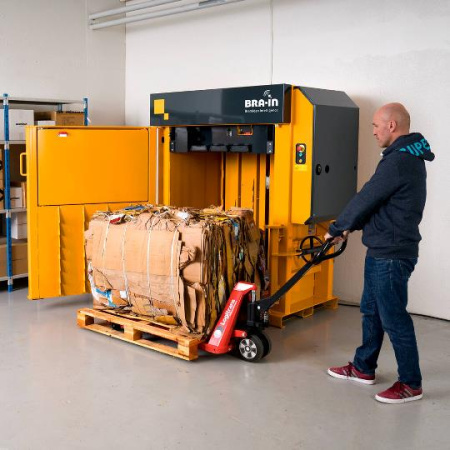

3. Tie off and eject the finished bale.
4. Remove the bale and store until collection.

Optional Extras

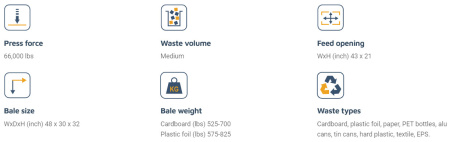

SPECIFICATIONS

• Bale weight cardboard (lbs): 525-700
• Bale weight plastic foil (lbs): 575-825
• Bale size WxDxH (inch): 48 x 30 x 32
• Press force (lbs): 66,000
• Power supply: 208/230/480V 3-phase 60Hz
• Motor (HP): 5.5
• Noise Level (dB): 59-60
• Cycle time avg. (sec): 28

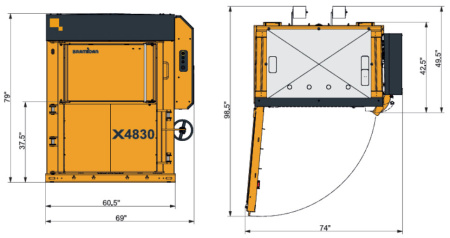

• Dimensions WxDxH (inch): 69 x 50 x 79
• Weight (lbs): 3,200
• Feed opening WxH (inch): 43 x 21
• Load height (inch): 49
• Chamber height (inch): 54
• Stroke (inch) : 37
• Number of ties: 4
• Type of tying : Twine / Steel wire
• Full bale light: Yes
• Bale eject: Automatic

Compatible Baling Strapping and Wire

If you have any questions or concerns, contact a customer service representative today.
